Overview​

The World Query Module enables you to place objects on real-world surfaces instantly and accurately. This lightweight solution is specifically designed for Spectacles' wearable platform.

Why Use World Query?​

Traditional surface detection APIs like hitTestWorldMesh or DepthTexture.sampleDepthAtPoint can be computationally expensive for wearable devices. The World Query Module provides:

  • Instant placement: Fast hit testing for real surfaces
  • Lightweight performance: Optimized for wearable devices
  • Surface analysis: Depth and normal sampling at specific locations
  • Smoothing options: Results can be smoothed across multiple hits

How It Works​

The World Query Hit Test performs ray casting against real surfaces by:

  1. Computing a depth map for the current view
  2. Intersecting the ray with depth data to find hit points
  3. Determining surface position and normal vectors
  4. Returning null if the ray falls outside the field of view

Performance Limitation

Due to the low, 5Hz update rate of the underlying depth data, the hit test works only for static or slowly moving objects. Consider use cases accordingly.

Basic Surface Placement​

Setup Requirements​

Before implementing World Query, ensure you have:

  1. Project configured for Spectacles with Interactive Preview enabled
  2. Spectacles Interaction Kit imported and initialized
  3. A target object to place on surfaces

Implementation Steps​

Follow these steps to implement basic surface placement using the WorldQueryHit API:

Step 1: Create a new TypeScript file with the required imports

Step 2: Set up the hit test session with filtering options

Step 3: Handle hit test results and object placement

Step 4: Configure user interaction for spawning objects

Complete Example​

// import required modules
const Interactor = require('SpectaclesInteractionKit.lspkg/Core/Interactor/Interactor');
const InteractorTriggerType = Interactor.InteractorTriggerType;
const InteractorInputType = Interactor.InteractorInputType;
const { SIK } = require('SpectaclesInteractionKit.lspkg/SIK');

const WorldQueryModule = require('LensStudio:WorldQueryModule');
const EPSILON = 0.01;

//@input int indexToSpawn
//@input SceneObject targetObject
//@input SceneObject[] objectsToSpawn
//@input bool filterEnabled

function WorldQueryHitExample() {
  // Private variables
  var primaryInteractor;
  var hitTestSession;
  var transform;
  var lastHitResult; // Store last hit result for trigger end callback

  function onAwake() {
    // create new hit session
    hitTestSession = createHitTestSession(script.filterEnabled);
    if (!script.sceneObject) {
      print('Please set Target Object input');
      return;
    }
    transform = script.targetObject.getTransform();
    // disable target object when surface is not detected
    script.targetObject.enabled = false;
    setObjectEnabled(script.indexToSpawn);

    // Set up trigger end callback
    setupTriggerEndCallback();

    // create update event
    script.createEvent('UpdateEvent').bind(onUpdate);
  }

  function setupTriggerEndCallback() {
    // Get all interactors and set up trigger end callbacks
    var allInteractors = SIK.InteractionManager.getInteractorsByType(
      InteractorInputType.All
    );

    for (var i = 0; i < allInteractors.length; i++) {
      var interactor = allInteractors[i];
      interactor.onTriggerEnd.add(
        (function (currentInteractor) {
          return function () {
            // Only place object if we have a valid hit result and this is the primary interactor
            if (lastHitResult && primaryInteractor === currentInteractor) {
              placeObject();
            }
          };
        })(interactor)
      );
    }
  }

  function placeObject() {
    if (!lastHitResult) return;

    // Copy the plane/axis object
    var parent = script.objectsToSpawn[script.indexToSpawn].getParent();
    var newObject = parent.copyWholeHierarchy(
      script.objectsToSpawn[script.indexToSpawn]
    );
    newObject.setParentPreserveWorldTransform(null);

    // Set position and rotation from last hit
    var hitPosition = lastHitResult.position;
    var hitNormal = lastHitResult.normal;

    var lookDirection;
    if (1 - Math.abs(hitNormal.normalize().dot(vec3.up())) < EPSILON) {
      lookDirection = vec3.forward();
    } else {
      lookDirection = hitNormal.cross(vec3.up());
    }

    var toRotation = quat.lookAt(lookDirection, hitNormal);
    newObject.getTransform().setWorldPosition(hitPosition);
    newObject.getTransform().setWorldRotation(toRotation);
  }

  function createHitTestSession(filterEnabled) {
    // create hit test session with options
    var options = HitTestSessionOptions.create();
    options.filter = filterEnabled;

    var session = WorldQueryModule.createHitTestSessionWithOptions(options);
    return session;
  }

  function onHitTestResult(results) {
    if (results === null) {
      script.targetObject.enabled = false;
      lastHitResult = null;
    } else {
      script.targetObject.enabled = true;
      // Store hit result for potential trigger end callback
      lastHitResult = results;

      // get hit information
      var hitPosition = results.position;
      var hitNormal = results.normal;

      //identifying the direction the object should look at based on the normal of the hit location.

      var lookDirection;
      if (1 - Math.abs(hitNormal.normalize().dot(vec3.up())) < EPSILON) {
        lookDirection = vec3.forward();
      } else {
        lookDirection = hitNormal.cross(vec3.up());
      }

      var toRotation = quat.lookAt(lookDirection, hitNormal);
      //set position and rotation
      script.targetObject.getTransform().setWorldPosition(hitPosition);
      script.targetObject.getTransform().setWorldRotation(toRotation);
    }
  }

  function onUpdate() {
    primaryInteractor =
      SIK.InteractionManager.getTargetingInteractors().shift();
    if (
      primaryInteractor &&
      primaryInteractor.isActive() &&
      primaryInteractor.isTargeting()
    ) {
      var rayStartOffset = new vec3(
        primaryInteractor.startPoint.x,
        primaryInteractor.startPoint.y,
        primaryInteractor.startPoint.z + 30
      );
      var rayStart = rayStartOffset;
      var rayEnd = primaryInteractor.endPoint;

      hitTestSession.hitTest(rayStart, rayEnd, onHitTestResult);
    } else {
      script.targetObject.enabled = false;
    }
  }

  function setObjectIndex(i) {
    script.indexToSpawn = i;
  }

  function setObjectEnabled(indexToEnable) {
    for (var i = 0; i < script.objectsToSpawn.length; i++) {
      script.objectsToSpawn[i].enabled = i == indexToEnable;
    }
  }

  // Initialize
  onAwake();

  // Expose public methods
  script.setObjectIndex = setObjectIndex;
  script.setObjectEnabled = setObjectEnabled;
}

// Register and initialize the script
script.WorldQueryHitExample = WorldQueryHitExample;
WorldQueryHitExample();

Integration Steps​

  1. Save the script and add it to your scene
  2. Create a target object to place on surfaces
  3. Set the Target Object input in the script component
  4. Test in preview by moving the mouse and tapping, or send to Connected Spectacles

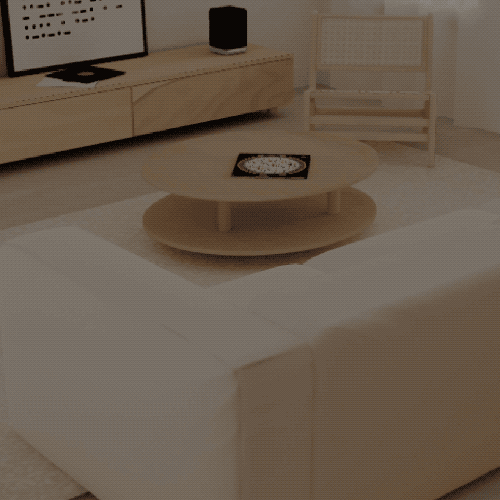

This example demonstrates the simplest method for spawning objects on surfaces using hand gestures (point to move, pinch to spawn).

Check out the World Query Hit - Spawn On Surface and Surface Detection assets in the Asset Library for ready-to-use implementations, or download them as unpacked packages from the GitHub repository.

Semantic Hit Testing​

Ground Detection​

World Query can identify specific surface types, such as ground surfaces. This enables automatic object placement based on surface classification.

Experimental Feature

You need to enable Experimental APIs in your project settings to use semantic hit testing functionality.

Classification Implementation​

Enable semantic classification to detect ground surfaces:

// import required modules
const Interactor = require('SpectaclesInteractionKit.lspkg/Core/Interactor/Interactor');
const InteractorTriggerType = Interactor.InteractorTriggerType;
const InteractorInputType = Interactor.InteractorInputType;
const { SIK } = require('SpectaclesInteractionKit.lspkg/SIK');

const WorldQueryModule = require('LensStudio:WorldQueryModule');

function HitTestClassification() {
  // Private variables
  var hitTestSession;
  var primaryInteractor;

  function onAwake() {
    hitTestSession = createHitTestSession();

    script.createEvent('UpdateEvent').bind(onUpdate);
  }

  function createHitTestSession() {
    var options = HitTestSessionOptions.create();
    options.classification = true;

    var session = WorldQueryModule.createHitTestSessionWithOptions(options);
    return session;
  }

  function onHitTestResult(result) {
    if (result === null) {
      // Hit test failed
      return;
    }

    var hitPosition = result.position;
    var hitNormal = result.normal;
    var hitClassification = result.classification;

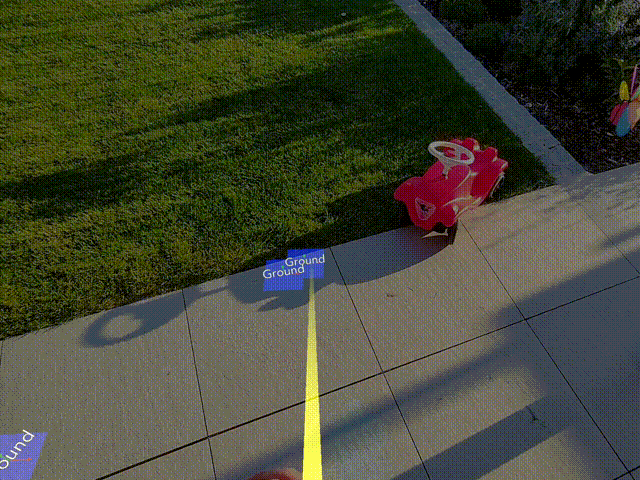

    switch (hitClassification) {
      case SurfaceClassification.Ground:
        print('Hit ground!');
        break;
      case SurfaceClassification.None:
        print('Hit unknown surface!');
        break;
    }
  }

  function onUpdate() {
    primaryInteractor =
      SIK.InteractionManager.getTargetingInteractors().shift();
    if (
      primaryInteractor &&
      primaryInteractor.isActive() &&
      primaryInteractor.isTargeting()
    ) {
      var rayStartOffset = new vec3(
        primaryInteractor.startPoint.x,
        primaryInteractor.startPoint.y,
        primaryInteractor.startPoint.z + 30
      );
      var rayStart = rayStartOffset;
      var rayEnd = primaryInteractor.endPoint;

      hitTestSession.hitTest(rayStart, rayEnd, onHitTestResult);
    }
  }

  // Initialize
  onAwake();
}

// Register and initialize the script
script.HitTestClassification = HitTestClassification;
HitTestClassification();
