Custom Script UI

This is an advanced scripting feature. If you aren't already familiar with scripting properties, please first see the Scripting Overview guide.

Custom UI can be used to control how your script properties appear in the Inspector panel. This is configured by adding a json string after your normal @input property declaration. For example:

Normal input declaration:

//@input vec3 myColor

Input with custom UI:

//@input vec3 myColor {"widget":"color"}

Default Values

Individual variables:

//@input string myString = "default string"
//@input int myInt = 24
//@input bool myBool = true

Arrays:

//@input string[] myStringArray  = {"My","default","strings"}
//@input int[] myIntArray = {24,1}
//@input bool[] myBoolArray = {true,false,false}

General UI Controls

These are optional controls that work on @input properties and @ui widgets.

  • "label" - Overrides the text label displayed
  • "hint" - Sets a hint message to appear on mouse hover
  • "widget" - Specifies the widget used for drawing (see below)

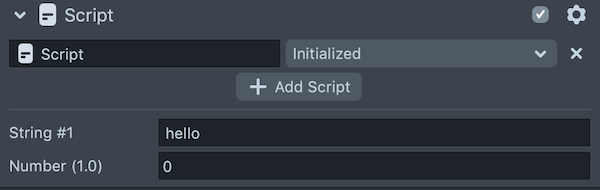

//@input string string1 = "hello" {"label":"String #1"}
//@input int number1 {"label":"Number (1.0)", "hint":"This is a number variable"}

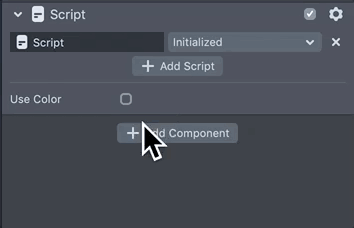

  • "showIf" - Sets a property name to control the element's visibility

//@input bool useColor
//@input vec3 myColor {"widget":"color", "showIf":"useColor"}

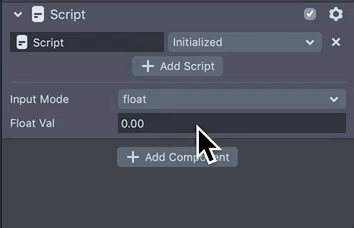

  • "showIfValue" - Used with "showIf", sets a required value for the element to be visible (defaults to true)

//@input string inputMode {"widget":"combobox", "values":[{"label":"float", "value":"float"}, {"label":"vec3", "value":"vec3"}, {"label":"color", "value":"color"}]}
//@input float floatVal {"showIf":"inputMode", "showIfValue":"float"}
//@input vec3 vec3Val {"showIf":"inputMode", "showIfValue":"vec3"}
//@input vec4 colorVal {"widget":"color", "showIf":"inputMode", "showIfValue":"color"}

Input Widgets

Widgets can make dramatic changes to how @input properties are drawn. Each widget works with a certain set of property types, so make sure your property type is supported by the widget.

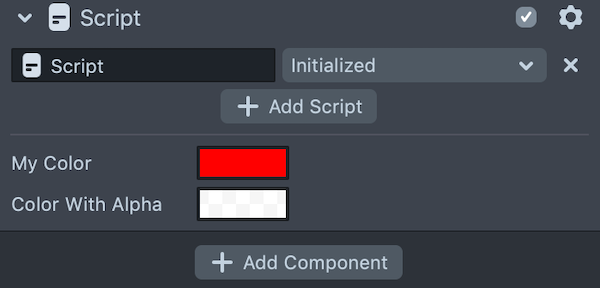

Color

A color picker for vec3 and vec4 properties.

// RGB (red, green, blue)
//@input vec3 myColor = {1,0,0} {"widget":"color"}
// RGBA (red, green, blue, alpha)
//@input vec4 colorWithAlpha = {1,1,1,.5} {"widget":"color"}

Spinbox

The default widget for int and float properties.

  • "min" - Minimum allowed value
  • "max" - Maximum allowed value
  • "step" - Amount added when clicking the up and down buttons

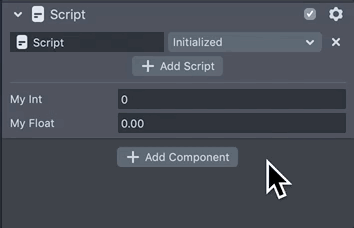

//@input int myInt {"label":"My Int", "min":0, "max":25, "step":5}
//@input float myFloat {"label":"My Float", "min":0.0, "max":1.0, "step":0.001}

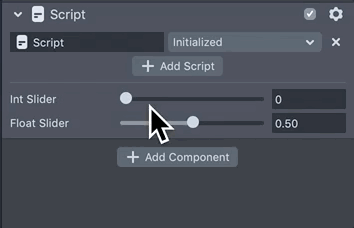

Slider

Draws a draggable slider that interpolates between two values. This works with int and float properties.

  • "min" - Minimum allowed value
  • "max" - Maximum allowed value
  • "step" - Smallest increment allowed between min/max
//@input int intSlider {"widget":"slider", "min":0, "max":10, "step":1}
//@input float floatSlider = 0.5 {"widget":"slider", "min":0.0, "max":1.0, "step":0.01}

Combo Box

Shows a dropdown menu with a list of selectable options. This works with string, int, and float properties.

  • "values" - List of options in the combo box. Each option is a json object formatted as follows:
    • "label" - How this option appears in the drop down menu
    • "value" - The value returned in script if this option is selected

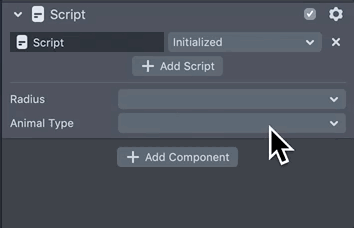

//@input int radius {"widget":"combobox", "values":[{"label":"one", "value":1}, {"label":"two", "value":2}]}
//@input string animalType {"widget":"combobox", "values":[{"label":"cat", "value":"cat"}, {"label":"dog", "value":"dog"}, {"label":"bird", "value":"bird"}]}

Here's a breakdown of the json strings being used in this example. Remember that each UI element is defined in a single line, so this expanded version is only for readability and won't work as is.

{
"widget": "combobox",
"values":
[
{"label": "one", "value": 1},
{"label": "two", "value": 2}
]
}
{
"widget": "combobox",
"values":
[
{"label": "cat", "value": "cat"},
{"label": "dog", "value": "dog"},
{"label": "bird", "value": "bird"}
]
}

Text Area

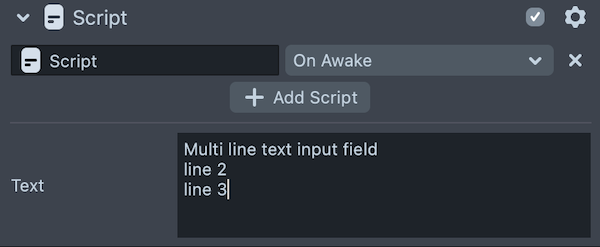

Create a multi-line string input field:

//@input string text {"widget" : "text_area"}

Custom Type Inputs

You may define your own custom input type and create arrays of custom objects:

/*
@typedef test
@property {vec3} a {"widget": "color"}
@property {vec4} b {"widget": "color"}
@property {int} c {"label":"My Int", "min":0, "max":25, "step":5}
@property {float} d {"label":"My Float", "min":0.0, "max":1.0, "step":0.001}
@property {int} e {"widget":"slider", "min":0, "max":10, "step":1}
@property {float} f {"widget":"slider", "min":0.0, "max":1.0, "step":0.01}
@property {int} g {"widget":"combobox", "values":[{"label":"one", "value":1}, {"label":"two", "value":2}]}
@property {string} h {"widget":"combobox", "values":[{"label":"cat", "value":"cat"}, {"label":"dog", "value":"dog"}, {"label":"bird", "value":"bird"}]}
*/

// @input test mystruct
// @input test[] mystruct2

UI Widgets

UI widgets are purely for visual organization and decoration, since unlike @input properties they won't provide values to your script. They are created by starting a line with //@ui. For example:

//@ui {"widget":"label", "label":"Hello"}

Label

Draws a line of text. Useful for titles, warnings and descriptions.

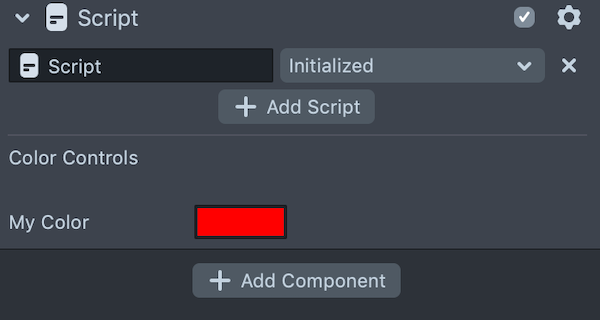

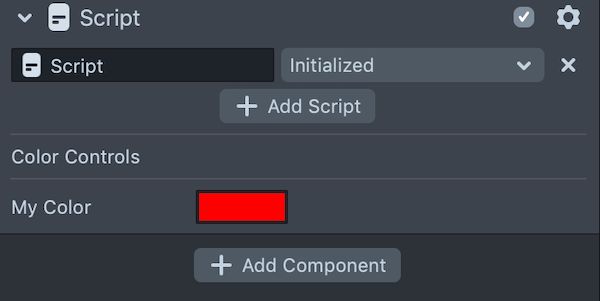

//@ui {"widget":"label", "label":"Color Controls"}
// Empty label, adds empty space
//@ui {"widget":"label"}

Separator

Draws a horizontal line for separating content.

//@ui {"widget":"separator"}

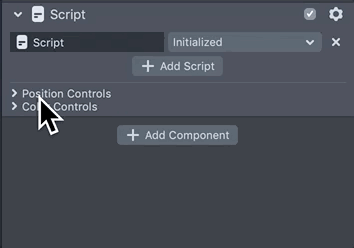

Group

Creates a collapsible group that hides or shows all content inside. Use a "group_start" widget to begin the group, and a "group_end" widget to end it. Any @input or @ui between the two will become part of the group.

//@ui {"widget":"group_start", "label":"My Group"}
// inner content...
//@ui {"widget":"group_end"}
