Lifecycle

The following steps and flowchart describe how Spectacles Sync Kit sets up a Connected Lenses session and when certain actions are safe to do.

Session Setup Steps

1. SessionController is initialized.
2. SyncEntities in the scene subscribe to events on SessionController.

✅ It is okay to add storage properties, subscribe to events, and request ownership of SyncEntities.

3. Instantiators in the scene are initialized and subscribe to events on SessionController.
4. On mapping or relocalization success, SessionController begins to set up the session. When the session setup is finished, SessionController.getIsReady() becomes true and all SessionController.notifyOnReady() callbacks are executed.

✅ SessionController is now completely ready to use and SessionController APIs can be called.

5. All SyncEntities begin to initialize themselves. Depending on the situation, they may initialize immediately, or may take up to a second to initialize. When each SyncEntity is ready and fully initialized, they execute their SyncEntity.notifyOnReady() callbacks.

✅ SyncEntity is now completely ready to use. Storage properties can be set and retrieved, and networked events can be sent and received.

6. When each Instantiator is ready and fully initialized, they execute their Instantiator.notifyOnReady() callbacks.

✅ Instantiator is now completely ready to use. Prefabs can be instantiated across the network.

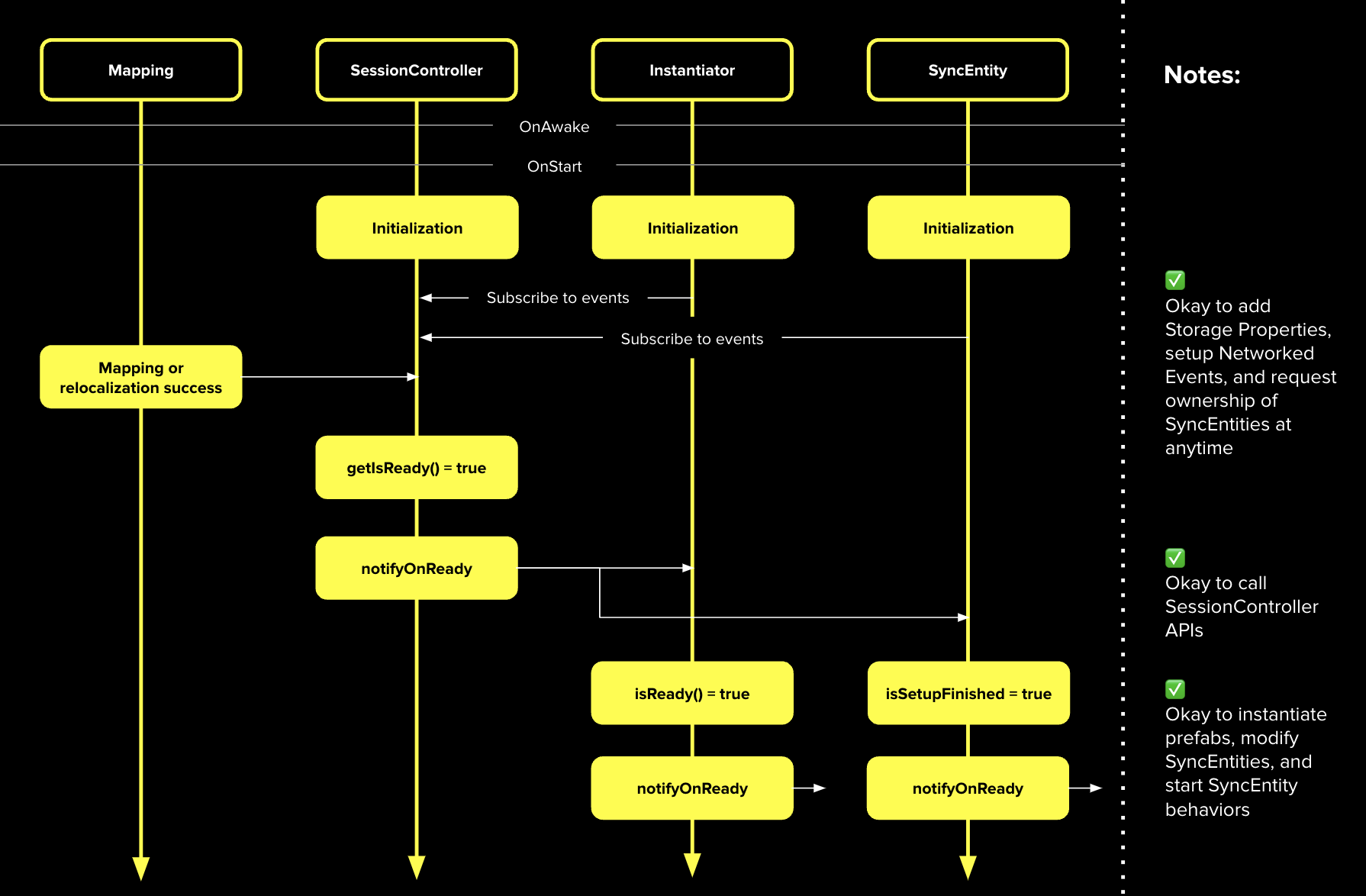

Session Setup Flowchart

Key Takeaways

These are the most important points to remember as a developer:

SessionController

• If you need to use SessionController APIs, wait for the SessionController.notifyOnReady() callback to run, or for SessionController.getIsReady() to return true.

SyncEntity

• If you need to set up a SyncEntity by adding storage properties or callbacks, it is fine to do so at any point.
• If you need to make changes to a SyncEntity (e.g., get / set a storage property) or start its behavior, wait for the SyncEntity.notifyOnReady() callback, or for SyncEntity.isSetupFinished to return true.

Instantiator

• If you need to instantiate a prefab using the Instantiator, wait for the Instantiator.notifyOnReady() callback, or for Instantiator.isReady() to return true.
