Overview

The Camera component is used to display the Scene in a Lens. Each Lens requires at least one Camera to render the Scene. Cameras will render everything on the selected Layers to the Render Target. This guide will introduce how to add a Camera, the types of Cameras, the Camera settings and how to work with multiple Cameras and Render Targets.

Add a Camera​

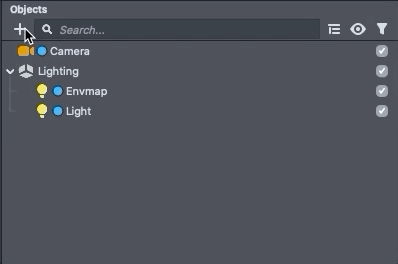

You can add a Camera by using + -> Camera in the Objects panel.

Camera Types​

Perspective Camera​

The Perspective Camera simulates how perspective and depth-perception work in the real world. Objects appear smaller when they are further away. The Perspective Camera is useful for visualizing 3D models.

Orthographic Camera​

The Orthographic Camera does not include perspective distortion. Parallel lines stay parallel no matter how far away they are. The Orthographic Camera is commonly used for 2D effects like Screen Image and Screen Text.

Camera Settings​

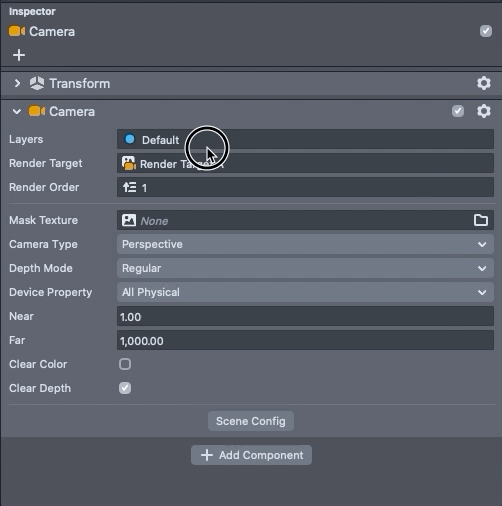

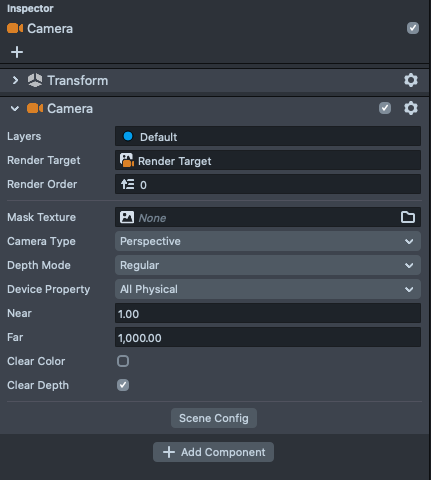

Select the Camera in the Objects panel, then in the Inspector panel under the Camera Component, you will see the settings for your Camera.

  • Layers - The Camera renders all Objects that belong to the selected layers
  • Render Target - Sets the render output of this Camera to a Render Target. More information about Render Target can be found below
  • Render Order - Controls the render order within the Camera's Render Target. The lower the Render Order, the earlier that this camera's output texture will be added to the Render Target
  • Mask Texture - Sets the opacity mask to apply to the Camera's output
  • Camera Type - Choose between Perspective and Orthographic using the drop-down
  • Depth Mode - Choose Between the regular depth mode and logarithmic mode

Regular depth mode has high depth precision on near objects and low depth precision on distant fragments. Logarithmic mode is the other way around with higher precision on far objects. Logarithmic mode works better when rendering scenes with far and big 3D objects

  • Device Property - Choose from None, Physical Aspect, Physical Fov and All Physical using the drop down. When set to All Physical, the Camera will adopt the settings of the mobile device
    • Aspect Preset - Controls the aspect ratio of the viewing frustum. Choose from the provided device aspects or set your own custom aspect
    • Field of View - Perspective Camera Only. The viewing angle of the Camera
  • Size - Orthographic Camera Only. The height of the viewing box of the Orthographic Camera
  • Near - The closest distance the Camera can render
  • Far - The furthest distance the Camera can render
  • Clear Color - If enabled, the Render Target of this Camera will be filled by Input Texture if exist or plain color otherwise. Alpha is always 1
  • Clear Depth - If enabled, depth buffer from previous Render Target will be cleared

Render Target​

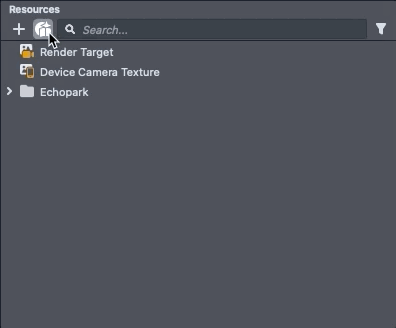

A Render Target is the output texture of a single camera or the combined output of multiple cameras. Each Camera has a Render Target associated with it and multiple cameras can share one Render Target. You can add a new Render Target by + -> Render Target from the Resources panel.

For the common use case of having multiple cameras in a defined render order, it's recommended to have them all output to the same Render Target for performance reasons. Or put another way, less Render Targets generally equals better performance

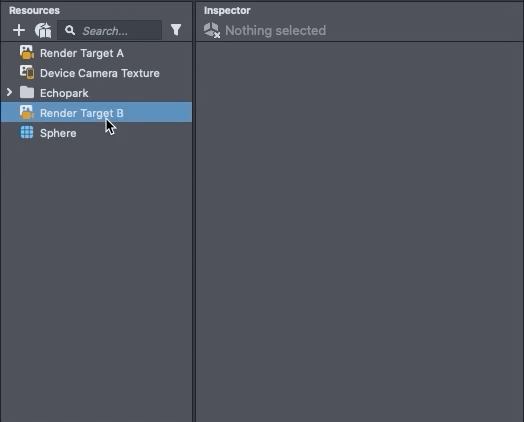

Select the Render Target in the Resources panel, then in the Inspector panel, you will see the settings for this Render Target.

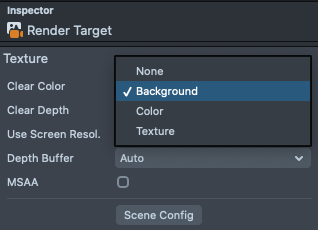

  • Clear Color - Defines what is drawn before the scene is rendered every frame. The options are the following:
    • None - The Render Target is not cleared and the scene will be drawn on top of the last frame
    • Background - Uses Device Camera Texture as the texture to draw on every frame before you scene is rendered
    • Color - Uses a plain color as the texture to draw on every frame before you scene is rendered
    • Texture - Allows you to choose an Input Texture which is drawn on every frame before you scene is rendered
  • Clear Depth - If enabled, depth buffer from previous Render Target will be cleared. When Clear Depth is enabled in the Camera setting, it will override the Render Target setting
  • Depth Buffer - Choose from Auto, ForceOn and ForceOff. ForceOn will force depth buffer available for this Render Target while ForceOff turns it off
  • MSAA - Turns on multisample anti-aliasing if enabled
  • Use Screen Resolution - Sets to the device's screen resolution if enabled

For the Render Target to render on top of the mobile device's camera feed, use the Device Camera Texture as the Input of the Render Target.

Scene Config​

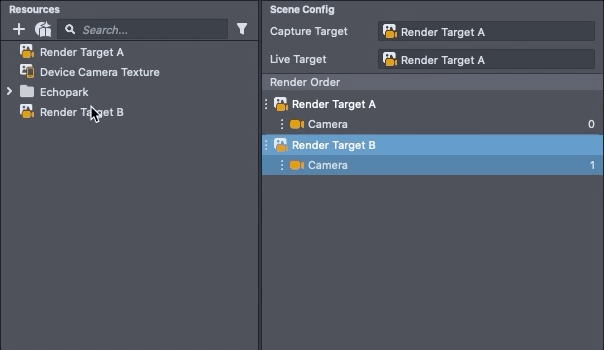

The Scene Config panel allows you to set the Live Target, the Capture Target and quickly rearrange the camera render order. If you are in the default panel layout, the Scene Config panel is next to the Resources panel. You can also add the Scene Config panel by selecting Windows -> Panels -> Scene Configfrom the main menu bar.

Live Target and Capture Target​

Live Target sets the output Render Target that users will see in the live camera and during recording in Snapchat. Capture Target sets the output Render Target of the actual recorded snap. This is handy when you have UI elements or hints in the Lens that you want to hide in the final recorded snap, but still be present during the recording. Check out the Soundboard Template for an example of using the Capture Target and Live Target fields.

You can set the Live Target and Capture Target in the Scene Config panel.

In the Preview panel, you can toggle the Capture Mode option under the Show UI options. Refer to the Previewing Your Lens guide for more information.

Lenses that don't have different content in live camera vs. post capture will have their Capture Target and Live Target fields set to the same Render Target.

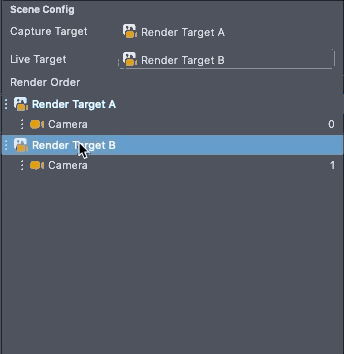

In the Scene Config panel, you can drag the order of the camera's within a Render Target. You can also drag a camera to a different Render Target which will reassign the camera's Render Target field.

Overlay Target​

The overlay target is different than capture and live target, in that it is the only Render Target that display on the device's native resolution. This is useful if you are wanting to display text, or images, where you want the crispiest rendering.

Take a look at the Pixel Accurate Rendering guide to learn more about using Overlay Render Target.

Overlay Target can not be added to the final captured Snap.

Layers​

Assigning Layers​

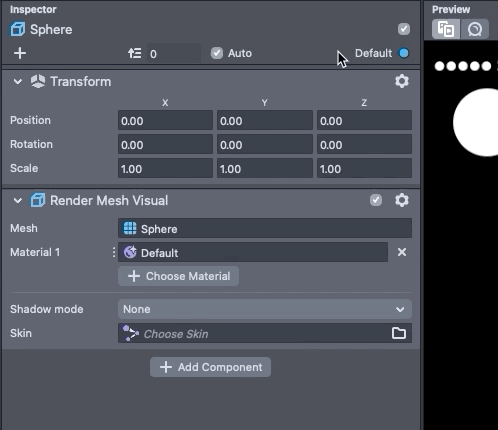

Understanding how Layers work is important to working with Cameras. For any object, you can choose the Layer which it will be rendered on by defining its Layers in the Inspector panel. You can also add a new Layer by clicking Add New Layer.

Layer is only relevant to objects with visual Components such as MeshVisual and Image.

Camera's Layers​

In a Camera's settings, all Objects that belong to the selected Layers will be rendered to the selected Render Target. For example, if Cube A is on Layer 1 and Cube B is on Layer 2. And, Camera A's Layers is set to solely Layer 1. Then, Cube B will not be rendered in Camera A's render target texture.

Layer Mode​

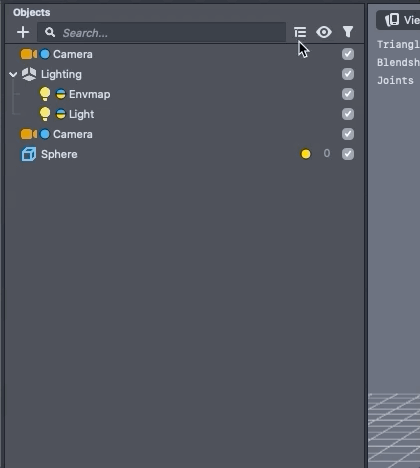

In the Objects panel, you can switch to Layer View to view scene objects in your project in different layers. This is helpful if you are working with multiple cameras and render layers and you want a clear understanding of how each layer looks.

You can also customize the color and name of each render layer.

Multiple Cameras​

You can have multiple Cameras in the Scene. A common use case would be a Perspective Camera for 3D objects and an Orthographic Camera for Screen Images. In this use case, the separate cameras should share the same Render Target and the order should render the Perspective Camera before the Orthographic Camera.

For more complex use cases, you can chain multiple Cameras together by using the Render Target of one camera as the Input to another Camera's Render Target. For example if you use Camera A's render target as Input to Camera B's Render Target, Camera B will render its layers on top of Camera A's output texture.

Examples of Switching Cameras in Script​

We can also set and change Render Layers of Cameras in Script. Below is an example of how to toggle between two Cameras in Script using Render Layers.

In your scene, create a second camera by selecting  + -> Camera in the Objects panel. Then, make sure the new Camera's Render Target is set to the same as the original camera's Render Target. Both cameras should now render to the Lens, one before the other.

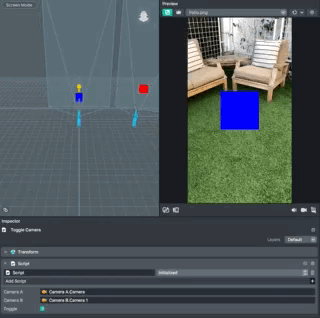

Next, this script below enables and disables the default render layer based on the toggle checkbox in the Inspector. Bind this to Initialized Event, link the two Cameras and each time you press the toggle checkbox you should see it reflected in the preview window.

// -----JS CODE-----
// @input Component.Camera cameraA
// @input Component.Camera cameraB
// @input bool toggle
if (!script.toggle) {
  removeAllRenderLayers(script.cameraA);
  removeAllRenderLayers(script.cameraB);
  script.cameraA.addRenderLayer(0);
} else {
  removeAllRenderLayers(script.cameraA);
  removeAllRenderLayers(script.cameraB);
  script.cameraB.addRenderLayer(0);
}
function removeAllRenderLayers(camera) {
  var renderLayers = camera.getAllRenderLayers();
  for (var i = 0; i < renderLayers.length; i++) {
    camera.removeRenderLayer(i);
  }
}
