Hand Visualization

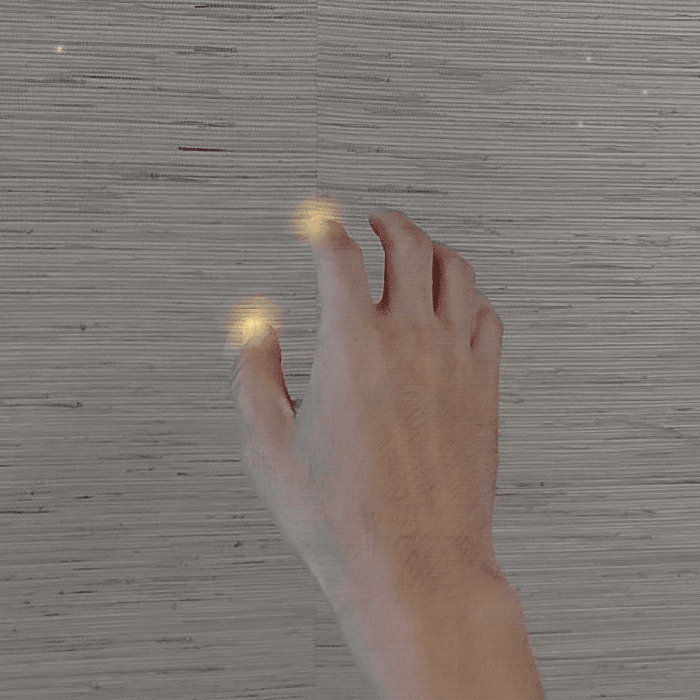

Spectacles Interaction Kit modifies the user’s hand visualization with effects to enhance AR interactions. For example, the Pinch Glow effect brightens when the user pinches, and the Hand Occluder hides AR objects behind the center of the hand’s palm. Use the HandVisual component to toggle active visualizations.

You can also create custom effects using the ObjectTracking3D API. By setting attachment points on specific hand keypoints, custom objects and effects can be configured to follow these keypoints in real-time.

Relevant Components

HandVisual processes information from HandInputData to overlay visuals on the hand. Its main functions are to provide a glow on the fingertips when pinching and to occlude SceneObjects behind the hand, adding a sense of realism.

Lens Studio’s ObjectTracking3D allows you to set attachment points onto a hand’s keypoint. This is useful for creating custom visual effects that follow targeted hand keypoints on each frame.

Code Example

TypeScript

@component
export class ExampleHandVisualizationScript extends BaseScriptComponent {
  @input()
  visualSceneObject: SceneObject;

  @input()
  rightHand: HandTracking3DAsset;

  private objectTracking3DComponent: ObjectTracking3D;

  onAwake() {
    this.objectTracking3DComponent = this.sceneObject.createComponent(
      'Component.ObjectTracking3D'
    );
    this.objectTracking3DComponent.trackingAsset = this.rightHand;
    this.objectTracking3DComponent.addAttachmentPoint(
      'index-3',
      this.visualSceneObject
    );
  }
}

JavaScript

// @input SceneObject visualSceneObject
// @input Component.HandTracking3DAsset rightHand

const SIK = require('SpectaclesInteractionKit/SIK').SIK;

function onAwake() {
  // Wait for other components to initialize by deferring to OnStartEvent.
  script.createEvent('OnStartEvent').bind(() => {
    onStart();
  });
}

function onStart() {
  const objectTracking3DComponent = script.sceneObject.createComponent(
    'Component.ObjectTracking3D'
  );
  objectTracking3DComponent.trackingAsset = script.rightHand;
  objectTracking3DComponent.addAttachmentPoint(
    'index-3',
    script.visualSceneObject
  );
}

onAwake();
