Raycast

In some cases, you may want the Lens user, or objects, to interact based on line of sight (i.e. a ray). You can do this by using the physics system's raycast function. By defining a ray from some start point, to an end point, the Physics system can calculate which collider that ray intersects with, and provide information back. Alternatively, a primitive shape (such as a sphere) may be swept along a transform path to expand the search area.

Probe

Raycast is exposed to scripts through the Physics.Probe, which operates on a specific world (i.e. the root or a component). A Probe is created from one of the create probe functions (createProbe or createGlobalProbe). The probe then allows you to perform the intersection (raycast) tests.

RayCast

var rayStart = new vec3(0.0, 100.0, 0.0);
var rayEnd = new vec3(0.0, -100.0, 0.0);

// Create a probe to raycast through only the implicit root world.
var rootProbe = Physics.createRootProbe();
rootProbe.rayCast(rayStart, rayEnd, function (hit) {
  print(hit);
});

// Create a probe to raycast through all worlds.
var globalProbe = Physics.createGlobalProbe();
globalProbe.rayCast(rayStart, rayEnd, function (hit) {
  print(hit);
});

// Create a scene object with a world component.
var obj = scene.createSceneObject('MyWorld');
var component = obj.createComponent('Physics.WorldComponent');

// Create a probe to raycast through this world.
var worldProbe = component.createProbe();
worldProbe.rayCast(rayStart, rayEnd, function (hit) {
  print(hit);
});

Swept-Shape Cast

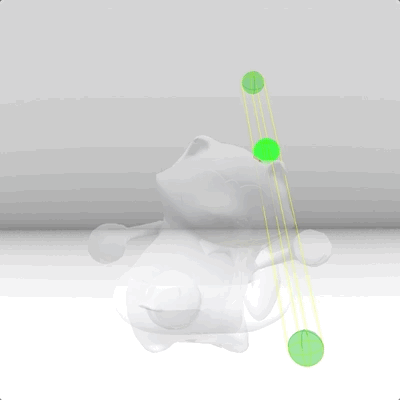

Swept-shape casts. This is an extension of the raycast API that allows a primitive shape to be swept along a transform path.

• This supports all of the existing Shape types, with the exception MeshShape.
• The Physics.Probe script class has additional functions to sweep a sphere or other primitive shape along a transform path (expressed as position and rotation). These are called sphereCast[All]() and shapeCast[All]().
• The sphereCast() functions are provided as a convenience, and are equivalent to calling shapeCast() with a SphereShape.
• Swept rotations are limited to 180°, and take the shortest rotational arc.

var radius = 10.0;
var rayStart = new vec3(0.0, 100.0, 0.0);
var rayEnd = new vec3(0.0, -100.0, 0.0);

// For the shape-cast, also provide start and end rotation.
var rotStart = quat.angleAxis(
  30.0 * MathUtils.DegToRad,
  new vec3(0.0, 1.0, 0.0)
);
var rotEnd = quat.angleAxis(
  150.0 * MathUtils.DegToRad,
  new vec3(0.0, 1.0, 0.0)
);

// Create a box shape for the shape-cast.
var boxShape = Shape.createBoxShape();
boxShape.size = new vec3(1.0, 10.0, 4.0);

// Create a probe to raycast through all worlds.
var probe = Physics.createGlobalProbe();

// Perform swept-sphere cast to get nearest hit.
probe.sphereCast(radius, rayStart, rayEnd, function (hit) {
  print(hit);
});

// Perform swept-sphere cast to get all hits.
probe.sphereCastAll(radius, rayStart, rayEnd, function (hits) {
  var hitCount = hits.length;
  for (var i = 0; i < hitCount; ++i) {
    var hit = hits[i];
    print(hit);
  }
});

// Perform swept-box cast to get nearest hit.
probe.shapeCast(boxShape, rayStart, rotStart, rayEnd, rotEnd, function (hit) {
  print(hit);
});

// Perform swept-sphere cast to get all hits.
probe.shapeCastAll(
  boxShape,
  rayStart,
  rotStart,
  rayEnd,
  rotEnd,
  function (hits) {
    var hitCount = hits.length;
    for (var i = 0; i < hitCount; ++i) {
      var hit = hits[i];
      print(hit);
    }
  }
);

Probe Filter

You can filter the results of your raycast using the filter option of a probe.

• includeStatic - set true to include static objects in intersection tests.
• includeDynamic - set true to include dynamic objects in intersection tests.
• includeIntangible - set true to include intangible objects in intersection tests.

// Create a probe to raycast through all worlds.
var probe = Physics.createGlobalProbe();

// Set filter settings on it.
probe.filter.includeStatic = false;
probe.filter.includeDynamic = true;
probe.filter.includeIntangible = false;

You can also use Physics.Filter as the Probe Filter

// Get object layer
var objectLayer = script.getSceneObject().layer;

// Create a new filter and adjust its settings.
var filter = Physics.Filter.create();
filter.skipLayers = objectLayer;
filter.onlyColliders = [script.myCollider1, script.myCollider2];

// Perform a ray cast using the filter.
var probe = Physics.createGlobalProbe();
probe.filter = filter;
probe.rayCast(new vec3(0, 100, 0), new vec3(0, -100, 0), function (hit) {
  print(hit);
});

RayCast & RayCastAll

With your probe created, you can ask it to do a raycast.

• rayCast(vec3 start, vec3 end, HitCallback hitCB): casts a ray into the world and returns the nearest hit surface.

• rayCastAll(vec3 start, vec3 end, HitCallback hitCB): casts a ray into the world and returns the all hit surfaces, in order from nearest to farthest.

RayCastHit

The raycast provide some information about the objects that the ray intersected via its callback function:

• skipRemaining - Skip remaining hits past a certain distance.
• distance - Distance to the point of intersection.
• t - Ray interpolant at the point of intersection, in the range [0, 1].
• position - Position at the point of intersection.
• normal - Surface normal on the collider at the point of intersection.
• collider - The collider that was hit.
• triangle - Triangle hit information, available when a ray cast intersects a collision mesh.
  • mesh - Collision mesh containing the triangle.
  • index - Index of the triangle in the mesh.
  • vertexIndices - Vertex indices in the mesh.
  • vertexPositions - World-space vertex positions.
  • barycentricCoordinate - Barycentric coordinate of the hit on the triangle. This is used to interpolate values over the triangle surface. Essentially, these are weights for each of the 3 triangle vertices.

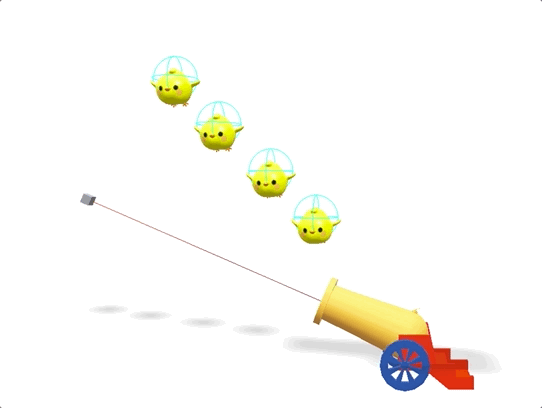

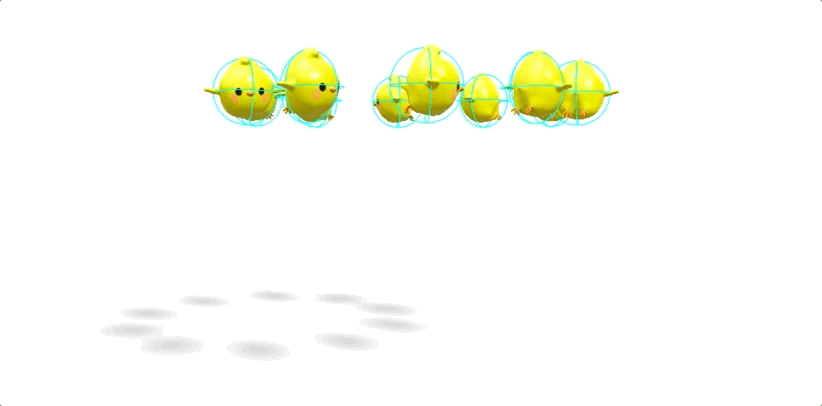

To learn more about Raycast APIs, check Physics Template - Raycast Example.

var rayStart = new vec3(0.0, 100.0, 0.0);
var rayEnd = new vec3(0.0, -100.0, 0.0);

// Create a probe to raycast through all worlds.
var probe = Physics.createGlobalProbe();

// Set some properties on it.
probe.debugDrawEnabled = true;
probe.filter.includeStatic = true;
probe.filter.includeDynamic = false;
probe.filter.includeIntangible = true;

// Find the first hit.
probe.rayCast(rayStart, rayEnd, function (hit) {
  if (hit === null) {
    return;
  }
  print('hit: ' + hit);

  print('skip remaining: ' + hit.skipRemaining);
  print('collider: ' + hit.collider);
  print('position: ' + hit.position);
  print('nortmal: ' + hit.normal);
  print('distance: ' + hit.distance);
  print('ray interpolant: ' + hit.t);

  // Triangle hit information, available when a ray cast intersects a collision mesh.
  var tri = hit.triangle;
  if (tri) {
    print('triangle: ' + tri);
    print('mesh: ' + tri.mesh);
    print('index: ' + tri.index);
    print('vertexIndices: ' + tri.vertexIndices);
    print('vertexPositions: ' + tri.vertexPositions);
    print('barycentricCoordinate: ' + tri.barycentricCoordinate);
  }

  // Skip remaining hits past a certain distance.
  if (hit.distance > 150.0) {
    hit.skipRemaining = true;
  }
});

// Find all hits.
probe.rayCastAll(rayStart, rayEnd, function (hits) {
  var hitCount = hits.length;
  for (var i = 0; i < hitCount; ++i) {
    var hit = hits[i];
    print(hit);
  }
});
