With Lens Studio 5.0, TypeScript is supported natively within Lens Studio. Lens developers can choose to develop their Lens in JavaScript, TypeScript or both. While there should be some familiarity with using TypeScript as JavaScript, there are nuances that you should be aware of. If it is your first time using TypeScript, typescriptlang is a great resource to learn more about TypeScript.

JavaScript vs TypeScript

When choosing between JavaScript and TypeScript for creating your Augmented Reality experiences in Lens Studio, it’s essential to understand their difference and make an informed decision.

Benefits of TypeScript Compared to JavaScript

Static Typing

TypeScript’s static typing feature allows developers to define types for variables, function parameters, and return values, enabling early error detection and enhancing code quality and maintainability during compilation.

IDE Support

TypeScript provides robust tooling support, including features such as code navigation, intelligent code completion, and refactoring tools through integrated development environments (IDEs) such as Visual Studio Code.

Object-Oriented Programming

TypeScript’s support for object-oriented programming (OOP) concepts simplifies the creation of scalable and maintainable codebases. Features such as classes, interfaces, and inheritance contribute to improved code organization.

Interoperability with JavaScript

TypeScript’s interoperability with existing JavaScript codebases allows for seamless integration and incremental adoption. Developers can gradually introduce TypeScript into an existing project.

Challenges of TypeScript Compared to JavaScript

Learning Curve

TypeScript’s static typing feature may pose a learning curve for developers who are unfamiliar with static typing concepts.

Compilation Time

TypeScript’s compilation time, which converts TypeScript code to JavaScript, can introduce additional overhead and potentially slow down development time.

Lens Studio IDE

While Lens Studio provides auto-completion support for JavaScript-based scripts, it lacks similar support for TypeScript.

Small Project Overhead

In smaller projects, static typing may be less prevalent. In such cases, the additional overhead of using TypeScript might outweigh its advantages.

Core Lens Studio Classes For TypeScript

BaseScriptComponent

In TypeScript, all scripts decorated with @component inherit from the BaseScriptComponent and will behave similarly to JavaScript Components. Read for more details: Script Components Documentation

BaseScriptComponent inherits all methods and properties of ScriptComponent with addition of getTypeName method.

getTypeName(): string

Returns the name of this object’s type.

RequireMe.ts
@component
export class RequireMe extends BaseScriptComponent {
@input
someNumericInput: number;

@input
someDefaultInput2: number = 10;

protected value: number = 1;

setValue(value: number) {
this.value = value;
}

getValue() {
return this.value;
}
}
TestRequireType.ts
import { RequireMe } from './RequireMe';

@component
export class TestRequireType extends BaseScriptComponent {
@input
objectWithRequireMe: SceneObject;

onAwake() {
let requireMe = this.objectWithRequireMe.getComponent(
RequireMe.getTypeName()
);
let createdRequireMe = this.objectWithRequireMe.createComponent(
RequireMe.getTypeName()
);

print(requireMe.getValue());
print(requireMe.someDefaultInput2);
print(requireMe.someNumericInput);
}
}

Widgets

Widgets Classes can be used to create a custom UI to control how your script properties appear in the Inspector Panel using the Core Lens Studio Decorators.

See for the available Widget Classes: Input Widgets - Custom Script UI

Core Lens Studio Decorators

Decorators are special kinds of declarations that can be attached to class declarations, methods, properties, or parameters. Decorators use the form @expression, where expression must evaluate to a function that will be called at runtime with information about the decorated declaration.

For more details, refer to the TypeScript Decorators documentation.

Lens Studio provides several native decorators.

Component

@component

The @component decorator instructs the compiler to create a special .js file with specified Script Inputs and Script UI. It should be used to decorate export classes. The decorated class should extend BaseScriptComponent or any other class that directly or indirectly extends BaseScriptComponent. Only one component decorator is allowed per file. The file will create an instance of the decorated class and set the input properties accordingly. After that, the onAwake() function is called.

@component
export class HelloWorld extends BaseScriptComponent {
onAwake() {
print('Hello World!');
}
}

Typedef

@typedef

The @typedef decorator is used to create a class that can be used inside a Custom Type Input. It should be used to decorate export classes. The decorated class should only contain properties decorated with @input.

@typedef
export class Button {
@input()
isActive: boolean;

@input()
material: Material;

@input()
sceneObject: SceneObject;
}

Input

@input(typeOverride?: ScriptingInputType, defaultInitializerOverride?: string | number)

Decorator which is used to make a Script Input from a class, decorated with @component, property or constructor parameter.

import { OtherTSComp } from './OtherTSComp';

@component
export class InputsShowcase extends BaseScriptComponent {
@input()
sceneObject: SceneObject;

@input()
someMaterial: Material;

@input()
customType: CustomType; // (can be also in a different file)

@input('int')
someInt: number;

@input()
someFloat: number = 2.0;

@input('mat2', '{{1,2},{3,4}}')
someMatrix: mat2;

@input
otherTSComp: OtherTSComp; // can use other ts component types as input types

onAwake() {}
}

ShowIf

@showIf(showIf: string, showIfValue?: string | number)

The @showIf decorator is used after @input or any @ui.* decorator. It sets a property name to control the element's visibility.

@component
export class ShowIfShowcase extends BaseScriptComponent {
@input()
advanced: boolean;

@input()
@showIf('advanced')
sceneObject: SceneObject;

onAwake() {}
}

Hint

@hint(hint: string)

The @hint decorator is used after @input, or @ui.* decorator. It sets a hint message to appear on mouse hover.

@component
export class HintShowcase extends BaseScriptComponent {
@input()
@hint('Scene object that does a lot of stuff')
sceneObject: SceneObject;

onAwake() {}
}

Label

@label(label: string)

The @label decorator is used only after @input decorator. It is used to override displayed text.

@component
export class LabelShowcase extends BaseScriptComponent {
@input()
@label('Hand Root')
sceneObject: SceneObject;

onAwake() {}
}

Widget

@widget(widget: UIWidget)

The @widget decorator is used only after @input. It is used to specify custom UI widgets for particular script input.

@component
export class WidgetShowcase extends BaseScriptComponent {
@input()
@widget(new SliderWidget(0, 5, 0.25))
myFloat: number;

onAwake() {}
}

See for the available Widgets: Input Widgets - Custom Script UI

UI

@ui.separator @ui.label(label?: string) @ui.group_start(label?: string) @ui.group_end

Decorators for creating UI Widgets are used only for pure visualization. The property which is being decorated doesn’t matter, only its order relative to other decorators is being used. Keep in mind, there should always be some property below @ui decorator. This is the restriction which comes from the TypeScript compiler.

@component
export class UIShowcase extends BaseScriptComponent {
@input()
showSliders: boolean;

@ui.group_start('My Sliders')
@showIf('showSliders')
@input()
@widget(new SliderWidget(0, 5, 0.25))
myFloat: number;

@input()
@widget(new SliderWidget(0, 5, 0.25))
myFloat2: number;

@ui.group_end
@ui.separator
@ui.label() // Intentional empty label
@ui.label('Here only scene objects are listed')
@input()
mySceneObject1: SceneObject[];

@input()
mySceneObject2: SceneObject[];

@ui.separator
onAwake() {}
}

AllowUndefined

@allowUndefined

The @allowUndefined decorator is used along with @input or @inputTypedef decorators to disable undefined checks. By default, all @input and @inputTypedef properties are checked for “undefined”. If an input property is not provided, then a run-time error would be thrown.

@component
export class AllowUndefined extends BaseScriptComponent {
@input()
@allowUndefined
sceneObject: SceneObject;

onAwake() {
if (this.sceneObject) {
this.sceneObject.enabled = true;
}
}
}

Typename

@typename

The @typename decorator is used to specify a custom type name, which can later be used as a parameter for the getComponent() function or as an input type.

@component
export class UsingTypeName extends BaseScriptComponent {
@typename
MySecretComponent: keyof ComponentNameMap;

@input('MySecretComponent')
component: MySecretComponent;

onAwake() {
let component = this.script
.getSceneObject()
.getComponent(this.MySecretComponent) as MySecretComponent;
}
}

TypeScript Compilation

In Lens Studio, TypeScript files undergo a compilation process. This process may not be instantaneous, and as a result, the Preview Panel may not immediately reflect the correct behavior if the TypeScript compilation was not successful. It's crucial to ensure that Lens Studio has completed the compilation of your TypeScript files after each modification.

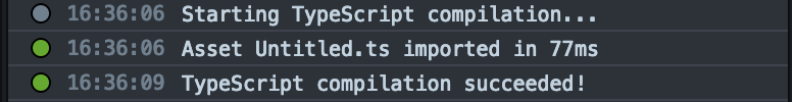

Information regarding the state of TypeScript compilation can be found in the Logger Panel.

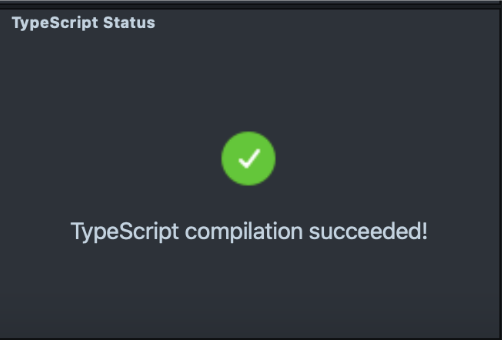

Compilation info can be accessed in the TypeScript Status Panel as well. To access the TypeScript Panel, navigate to Window → TypeScript Status.

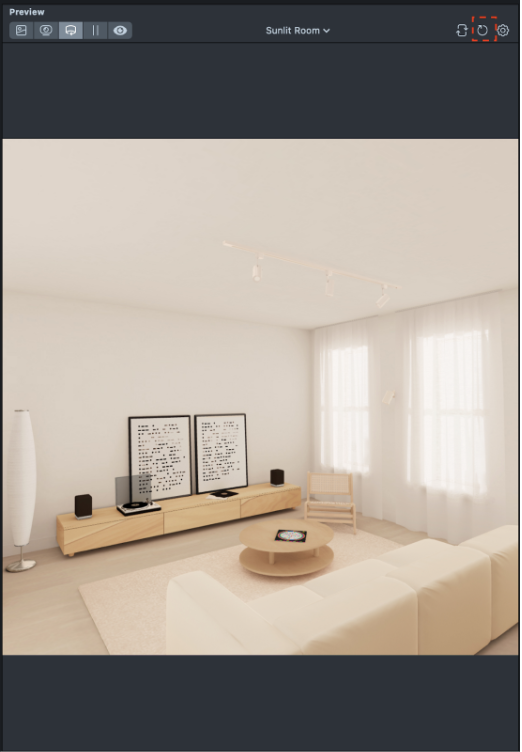

Remember to refresh your Preview Panel once the compilation process has successfully completed.

Declaration Files

The declare keyword is essential for ambient declarations in TypeScript. These declarations allow seamless integration of existing JavaScript code into your TypeScript codebase. Think of it as a bridge connecting TypeScript with existing JavaScript code. Suppose you have an existing JavaScript file with valuable variables or functions. By declaring them in TypeScript, you can leverage their functionality without rewriting everything.

For practical examples of using the declare keyword, see: Accessing one component from another

Lens Studio does not provide any specific handling for .d.ts files. Therefore, when using the declare keyword, you have the flexibility to create these declarations in either .d.ts files or regular .ts files. For additional information on how to use the declare keyword, refer to the TypeScript Handbook: Declaration Files by Example. .html). l).
