Dynamic Collections Ads Guide

Collection ads can be used to market products dynamically, these Ads can either be made fully Dynamic or partly Dynamic.

A fully dynamic Collection ad selects both the top snap and the creative elements dynamically based on the associated Product Set.

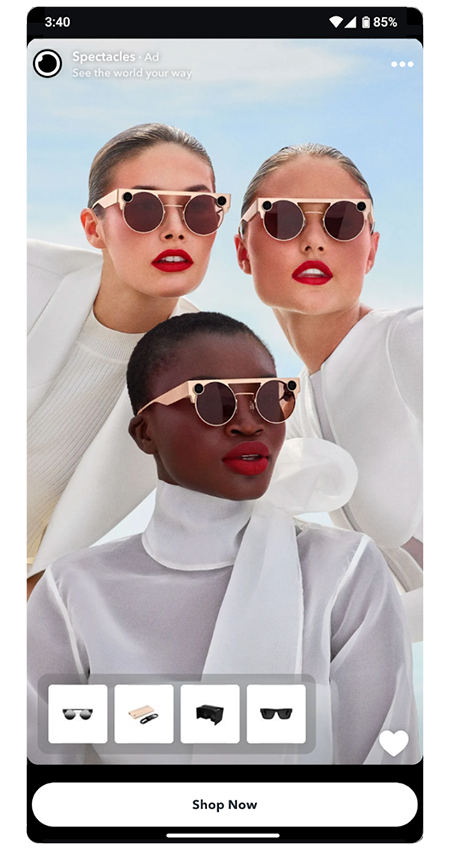

A partly dynamic Collection ad will have a static Top Snap Media (Video/Image), only the creative elements will be dynamically picked based on the associated product set.

Both variants of the Dynamic Collection Ad need an Interaction zone with 2-4 Creative Elements, the Creative Elements will dynamically select Products out of an associated Product Set.

Assuming you have an existing Product feed and Product set, the order of creation from the bottom of the hierarchy is:

Creative Elements
Interaction Zone
Creative
Ad Squad
Ad entity

Product feed - Interaction support

Before setting up the Creative Elements you should ensure the chosen interaction is supported by the product feed and product set you intend to use. The Product Search method along with the parameter ELIGIBLE_AD_TYPE can be used to evaluate this. Refer to Product Search

The three Ad formats supported by product search and ELIGIBLE_AD_TYPE are APP_INSTALL, DEEP_LINK_ATTACHMENT and REMOTE_WEBPAGE.

curl -X POST \
  -H "Authorization: Bearer meowmeowmeow" \
  -H "Content-Type: application/json" \
  -d '{"filter":{"AND":[{"ELIGIBLE_AD_TYPE":{"EQ":"DEEP_LINK_ATTACHMENT"}},{"PRODUCT_SET_ID":{"EQ":"8dc5f3ff-ab02-460b-bbbd-1ade8bb3da38"}},{"OR":[{"AVAILABILITY":{"EQ":"IN_STOCK"}},{"AVAILABILITY":{"EQ":"PREORDER"}},{"AVAILABILITY":{"EQ":"AVAILABLE_FOR_ORDER"}}]}]}}'
https://adsapi.snapchat.com/v1/catalogs/82225ba6-7559-4000-9663-bace8adff5f8/product_search?limit=0

{
  "request_status": "SUCCESS",
  "request_id": "5ff70e2b00ff08056236e672d10001737e616473617069736300016275696c642d33343532666138312d312d3431312d300001013d",
  "summary": {
    "total_products": {
      "count": "47",
      "relation": "EQ"
    }
  },
  "paging": {},
  "products": [
    { ...}
  ]
}

HTTP Request

POST https://adsapi.snapchat.com/v1/catalogs/{catalog_id}/product_search?limit=0

Creative Elements

The Creative element is a holder for the Product Feed images which will be picked dynamically from the Product set defined in dynamic_render_properties.product_set_id at the Creative level.

The Creative Element also specifies the interaction triggered when the user taps the Element (webview/app install/deep link) via the attribute interaction_type.

Once the Creative Element entity has been created it cannot be updated.

curl -X POST \
  -H "Authorization: Bearer meowmeowmeow" \
  -H "Content-Type: application/json" \
  -d '{"creative_elements":[{"name":"Product tile 1","type":"BUTTON","interaction_type":"WEB_VIEW","render_type":"DYNAMIC"},{"name":"Product tile 2","type":"BUTTON","interaction_type":"WEB_VIEW","render_type":"DYNAMIC"},{"name":"Product tile 3","type":"BUTTON","interaction_type":"WEB_VIEW","render_type":"DYNAMIC"}]}'
  https://adsapi.snapchat.com/v1/adaccounts/82225ba6-7559-4000-9663-bace8adff5f8/creative_elements

{
  "request_status": "SUCCESS",
  "request_id": "5fda1dd300ff0d787cd06ea62b0001737e616473617069736300016275696c642d66306132623635382d312d3430392d3200010160",
  "creative_elements": [
    {
      "sub_request_status": "SUCCESS",
      "creative_element": {
        "id": "5bc30331-9428-46a6-8d4c-5093124c6d03",
        "updated_at": "2020-12-16T14:46:44.152Z",
        "created_at": "2020-12-16T14:46:44.152Z",
        "name": "Product tile 1",
        "ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f8",
        "type": "BUTTON",
        "interaction_type": "WEB_VIEW",
        "render_type": "DYNAMIC"
      }
    },
    {
      "sub_request_status": "SUCCESS",
      "creative_element": {
        "id": "83d7b96d-bdb1-4e46-83b2-1a6d61a36b56",
        "updated_at": "2020-12-16T14:46:44.454Z",
        "created_at": "2020-12-16T14:46:44.454Z",
        "name": "Product tile 2",
        "ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f8",
        "type": "BUTTON",
        "interaction_type": "WEB_VIEW",
        "render_type": "DYNAMIC"
      }
    },
    {
      "sub_request_status": "SUCCESS",
      "creative_element": {
        "id": "578e3f05-a87d-4af5-a389-55c086277dad",
        "updated_at": "2020-12-16T14:46:44.727Z",
        "created_at": "2020-12-16T14:46:44.727Z",
        "name": "Product tile 3",
        "ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f8",
        "type": "BUTTON",
        "interaction_type": "WEB_VIEW",
        "render_type": "DYNAMIC"
      }
    }
  ]
}

HTTP Request

POST https://adsapi.snapchat.com/v1/adaccounts/{ad_account_id}/creative_elements

Creative Elements Parameters

Attribute	Description	Required	Possible Values
name	Creative Element name	R
type		R	BUTTON
title	Creative Element title	O
description	Creative Element description	O
interaction_type	Defines the behaviour of the Creative Elements	R	WEB_VIEW, APP_INSTALL, DEEP_LINK
render_type		R	DYNAMIC

Interaction Zones

The Interaction zone is mainly a holder where the Dynamic Creative Elements will be shown, it also holds the call to action for the Snap Ad under the attribute headline. The 2-4 Creative Elements that are added to the Interaction Zone should have the same interaction_type.

Once created the Interaction Zone entity cannot be updated.

curl -X POST \
  -H "Authorization: Bearer meowmeowmeow" \
  -H "Content-Type: application/json" \
  -d '{"interaction_zones":[{"name":"The Badger Shop Interaction Zone","render_type":"DYNAMIC","creative_element_ids":["5bc30331-9428-46a6-8d4c-5093124c6d03","83d7b96d-bdb1-4e46-83b2-1a6d61a36b56","578e3f05-a87d-4af5-a389-55c086277dad"],"headline":"MORE"}]}'
  https://adsapi.snapchat.com/v1/adaccounts/82225ba6-7559-4000-9663-bace8adff5f8/interaction_zones

{
  "request_status": "SUCCESS",
  "request_id": "5fda1f3300ff0c89632e43f2c20001737e616473617069736300016275696c642d66306132623635382d312d3430392d3200010128",
  "interaction_zones": [
    {
      "sub_request_status": "SUCCESS",
      "interaction_zone": {
        "id": "51d12f07-8690-4a41-b201-6a99335bbaa2",
        "updated_at": "2020-12-16T14:52:36.057Z",
        "created_at": "2020-12-16T14:52:36.057Z",
        "name": "The Badger Shop Interaction Zone",
        "ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f8",
        "headline": "MORE",
        "creative_element_ids": [
          "5bc30331-9428-46a6-8d4c-5093124c6d03",
          "83d7b96d-bdb1-4e46-83b2-1a6d61a36b56",
          "578e3f05-a87d-4af5-a389-55c086277dad"
        ],
        "render_type": "DYNAMIC"
      }
    }
  ]
}

HTTP Request

POST https://adsapi.snapchat.com/v1/adaccounts/{ad_account_id}/interaction_zones

Interaction Zones Parameters

Attribute	Description	Required	Possible Values
name	Interaction Zone name	R
render_type		R	DYNAMIC
creative_elements	An array of 2-4 Creative Element ids, these elements should be of the same interaction_type	R
headline	This is used as the CTA for the Collection Ad	R	APPLY_NOW, BOOK_NOW, BUY_TICKETS, DONATE, DOWNLOAD, GET_NOW, INSTALL_NOW, LISTEN, MORE, OPEN_APP, ORDER_NOW, PLAY, READ, RESPOND, SHOP_NOW, SHOW, SHOWTIMES, SIGN_UP, TRY, USE_APP, VIEW, WATCH

Fully Dynamic Collection Ad Creative

The Top Snap media will be a product picked dynamically based on the Product Catalog (product_set) like in an ordinary Dynamic Product Ad.

The 2-4 Creative Elements displayed at the bottom of the Top Snap are inserted via the Interaction Zone and picked dynamically based on the Product Catalog (product_set).

The collection_properties.default_fallback_interaction_type should match the interaction_type of the Creative Elements used in the Interaction Zone.

curl -X POST \
  -H "Authorization: Bearer meowmeowmeow" \
  -H "Content-Type: application/json" \
  -d '{"creatives":[{"ad_account_id":"82225ba6-7559-4000-9663-bace8adff5f8","name":"Dynamic Collection Ad with Dynamic Top Snap","type":"COLLECTION","headline":"Badger Supplies","brand_name":"Badger Tunneling","shareable":true,"render_type":"DYNAMIC","dynamic_render_properties":{"dynamic_template_id":"013cb00d-7b8a-467a-a6be-614c269dafe2","product_set_id":"b6d35541-d5b6-4e06-a400-03f9937392cc"},"collection_properties":{"interaction_zone_id":"51d12f07-8690-4a41-b201-6a99335bbaa2","default_fallback_interaction_type":"WEB_VIEW"}}]}'
  https://adsapi.snapchat.com/v1/adaccounts/82225ba6-7559-4000-9663-bace8adff5f8/creatives

{
  "request_status": "SUCCESS",
  "request_id": "5fda234d00ff02f5557aba61770001737e616473617069736300016275696c642d66306132623635382d312d3430392d3200010123",
  "creatives": [
    {
      "sub_request_status": "SUCCESS",
      "creative": {
        "id": "de8a165e-f031-4a94-a56b-d0b5b4e1c20f",
        "updated_at": "2020-12-16T15:10:05.566Z",
        "created_at": "2020-12-16T15:10:05.566Z",
        "name": "Dynamic Collection Ad with Dynamic Top Snap",
        "ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f8",
        "type": "COLLECTION",
        "packaging_status": "SUCCESS",
        "review_status": "PENDING_REVIEW",
        "shareable": true,
        "headline": "Badger Supplies",
        "brand_name": "Badger Tunneling",
        "render_type": "DYNAMIC",
        "dynamic_render_properties": {
          "dynamic_template_id": "013cb00d-7b8a-467a-a6be-614c269dafe2",
          "product_set_id": "b6d35541-d5b6-4e06-a400-03f9937392cc"
        },
        "top_snap_crop_position": "MIDDLE",
        "ad_product": "SNAP_AD",
        "collection_properties": {
          "interaction_zone_id": "51d12f07-8690-4a41-b201-6a99335bbaa2",
          "default_fallback_interaction_type": "WEB_VIEW"
        }
      }
    }
  ]
}

HTTP Request

POST https://adsapi.snapchat.com/v1/adaccounts/{ad_account_id}/creatives

Creative - Collection Creative with Dynamic Top Snap - Parameters

Attribute	Description	Required	Possible Values
ad_account_id	Ad Account ID	R
name	Creative name	R
type	Creative type	R	COLLECTION
headline	34 characters max	R
brand_name	25 characters max	R
shareable	Allow Users to Share with Friends	O	true (default), false
render_type	DYNAMIC	R
dynamic_render_properties.dynamic_template_id	Dynamic Template ID	R
dynamic_render_properties.product_set_id	Product Set ID used for Products	R
collection_properties.interaction_zone_id	Interaction Zone ID	R
collection_properties.default_fallback_interaction_type	Defines Interaction behaviour for the Creative	R	WEB_VIEW, APP_INSTALL, DEEP_LINK

Partly Dynamic Collection Ad

The Top Snap media is uploaded as a separate Media (image/video) and has its own set of attributes at the Creative level (WEB_VIEW, APP_INSTALL, DEEP_LINK), this attribute should match the interaction_type of the Creative Elements.

The 3-4 Creative Elements displayed at the bottom of the Top Snap are inserted via the Interaction Zone and picked dynamically based on the Product Catalog (product_set).

The collection_properties.default_fallback_interaction_type should match the interaction_type of the Creative Elements used in the Interaction Zone.

curl -X POST \
  -H "Authorization: Bearer meowmeowmeow" \
  -H "Content-Type: application/json" \
  -d '{"creatives":[{"ad_account_id":"82225ba6-7559-4000-9663-bace8adff5f8","name":"Dynamic Collection Ad with Static Top Snap","type":"COLLECTION","headline":"Badger Supplies","brand_name":"Badger Tunneling","shareable":true,"render_type":"STATIC","top_snap_media_id":"e02308fd-ab84-4b6e-8c71-4fe1fc2f1ae2","dynamic_render_properties":{"product_set_id":"b6d35541-d5b6-4e06-a400-03f9937392cc"},"collection_properties":{"interaction_zone_id":"51d12f07-8690-4a41-b201-6a99335bbaa2","default_fallback_interaction_type":"WEB_VIEW","web_view_properties":{"url":"https://www.example.com/bookingfolder/linkedpage.html","allow_snap_javascript_sdk":false,"use_immersive_mode":false,"deep_link_urls":[],"block_preload":false}}}]}'
  https://adsapi.snapchat.com/v1/adaccounts/82225ba6-7559-4000-9663-bace8adff5f8/creatives

{
  "request_status": "SUCCESS",
  "request_id": "5fda252200ff00ff08972bb0da7a0001737e616473617069736300016275696c642d66306132623635382d312d3430392d3200010119",
  "creatives": [
    {
      "sub_request_status": "SUCCESS",
      "creative": {
        "id": "8eec06bd-d3fd-4841-b330-d04b82dfd862",
        "updated_at": "2020-12-16T15:17:54.396Z",
        "created_at": "2020-12-16T15:17:54.396Z",
        "name": "Dynamic Collection Ad with Static Top Snap",
        "ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f8",
        "type": "COLLECTION",
        "packaging_status": "SUCCESS",
        "review_status": "PENDING_REVIEW",
        "shareable": true,
        "headline": "Badger Supplies",
        "brand_name": "Badger Tunneling",
        "render_type": "STATIC",
        "top_snap_media_id": "e02308fd-ab84-4b6e-8c71-4fe1fc2f1ae2",
        "dynamic_render_properties": {
          "product_set_id": "b6d35541-d5b6-4e06-a400-03f9937392cc"
        },
        "top_snap_crop_position": "MIDDLE",
        "ad_product": "SNAP_AD",
        "collection_properties": {
          "interaction_zone_id": "51d12f07-8690-4a41-b201-6a99335bbaa2",
          "default_fallback_interaction_type": "WEB_VIEW",
          "web_view_properties": {
            "url": "https://www.example.com/bookingfolder/linkedpage.html",
            "allow_snap_javascript_sdk": false,
            "use_immersive_mode": false,
            "deep_link_urls": [],
            "block_preload": false
          }
        }
      }
    }
  ]
}

HTTP Request

POST https://adsapi.snapchat.com/v1/adaccounts/{ad_account_id}/creatives

Creative - Collection Creative with uploaded Top Snap - Parameters

Attribute	Description	Required	Possible Values
ad_account_id	Ad Account ID	R
name	Creative name	R
type	Creative type	R	COLLECTION
headline	34 characters max	R
brand_name	25 characters max	R
shareable	Allow Users to Share with Friends	O	true (default), false
render_type		R	STATIC
top_snap_media_id	Media ID of Top Snap, the Media type can be either VIDEO or IMAGE	R
dynamic_render_properties.product_set_id	Product Set id	R
collection_properties.interaction_zone_id	Interaction Zone id	R
collection_properties.default_fallback_interaction_type	Defines Interaction behaviour for the Creative	R	WEB_VIEW, APP_INSTALL, DEEP_LINK

For a partly dynamic Collection Ad you need to specify the properties for the top snap, these properties are defined within the JSON of the collection_properties and

Webview attributes

Attribute	Description	Required	Possible Values
collection_properties.web_view_properties.url	Web view URL	R
collection_properties.web_view_properties.allow_snap_javascript_sdk		O	true, false (default)
collection_properties.web_view_properties.use_immersive_mode		O	true, false (default)
collection_properties.web_view_properties.block_preload	Block Snapchat from preloading the web page	O	true, false (default)

App Install attributes

| Attribute | Description | Required | | ------------------------------------------------------------ | --------------------------------------------------------------------------------------------------- | -------- | --- | | collection_properties.app_install_properties.app_name | App name | R | | | collection_properties.app_install_properties.ios_app_id | iOS App ID | R | | | collection_properties.app_install_properties.android_app_url | Google Play Store ID | R | | | collection_properties.app_install_properties.icon_media_id | Icon Media ID | R | | | collection_properties.app_install_properties.product_page_id | iOS App Store Custom Product Page ID | O | |

Deep Link attributes

Attribute	Description	Required	Possible Values
collection_properties.deep_link_properties.deep_link_uri	Deep link URL for App	R
collection_properties.deep_link_properties.app_name	App name	R
collection_properties.deep_link_properties.ios_app_id	iOS App ID	R
collection_properties.deep_link_properties.android_app_url	Google Play Store ID	R
collection_properties.deep_link_properties.icon_media_id	Icon Media ID	R
collection_properties.deep_link_properties.fallback_type	Behaviour for user that doesn’t have app installed	R	APP_INSTALL, WEB_SITE
collection_properties.deep_link_properties.web_view_fallback_url	Required if fallback_type is WEB_SITE	R
collection_properties.deep_link_properties.deep_link_uri	Deep link URL for App	R
collection_properties.deep_link_properties.product_page_id	iOS App Store Custom Product Page ID	O

Ad Squad

The Ad Squad follows the exact requirements of an Ad Squad used for Dynamic Product Ads, there are no additional parameters for using Dynamic Collection Ads. Refer Create Ad Squad

The Ad entity links the Creative and the Ad Squad together, the type and render_type needs to use the below specified values, the only attribute that differs from Dynamic Product Ads is the type attribute which needs to be set to the value COLLECTION.

curl -X POST \
  -H "Authorization: Bearer meowmeowmeow" \
  -H "Content-Type: application/json" \
  -d '{"ads":[{"id":"6fca9a40-08e9-44e4-8ac2-de40d604af1f","name":"Dynamic Collection Ad with Dynamic Top Snap","ad_squad_id":"ea47539a-dd29-4957-b24c-2624957fa7e7","creative_id":"de8a165e-f031-4a94-a56b-d0b5b4e1c20f","status":"ACTIVE","type":"COLLECTION","render_type":"DYNAMIC"}]}'
  https://adsapi.snapchat.com/v1/adsquads/ea47539a-dd29-4957-b24c-2624957fa7e7/ads

{
  "request_status": "SUCCESS",
  "request_id": "5fda26e300ff0eeb712b8d14d80001737e616473617069736300016275696c642d66306132623635382d312d3430392d3200010160",
  "ads": [
    {
      "sub_request_status": "SUCCESS",
      "ad": {
        "id": "e88eb5f7-d4da-4c8e-b1c8-d98f81ae3801",
        "updated_at": "2020-12-16T15:25:25.109Z",
        "created_at": "2020-12-16T15:25:25.109Z",
        "name": "Dynamic Collection Ad with Dynamic Top Snap",
        "ad_squad_id": "ea47539a-dd29-4957-b24c-2624957fa7e7",
        "creative_id": "de8a165e-f031-4a94-a56b-d0b5b4e1c20f",
        "status": "ACTIVE",
        "type": "COLLECTION",
        "render_type": "DYNAMIC",
        "review_status": "PENDING",
        "review_status_reasons": [],
        "delivery_status": [
          "INVALID_EFFECTIVE_INVALID",
          "INVALID_PENDING_REVIEW_STATUS"
        ]
      }
    }
  ]
}

Attribute	Description	Required	Possible Values
name	Ad name	R
ad_squad_id	Ad squad ID	R
creative_id	Creative ID	R
status	Ad status	R	ACTIVE, PAUSED
type	Ad type	R	COLLECTION
render_type	Rendering type	R	DYNAMIC

Please refer to the FAQ section for FAQs on Dynamic Collection Ads

Carousel and Slideshow Templates

The Dynamic Collection Ad supports two different Creative experiences via Dynamic Templates, these experiences are activated by specifying CAROUSEL or SLIDESHOW as the layout type.

layout	Description
CAROUSEL	Product images are displayed as thumbnails and rotated in a main image slot
SLIDESHOW	Product images are rotated in a main image slot

Example 1 - Create a CAROUSEL Dynamic Template

curl -X POST \
  -d '{"dynamic_templates": [{"ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f2","name": "Dynamic Collection Carousel Template","ios_url": "https://ads-interfaces.sc-cdn.net/adformats/templates/V2/index.html","android_url": "https://ads-interfaces.sc-cdn.net/adformats/templates/V2/index.html","layout": "CAROUSEL","text_fields": ["title","price"]}]}' \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer meowmeowmeow" \
  https://adsapi.snapchat.com/v1/adaccounts/22225ba6-7559-4000-9663-bace8adff5f2/dynamic_templates

The above command returns JSON structured like this:

{
  "request_status": "SUCCESS",
  "request_id": "5ee4011200ff030f7b28c958f70001737e616473617069736300016275696c642d32313965343130312d312d3335382d310001010a",
  "dynamic_templates": [
    {
      "sub_request_status": "SUCCESS",
      "dynamic_template": {
        "id": "a523ad2d-226a-40c1-8645-4420cac49b76",
        "updated_at": "2020-06-12T22:26:26.638Z",
        "created_at": "2020-06-12T22:26:26.638Z",
        "name": "Dynamic Collection Carousel Template",
        "ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f2",
        "ios_url": "https://ads-interfaces.sc-cdn.net/adformats/templates/V2/index.html",
        "android_url": "https://ads-interfaces.sc-cdn.net/adformats/templates/V2/index.html",
        "layout": "CAROUSEL",
        "text_fields": ["title", "price"]
      }
    }
  ]
}

This request creates a Dynamic Template for a Dynamic Collection Ad using the CAROUSEL layout.

HTTP Request

POST https://adsapi.snapchat.com/v1/adaccounts/{ad_account_id}/dynamic_templates

URL Parameters

Parameter	Description
ad_account_id	The ID of the Ad Account where the Dynamic Template will be created

Example 2 - Create a SLIDESHOW Dynamic Template

curl -X POST \
  -d '{"dynamic_templates": [{"ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f2","name": "Dynamic Collection Carousel Template","ios_url": "https://ads-interfaces.sc-cdn.net/adformats/templates/V2/index.html","android_url": "https://ads-interfaces.sc-cdn.net/adformats/templates/V2/index.html","layout": "SLIDESHOW","text_fields": ["title","price"]}]}' \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer meowmeowmeow" \
  https://adsapi.snapchat.com/v1/adaccounts/22225ba6-7559-4000-9663-bace8adff5f2/dynamic_templates

The above command returns JSON structured like this:

{
  "request_status": "SUCCESS",
  "request_id": "5ee4011200ff030f7b28c958f70001737e616473617069736300016275696c642d32313965343130312d312d3335382d310001010a",
  "dynamic_templates": [
    {
      "sub_request_status": "SUCCESS",
      "dynamic_template": {
        "id": "a523ad2d-226a-40c1-8645-4420cac49b76",
        "updated_at": "2020-06-12T22:26:26.638Z",
        "created_at": "2020-06-12T22:26:26.638Z",
        "name": "Dynamic Collection Carousel Template",
        "ad_account_id": "82225ba6-7559-4000-9663-bace8adff5f2",
        "ios_url": "https://ads-interfaces.sc-cdn.net/adformats/templates/V2/index.html",
        "android_url": "https://ads-interfaces.sc-cdn.net/adformats/templates/V2/index.html",
        "layout": "SLIDESHOW",
        "text_fields": ["title", "price"]
      }
    }
  ]
}

This request creates a Dynamic Template for a Dynamic Collection Ad using the CAROUSEL layout.

HTTP Request

POST https://adsapi.snapchat.com/v1/adaccounts/{ad_account_id}/dynamic_templates

URL Parameters

Parameter	Description
ad_account_id	The ID of the Ad Account where the Dynamic Template will be created

Showcase Experience

The Showcase Experience for DPA collection Ads is a new format which delivers a native commerce experience on Snapchat. It allows users to swipe up to a collection of products, rendered natively, for a seamless, delightful shopping experience.

The setup for the Showcase Experience is identical to the DPA collection ads setup with creative elements, interaction zones, ad squads and ad objects. The primary difference is in the setup of the creative object.

Showcase Creative

The showcase creative is a creative of type COLLECTION and render_type DYNAMIC. It contains a new property within collection_properties called showcase_properties.

curl -X POST \
  -H "Authorization: Bearer meowmeowmeow" \
  -H "Content-Type: application/json" \
  -d '{
        "creatives": [
        {
            "ad_account_id": "497979f0-ed17-4971-8288-0548abcdcbca",
            "name": "Dynamic Collection Ad with Dynamic Top Snap for showcase API",
            "type": "COLLECTION",
            "headline": "Badger Supplies",
            "brand_name": "Badger Tunneling",
            "shareable": true,
            "render_type": "DYNAMIC",
            "dynamic_render_properties":
            {
                "dynamic_template_id": "186491f9-abcd-4322-9bf5-42bc0b2a79b8",
                "product_set_id": "0ae60e22-5764-abcd-88ad-5f77f8f286dd"
            },
            "collection_properties":
            {
                "interaction_zone_id": "618ef9f7-abcd-abcd-abcd-9b2eda44eb04",
                "default_fallback_interaction_type": "SHOWCASE",
                "showcase_properties": {
                           "product_set_id": "0ae60e22-abcd-abcd-88ad-5f77f8f286dd",
                           "interaction_type": "WEB_VIEW",
                           "callout_text": "20% off",
                           "web_view_properties": {
                           "url": "http://www.bananas.com"
                           }
                       }
            }
        }]
    }'
    https://adsapi.snapchat.com/v1/adaccounts/497979f0-ed17-4971-8278-054883f1cbca/creatives

{
  "request_status": "SUCCESS",
  "request_id": "60bff16b00ff09d211e5b48ed40001737e616473617069736300016275696c642d63313332343265352d312d3435332d3000010155",
  "creatives": [
    {
      "sub_request_status": "SUCCESS",
      "creative": {
        "id": "5970d72e-abcd-abcd-90f8-496f6091bb3b",
        "updated_at": "2021-06-08T22:38:35.974Z",
        "created_at": "2021-06-08T22:38:35.974Z",
        "created_by_app_id": "faaabe40-abcd-abcd-abcd-b88f802dc3d2",
        "created_by_user": "9b50736f-abcd-abcd-abcd-21f99554aa31",
        "last_updated_by_app_id": "faaabe40-abcd-abcd-837d-b88f802dc3d2",
        "last_updated_by_user": "9b50736f-abcd-abcd-abcd-21f99554aa31",
        "name": "Dynamic Collection Ad with Dynamic Top Snap for showcase API",
        "ad_account_id": "497979f0-abcd-abcd-abcd-054883f1cbca",
        "type": "COLLECTION",
        "packaging_status": "SUCCESS",
        "review_status": "PENDING_REVIEW",
        "shareable": true,
        "headline": "Badger Supplies",
        "brand_name": "Badger Tunneling",
        "render_type": "DYNAMIC",
        "dynamic_render_properties": {
          "dynamic_template_id": "186491f9-abcd-abcd-abcd-42bc0b2a79b8",
          "product_set_id": "0ae60e22-abcd-abcd-abcd-5f77f8f286dd"
        },
        "top_snap_crop_position": "MIDDLE",
        "ad_product": "SNAP_AD",
        "collection_properties": {
          "interaction_zone_id": "618ef9f7-abcd-abcd-abcd-9b2eda44eb04",
          "default_fallback_interaction_type": "SHOWCASE",
          "showcase_properties": {
            "product_set_id": "0ae60e22-abcd-abcd-abcd-5f77f8f286dd",
            "interaction_type": "WEB_VIEW",
            "callout_text": "20% off",
            "web_view_properties": {
              "url": "http://www.baanas.com",
              "allow_snap_javascript_sdk": false,
              "use_immersive_mode": false,
              "deep_link_urls": [],
              "block_preload": false
            }
          }
        }
      }
    }
  ]
}

Property Name	Required	Description	Possible Values
product_set_id	R	The product set ID to be associated to generate the Showcase unit	Product set ID eg: 0ae60e22-5764-4d34-88ad-5f77f8f286ad
interaction_type	R		WEB_VIEW, DEEP_LINK
callout_text	O	Text shown in the banner at the top of the Showcase experience Max length: 30
web_view_properties	Required when interaction_type is web_view	Defines the url for “Shop Now” button Required when interaction_type == WEB_VIEW. Only url in web_view_properties can be used	refer to web_view_properties table
deep_link_properties	Required when interaction_type is deep_link	Defines the url for “Shop Now” button Required when interaction_type == DEEP_LINK. Only deeplinkUri, iosAppId, AndroidAppUrl and webViewFallbackUrl in deep_link_properties can be used. FallbackType must be WEB_SITE	refer to deep_link_properties table

Validations

Some important validations to take note of.

showcase_properties cannot be null
For Web_view and Deep_link interaction types, the corresponding web_view and deep_link Properties are required
The interaction_type in the creativeElement should match the interaction_type in showcase_properties
The product set ID must be the same in ad squad and the creative
Ad Squad type must be SNAP_ADS
The ad squad targeting must be set to US only
The ad squad optimization goal can be one of the following - IMPRESSIONS || SWIPES || VIDEO_VIEWS || VIDEO_VIEWS_15_SEC || PIXEL_PURCHASE || PIXEL_SIGNUP || PIXEL_PAGE_VIEW || PIXEL_ADD_TO_CART
The Ad Squad Billing Event must be IMPRESSIONS

Was this page helpful?

Yes

Product feed - Interaction support​

HTTP Request​

Creative Elements​

HTTP Request​

Creative Elements Parameters​

Interaction Zones​

HTTP Request​

Interaction Zones Parameters​

Fully Dynamic Collection Ad Creative​

HTTP Request​

Creative - Collection Creative with Dynamic Top Snap - Parameters​

Partly Dynamic Collection Ad​

HTTP Request​

Creative - Collection Creative with uploaded Top Snap - Parameters​

Webview attributes​

App Install attributes​

Deep Link attributes​

Ad Squad​

Ad​

Carousel and Slideshow Templates​

Example 1 - Create a CAROUSEL Dynamic Template​

HTTP Request​

URL Parameters​

Example 2 - Create a SLIDESHOW Dynamic Template​

HTTP Request​

URL Parameters​

Showcase Experience​

Showcase Creative​

Validations​

Product feed - Interaction support

HTTP Request

Creative Elements

HTTP Request

Creative Elements Parameters

Interaction Zones

HTTP Request

Interaction Zones Parameters

Fully Dynamic Collection Ad Creative

HTTP Request

Creative - Collection Creative with Dynamic Top Snap - Parameters

Partly Dynamic Collection Ad

HTTP Request

Creative - Collection Creative with uploaded Top Snap - Parameters

Webview attributes

App Install attributes

Deep Link attributes

Ad Squad

Ad

Carousel and Slideshow Templates

Example 1 - Create a CAROUSEL Dynamic Template

HTTP Request

URL Parameters

Example 2 - Create a SLIDESHOW Dynamic Template

HTTP Request

URL Parameters

Showcase Experience

Showcase Creative

Validations
