Multi Class Classification

The Multi Class Classification enables you to create your own Multi Class Classification Machine Learning model, quantize it and use it to trigger different effects in Lens Studio. This example comes with a Flower Classification model that allows users to classify flowers images into one of 103 classes, visualize the topK classes and their probabilities and trigger some effects once certain class is found.

Multi Class Classification example is available in Lens Studio Asset Library. Import the asset to your project, create new Orthographic camera and place the prefab under it.

Guide

You can skip to the Customizing Lens section if you’d like to use the Flower Classification Model. Or, if you already have a multi class classification model, you can skip down to the Importing Your Model section below.

Creating Machine Learning Model

This example relies on a machine learning model to predict the probability of a certain class. To create a model, you’ll need a machine learning training code: code that describes how the model is trained (this is sometimes referred to as a notebook).

Example notebook provided allows you to:

• Train an image classification model with Keras and TFLite model maker.
• Transfer weights pre-trained on ImageNet and add data augmentation, normalization and dropout to make our model more robust.
• Learn about different types of quantization, such as post training quantization and quantization aware training, and apply them to the model.

In this example, we are going to use the oxford_flowers102 dataset. It contains 102 common flower categories commonly found in the UK. Notebook will download dataset and all the necessary libraries for you.

Training Your Model​

There are many different ways you can train your model. For our example, we will use Google Colaboratory.

To see other ways of training, please take a look at the ML Frameworks page for more information.

Download notebook from snapml-templates repository. Then head over to Google Colaboratory, select the Upload tab, and drag the downloaded python notebook into the upload area.

Importing Model

After you successfully run the notebook from the previous chapter you should have these 3 files downloaded to your machine:

With Lens Studio project open drag these files into the Asset Browser panel:

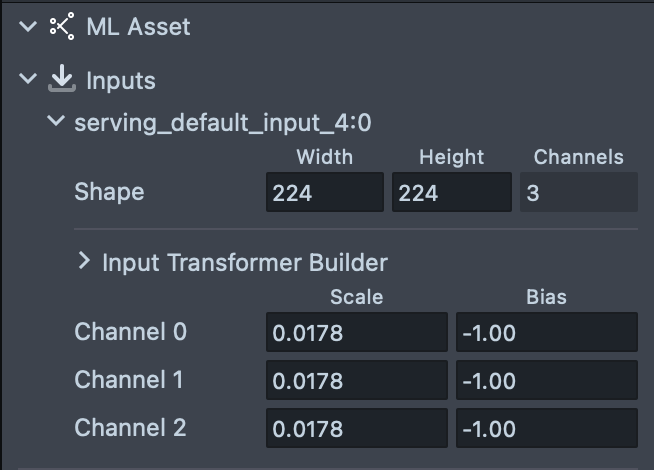

Please note that Lens Studio reads pixel values between 0 and 255 and our model uses range [-1, 1] we need to set the scale and bias when importing our model. To transform [0, 255] range to [-1, 1] we need to divide 1 by 128 and subtract to, that results in the next setting:

We will explain how to replace labels and set up MLComponent in the next section.

Customizing Lens

Let's take a look at the example in Lens Studio:

SquareTextureCrop

The SquareTextureCrop script allows modifying a Screen Crop Texture asset in a certain way. Specifically, it allows you to cut out a square piece of the input texture as displayed on a picture below. It allows to pass an image of an aspect 1:1 to the ml model that is often a kind of input image the model is trained on.

Crop Texture is a Screen Crop Texture to apply crop to.

Type:

• Screen Center: Crops square from the center of the screen.
• User Tap: Crops square around the user tap.
• Scale Multiplier: a crop region scale multiplier.

Use the Rectangle Setter component on a Screen Image that displays your crop texture to place it to the same screen region it was cropped from.

Now we can use the modified ScreenCropTexture asset in components ans materials as any other texture.

Setting up Model and Labels

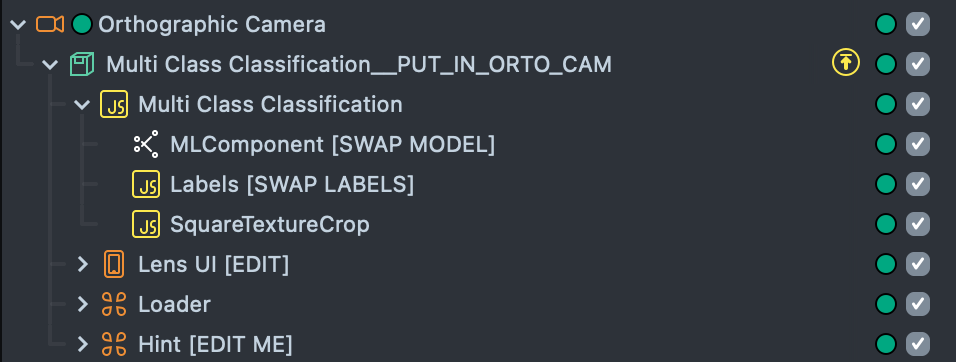

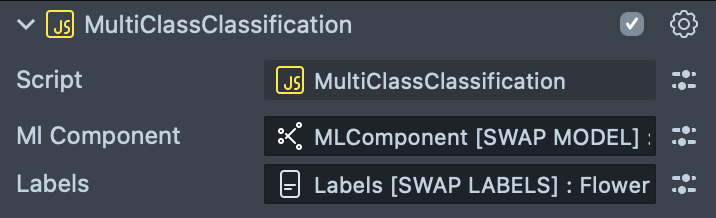

The MultiClassClassification script contains references to two main components that contain our setup:

ML Component that controls a multi classification machine learning model.

Labels is a script that contains our classes labels.

If you don’t specify labels - indices will be used instead.

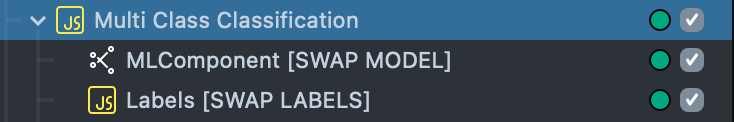

Let’s take a look at these components before we go to the further settings and see how we can replace models and labels with the ones generated in the previous part of the guide.

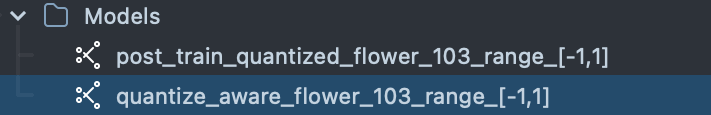

At this point you should have two models imported to the Asset Browser panel:

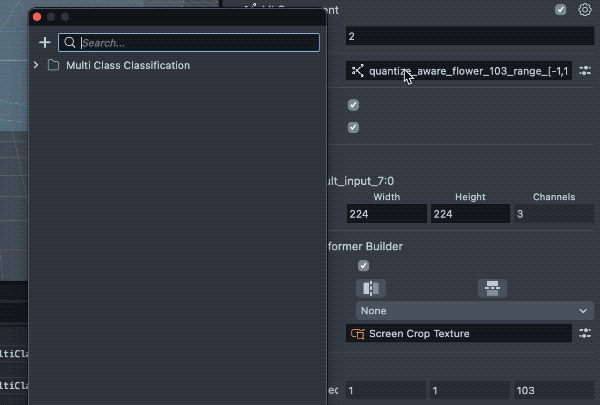

Select the MLComponent scene object, set the model by clicking on the Model field of the MLComponent component and selecting the model of your choice in the popup dialog.

Click on the Inputs, select Texture field and select the Screen Crop Texture asset as it gets reset after swapping a model.

For this example we are going to use auto settings:

• Auto Build: means that the model will be built as soon as the lens is loaded.
• Auto Run: means that the model will be run on every frame before the script update event.

Learn more about how you can run 'MLComponent' on different events (for example using a Behavior script) and with different settings in MLComponent Overview.

Modifying labels

Along with the model files you have a .json file with labels downloaded. Open the FlowerClassificationLabels [OPEN ME].js file in the script editor, copy and paste the contents of the downloaded json file as shown below:

script.labels = [contents of  the .json file]

Save your file.

Now that we have the model and labels configured, let's get back to the MultiClassClassification script.

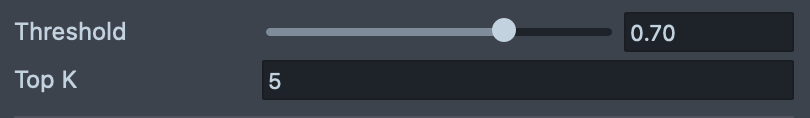

• Threshold is a value that has to be passed in order for the class to be detected.
• Top K is the number of the classes with the highest probability to display.

Setting up Responses

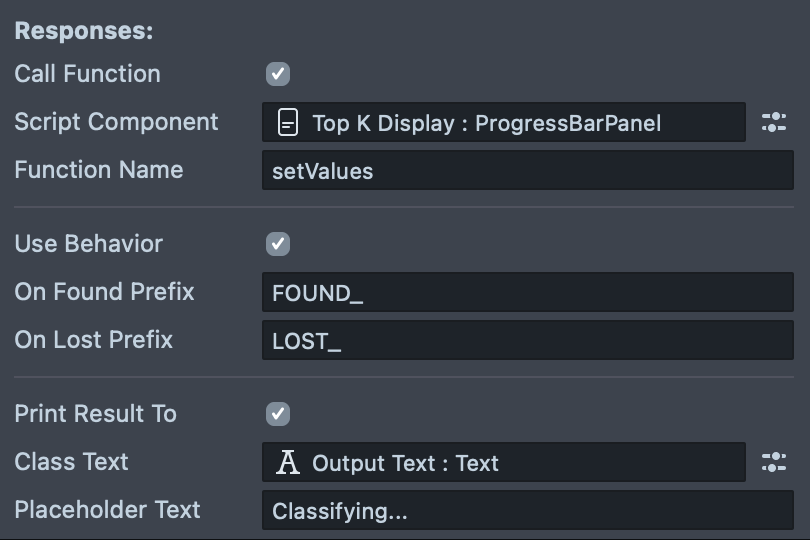

Call Function: enable this checkbox to call the function of another script and pass in probabilities and labels of topK classes with highest probabilities.

• Script Component: script component with a function.
• Function Name: a name of the function.

Example

script.printValues = function (values, labels) {
  for (var i = 0; i < values.length; i++) {
    print('Label:' + labels[i] + ', prob:' + values[i]);
  }
};

See ProgressBasPanel script for more examples.

Use Behavior: enable to call custom Behavior script trigger.

• OnFoundPrefix: a string added to the name of a found class to form a custom Behavior trigger name
• OnLostPrefix: a string added to the name of a class that was lost to form a custom Behavior trigger name.

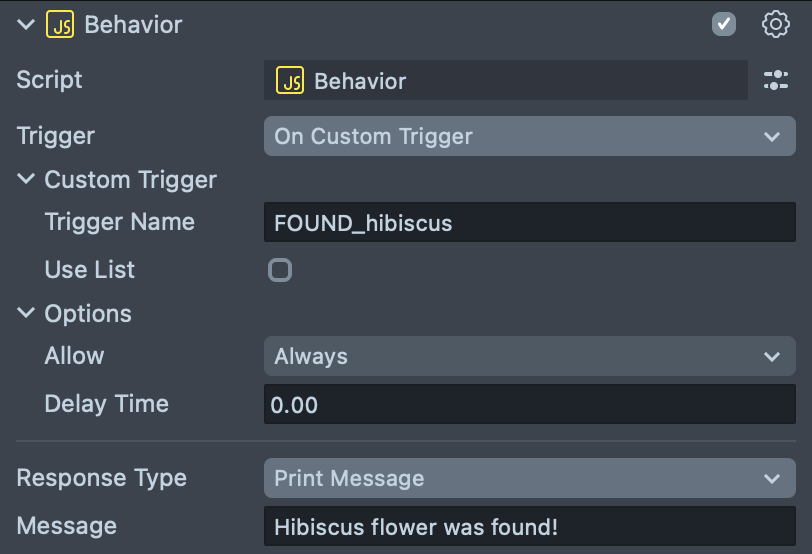

Example - print text once flower was found

Print Result To: enable to simply print the found class to the Text component.

• Class Text: Text component to use.
• Placeholder Text: text to display when none of the classes' probability is passing the probability threshold.

Progress Bar and Progress Bar Panel

Select the Top K Display Scene Object under the Orthographic camera. ProgressBarPanel script allows user to instantiate a certain number of objects that visualize label and probability and update them via script API.

If you imported an asset and your UI looks small and misplaced - switch Canvas settings on Orthographic camera to World unit type or tweak inputs of the Layout Grid script.

Progress Bar Prefab: an object prefab that contains several Scene Objects and a ProgressBar script.

The ProgressBarPanel setup can be used outside of this project for easy visualization of your data. Simply pass in an array of labels and values using this function:

/**
 *
 * @param {float[]} values
 * @param {string[]} labels
 */
function setValues(values, labels) {
  for (var i = 0; i < Math.min(progressBars.length, values.length); i++) {
    progressBars[i].value = values[i];
    progressBars[i].label = labels[i];
  }
}

Previewing Your Lens

You’re now ready to preview your Lens! To preview your Lens in Snapchat, follow the Pairing to Snapchat guide.
