Spatial Anchors

Overview

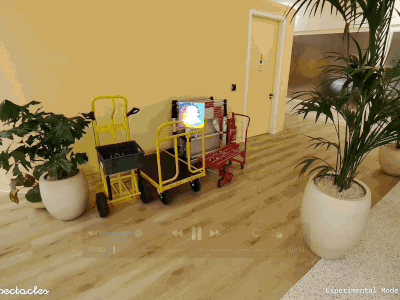

Anchors in augmented reality enable the creation of immersive experiences by allowing users to seamlessly integrate virtual content with the real world. These anchors serve as fixed points that ensure digital elements remain in place as users move around their environment.

For instance, in the realm of interior design, AR anchors can facilitate virtual furniture placement, enabling users to visualize how different pieces would look in their homes before making a purchase. Another practical application is in creating interactive instructional Lenses that overlay step-by-step guides directly on household appliances, making it easier for users to operate them without needing to consult a manual.

The Anchors API exposes this functionality to developers. The AnchorModule is the entrypoint to the overall anchoring system, and the first anchor type that can be used is WorldAnchor.

WorldAnchor is the only anchor type available today. Future releases will include more anchor types.

Getting Started

Prerequisites

Lens Studio v5.3.0 or later
Spectacles OS v5.58.6621 or later

Package Installation

Install and import the Spatial Anchors from the Asset Library.

After installing Spatial Anchors from the Asset Library, you will need to import it into your project. For more information, please refer to the documentation.

This guide assumes that the scripts you create will be located in the same directory as the Spatial Anchors package.

AnchorModule Configuration

This guide will help you quickly integrate and manage augmented reality anchors using the AnchorModule, AnchorSession, and WorldAnchor components.

The AnchorModule is the starting point for managing anchors. It allows you to create an AnchorSession within a specified area.

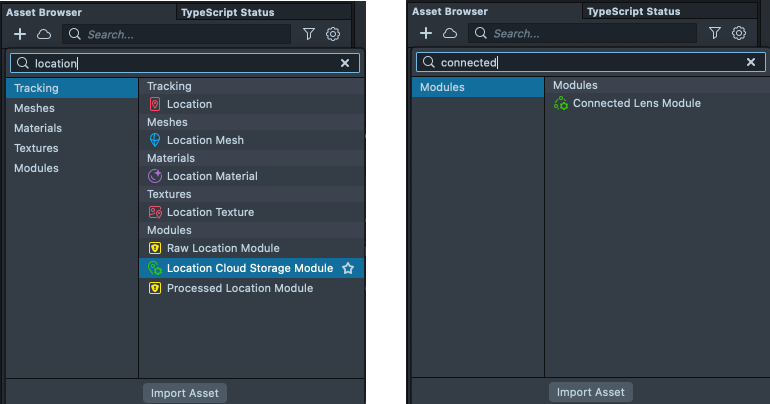

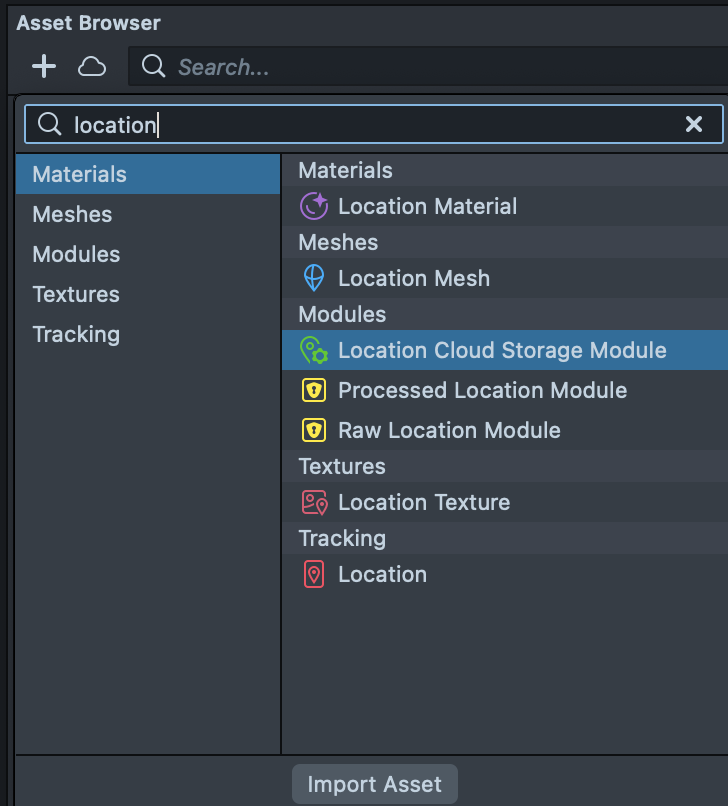

Add the following Assets by clicking on the + sign in Asset Browser, searching for these components, and selecting them:

Location Cloud Storage Module
Connected Lens Module

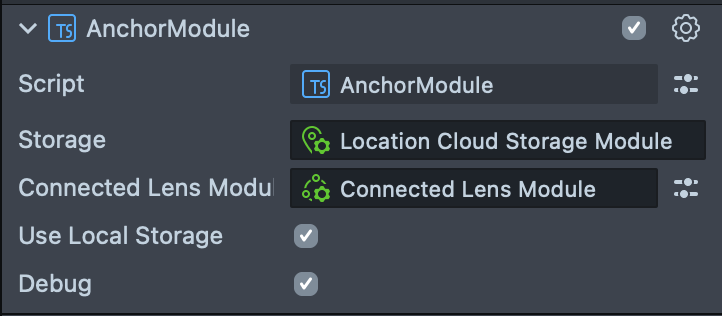

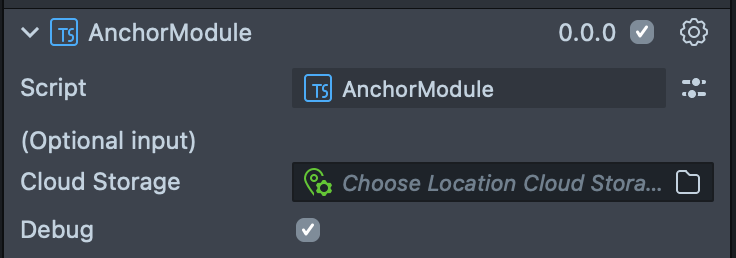

Now add AnchorsModule to the scene. Inside the Anchors package in Asset Browser, find AnchorModule and drag it into your Scene. Setup the AnchorModule by selecting it in your Scene and setting its dependencies using the modules we just installed:

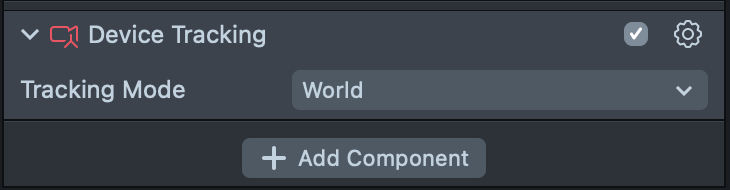

Finally, ensure your camera is properly set up. Select your camera in the Scene Hierarchy and add Device Tracking to it, and set the Device Tracking mode to World.

Starting an AnchorSession

The next step is to obtain an AnchorSession, which enables you to scan for and place anchors. Create a new script that takes AnchorModule as an input. Ensure your script appears after AnchorModule in the Scene Hierarchy to ensure AnchorModule is initialized first.

In this example, we set up the onAnchorNearby callback to be invoked whenever a new Anchor is found. Note that we haven’t placed any anchors yet, so none will be found!

import {
  AnchorSession,
  AnchorSessionOptions,
} from './Spatial Anchors/AnchorSession';

import { Anchor } from './Spatial Anchors/Anchor';
import { AnchorModule } from './Spatial Anchors/AnchorModule';

@component
export class AnchorPlacementController extends BaseScriptComponent {
  @input anchorModule: AnchorModule;

  private anchorSession?: AnchorSession;

  async onAwake() {
    this.createEvent('OnStartEvent').bind(() => {
      this.onStart();
    });
  }

  async onStart() {
    // Set up the AnchorSession options to scan for World Anchors
    const anchorSessionOptions = new AnchorSessionOptions();
    anchorSessionOptions.scanForWorldAnchors = true;

    // Start scanning for anchors
    this.anchorSession =
      await this.anchorModule.openSession(anchorSessionOptions);

    // Listen for anchors
    this.anchorSession.onAnchorNearby.add(this.onAnchorNearby.bind(this));
  }

  public onAnchorNearby(anchor: Anchor) {
    // Invoked when a new Anchor is found
  }
}

Placing an Anchor

There are many ways to place an anchor. We’ll use a simple example where we enable the user to anchor a 3D cube in front of them by pinching a button. To create the button first install the SpectaclesInteractionKit and add a PinchButton to your scene. Wire up the PinchButton such that when it’s pinched, a WorldAnchor is created and a cube is attached to the new anchor.

Expanding from the example above:

import {
  AnchorSession,
  AnchorSessionOptions,
} from './Spatial Anchors/AnchorSession';

import { Anchor } from './Spatial Anchors/Anchor';
import { AnchorComponent } from './Spatial Anchors/AnchorComponent';
import { AnchorModule } from './Spatial Anchors/AnchorModule';
import { PinchButton } from './SpectaclesInteractionKit/Components/UI/PinchButton/PinchButton';

@component
export class AnchorPlacementController extends BaseScriptComponent {
  @input anchorModule: AnchorModule;
  @input createAnchorButton: PinchButton;

  @input camera: SceneObject;
  @input prefab: ObjectPrefab;

  private anchorSession?: AnchorSession;

  async onAwake() {
    this.createEvent('OnStartEvent').bind(() => {
      this.onStart();
    });
  }

  async onStart() {
    this.createAnchorButton.onButtonPinched.add(() => {
      this.createAnchor();
    });

    // Set up the AnchorSession options to scan for World Anchors
    const anchorSessionOptions = new AnchorSessionOptions();
    anchorSessionOptions.scanForWorldAnchors = true;

    // Start scanning for anchors
    this.anchorSession =
      await this.anchorModule.openSession(anchorSessionOptions);

    // Listen for nearby anchors
    this.anchorSession.onAnchorNearby.add(this.onAnchorNearby.bind(this));
  }

  public onAnchorNearby(anchor: Anchor) {
    // Invoked when a new Anchor is found
  }

  private async createAnchor() {
    // Compute the anchor position 5 units in front of user
    let toWorldFromDevice = this.camera.getTransform().getWorldTransform();
    let anchorPosition = toWorldFromDevice.mult(
      mat4.fromTranslation(new vec3(0, 0, -5))
    );

    // Create the anchor
    let anchor = await this.anchorSession.createWorldAnchor(anchorPosition);

    // Create the object and attach it to the anchor
    this.attachNewObjectToAnchor(anchor);

    // Save the anchor so it's loaded in future sessions
    try {
      this.anchorSession.saveAnchor(anchor);
    } catch (error) {
      print('Error saving anchor: ' + error);
    }
  }

  private attachNewObjectToAnchor(anchor: Anchor) {
    // Create a new object from the prefab
    let object: SceneObject = this.prefab.instantiate(this.getSceneObject());
    object.setParent(this.getSceneObject());

    // Associate the anchor with the object by adding an AnchorComponent to the
    // object and setting the anchor in the AnchorComponent.
    let anchorComponent = object.createComponent(
      AnchorComponent.getTypeName()
    ) as AnchorComponent;
    anchorComponent.anchor = anchor;
  }
}

In the code above, when the button is pinched a new anchor is created in front of the user (via createAnchor); then, an object is created and attached to said anchor. The object here can be any SceneObject; here we use an injected prefab.

Scanning for Anchors

Anchors can be saved so that when we return to a Lens those anchors are found again. The anchors will be recognized by the onAnchorNearby method. In the example above, we saved the anchor by calling this.anchorSession.saveAnchor(anchor). Because we attached an onAnchorNearby callback to our AnchorSession, that saved anchor will be recovered the next time we run the code and Spectacles successfully localizes the user.

You can save anchors, but we do not save the content associated with anchors. This means that if we want to recover the objects that we had associated with an anchor in a previous session, we have to recreate those objects.

import {
  AnchorSession,
  AnchorSessionOptions,
} from './Spatial Anchors/AnchorSession';

import { Anchor } from './Spatial Anchors/Anchor';
import { AnchorComponent } from './Spatial Anchors/AnchorComponent';
import { AnchorModule } from './Spatial Anchors/AnchorModule';
import { PinchButton } from './SpectaclesInteractionKit/Components/UI/PinchButton/PinchButton';

@component
export class AnchorPlacementController extends BaseScriptComponent {
  @input anchorModule: AnchorModule;
  @input createAnchorButton: PinchButton;

  @input camera: SceneObject;
  @input prefab: ObjectPrefab;

  private anchorSession?: AnchorSession;

  async onAwake() {
    this.createEvent('OnStartEvent').bind(() => {
      this.onStart();
    });
  }

  async onStart() {
    this.createAnchorButton.onButtonPinched.add(() => {
      this.createAnchor();
    });

    // Set up the AnchorSession options to scan for World Anchors
    const anchorSessionOptions = new AnchorSessionOptions();
    anchorSessionOptions.scanForWorldAnchors = true;

    // Start scanning for anchors
    this.anchorSession =
      await this.anchorModule.openSession(anchorSessionOptions);

    // Listen for nearby anchors
    this.anchorSession.onAnchorNearby.add(this.onAnchorNearby.bind(this));
  }

  public onAnchorNearby(anchor: Anchor) {
    print('Anchor found: ' + anchor.id);
    this.attachNewObjectToAnchor(anchor);
  }

  private async createAnchor() {
    // Compute the anchor position 5 units in front of user
    let toWorldFromDevice = this.camera.getTransform().getWorldTransform();
    let anchorPosition = toWorldFromDevice.mult(
      mat4.fromTranslation(new vec3(0, 0, -5))
    );

    // Create the anchor
    let anchor = await this.anchorSession.createWorldAnchor(anchorPosition);

    // Create the object and attach it to the anchor
    this.attachNewObjectToAnchor(anchor);

    // Save the anchor so it's loaded in future sessions
    try {
      this.anchorSession.saveAnchor(anchor);
    } catch (error) {
      print('Error saving anchor: ' + error);
    }
  }

  private attachNewObjectToAnchor(anchor: Anchor) {
    // Create a new object from the prefab
    let object: SceneObject = this.prefab.instantiate(this.getSceneObject());
    object.setParent(this.getSceneObject());

    // Associate the anchor with the object by adding an AnchorComponent to the
    // object and setting the anchor in the AnchorComponent.
    let anchorComponent = object.createComponent(
      AnchorComponent.getTypeName()
    ) as AnchorComponent;
    anchorComponent.anchor = anchor;
  }
}

Additional Concepts

Updating Anchors

Anchors can be updated or deleted. To change the pose (position and rotation) of a WorldAnchor, for example:

anchor.toWorldFromAnchor = pose; // Set to some new mat4 pose
try {
  this.anchorSession.saveAnchor(anchor);
} catch (error) {
  print('Error saving anchor: ' + error);
}

Finally, deletion is accomplished by invoking anchorSession.deleteAnchor(anchor).

Cleaning Up

When you're done, ensure you close the session to stop tracking:

await anchorSession.close();

Area

An area is the scope for persistent anchors using a user-supplied string, such as "living-room." When users create anchors within this area, those anchors will automatically be restored the next time they return. Each area is specific to a particular lens, ensuring no interaction occurs between areas with the same name across different lenses.

Persistence

The WorldAnchor has the capability to persist across sessions. When users create these anchors, they are saved automatically. You can update these anchors using updateAnchor or remove them with removeAnchor in the AnchorModule. It's important to remember that while anchors persist, the associated content does not. Include logic to re-associate content with the anchor when it is restored. For instance, if a user attaches virtual weather information to an anchor at their front door, ensure that this information is re-attached when the anchor is restored in future sessions.

API Reference

AnchorModule

Signature	Type	Description
METHODS
openSession	function (options: AnchorSessionOptions) → Promise<AnchorSession>	Open an `AnchorSession` and begin scanning for anchors, given parameters in `AnchorSessionOptions`. The returned `AnchorSession` will manage the creation, recognition, and updating of anchors.

AnchorSession

The AnchorSession fires events upon the recognition of anchors. When an anchor is recognized, it is handed to you, allowing you to associate it with a SceneObject using the AnchorComponent. Anchors managed by the AnchorModule are divided into two categories: those recognized and provided by the system (SystemAnchor) and those modifiable by the user (UserAnchor). In this release, one anchor type is introduced: WorldAnchor, which derives from UserAnchor.

Signature	Type	Description
METHODS
close	function () → Promise<void>	End scanning. No further operations on this session.
reset	function () → Promise<void>	Clear the session: e.g. forget previous anchors here. Resets the ability to track in the current area.
updateAnchor	function (anchor: UserAnchor) → Promise<UserAnchor>	Update the given anchor. Required to persist changes made to anchors (e.g. changing `toWorldFromAnchor`). Note: anchors are automatically saved upon creation, so this does not need to be called for new anchors to be persisted.
deleteAnchor	function (anchor: UserAnchor) → Promise<UserAnchor>	Remove the given anchor. The anchor will no longer be loaded by scan.
createWorldAnchor	function (toWorldFromAnchor: mat4) → Promise<WorldAnchor>	Create an anchor with the specified world pose. 'World' is the coordinate system of scene graph root, compatible with a child rendering camera positioned by `DeviceTracking` set to world.
PROPERTIES
area	string	The area to which anchors of this session are scoped.
onAnchorNearby	event → (anchor: Anchor)	Callback invoked when scan has found a nearby anchor.

AnchorSessionOptions

Signature	Type	Description
METHODS
create()	Static function
PROPERTIES
scanForWorldAnchors	bool	True to scan for world anchors. Defaults to true.
area	string	If supplied, scopes anchors returned to the specified area. Otherwise uses a default area.

Anchor

Base class for anchors.

The state moves from <initializing>
→ (ready / error) [once per lens session]
→ (found / not found) [potentially many times per ‘ready’]

Signature	Type	Description
PROPERTIES
id	string	ID of anchor is guaranteed to be unique within area. May be used by lenses to look up content they may have associated with the anchor.
toWorldFromAnchor	mat4	Pose of the anchor in world space. Only valid when state == Found.
state	State enum { Initializing, Ready, Found, Lost, Error }	Current tracking state.
onFound	event → ()	Invoked when the anchor is found. At this point content can be associated with the anchor.
onLost	event → ()	Invoked when the anchor is lost; e.g. it is no longer reliably being tracked. Content should be removed.
onReady	event → ()	We have all the information needed to track. Used, e.g., to end a ‘loading’ animation for this anchor. `onError` will never fire this session.
onError	event → (error: Error)	If fired, is not recoverable. `onFound` will never be called this lens session.

WorldAnchor

World anchors can be created by developers by specifying a pose for the anchor in world space.

Signature	Type	Description
PROPERTIES
toWorldFromAnchor	mat4	Pose of the anchor in world space.

AnchorComponent

Component that ties virtual content (attached to a SceneObject) to the physical world (via an Anchor`). More technically, this is a Component that applies a pose supplied from an Anchor to a SceneObject.

Signature	Type	Description
PROPERTIES
anchor	Anchor	The anchor that the parent SceneObject should track against.
