Web View

Overview​

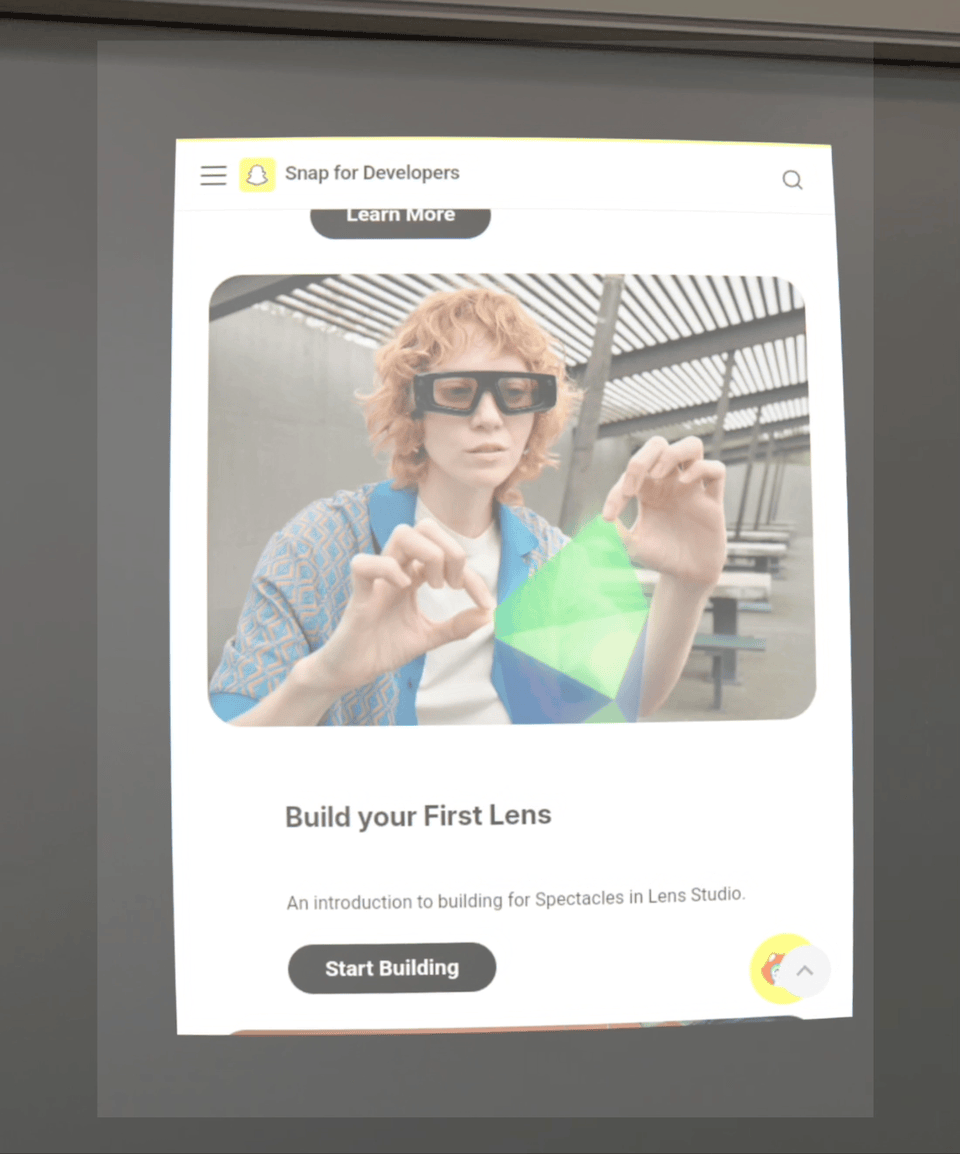

The WebView script allows creators to host web content within their lens. Combined with Spectacles Interaction Kit (SIK) users will be able to fully interact with the web content through a touch interface as well as mobile keyboard for text input.

WebView’s are a way to embed web content and not a fully fledged browser. This means that while most web capabilities are supported there are cases where compatibility might not be possible.

At this time only HTTPS content is supported.

Camera access is not supported for web content. Microphone access is not supported for web content. If you open a website that requests camera or microphone access it will not be supported.

Use Cases​

Some common use cases for the WebView script could be:

  • Linking to existing content for your Lens
    • What’s new page for your lens
    • Contact us page
    • Embedded videos
    • Help documentation
  • Add videos from websites such as YouTube
  • Open an existing Web Application

At this time all web content must be hosted externally. WebView script does not allow for loading HTML content from the Lens itself.

A Lens can create multiple WebView’s but the platform may suspend a webview to free up resources. A suspended WebView can be resumed by the user by interacting with it. This will cause a page reload. When a WebView is suspended, the last rendered version of the page is displayed as a snapshot.

At this time, WebView is only supported on the Spectacles Device. It is not supported on Snapchat or Lens Studio.

Getting Started​

Prerequisites​

  • Lens Studio v5.3.0 or later
  • Spectacles OS v5.58.621 or later

Initial Setup​

It is strongly recommended that creators start with the WebView from the Asset Library. This handles integration with the Spectacles Interaction Kit as well as ensuring that the WebView life cycle events are correctly handled. This guide will cover usage with SIK + WebView script.

WebView has a dependency on SIK but SIK is not required to be in the Scene Hierarchy if no input is necessary in which case a simplified version of the WebView script could be used instead. Please refer to the API documentation for more information.

Create a new Spectacles Lens Project​

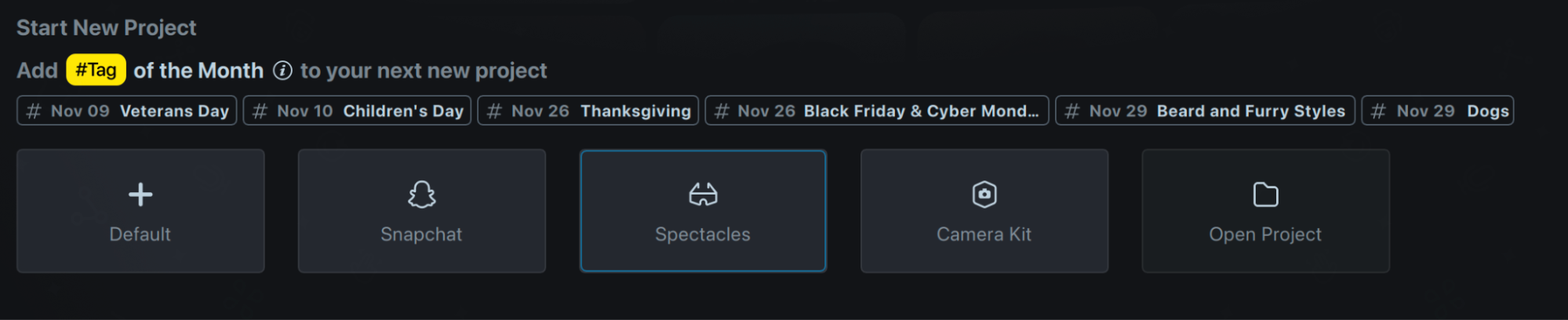

Select the Spectacles template from the new project window. This will ensure that the project has a default Spectacles Interaction Kit installed.

Having the Spectacles Interaction Kit Examples is optional. If you are already familiar with SIK you can remove the examples.

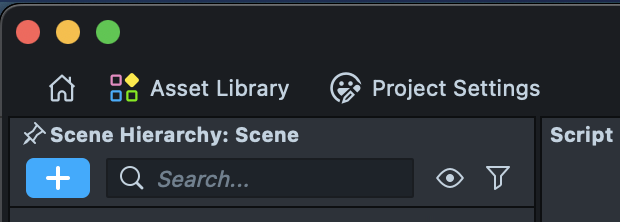

Project Settings​

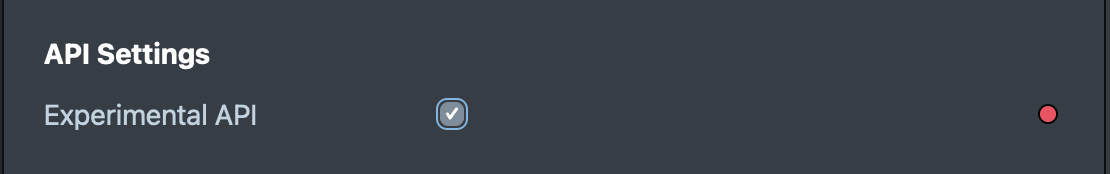

WebView is still an experimental feature and is subject to change. This means that the experimental flag is necessary in order to access the APIs.

Install WebView Package​

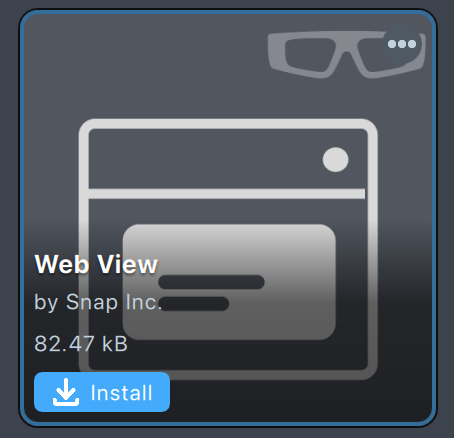

Install and import the WebView from the Asset Library.

After installing WebView from the Asset Library, you will need to import it into your project. For more information, please refer to the documentation.

Package Setup​

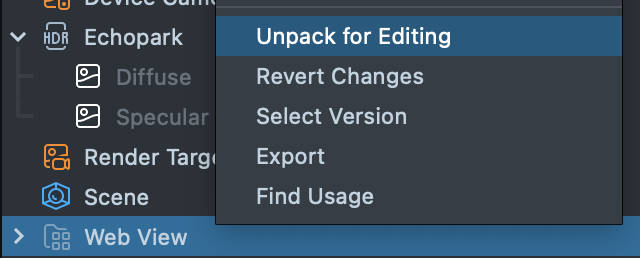

After installing the WebView package, you need to perform a few additional steps. Right-click on the WebView package and select Unpack for Editing.

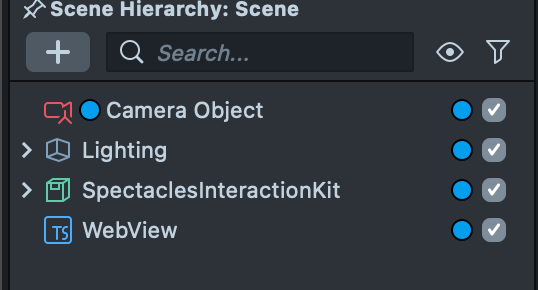

Setup Scene Hierarchy​

  1. Create a new empty Scene Object. Make sure the Scene Object is under the hiearchy of Spectacles Interaction Kit.

  2. Open Scene Object in Inspector view.

  3. Drag and drop the WebView Script from the Asset Browser to SceneObject.

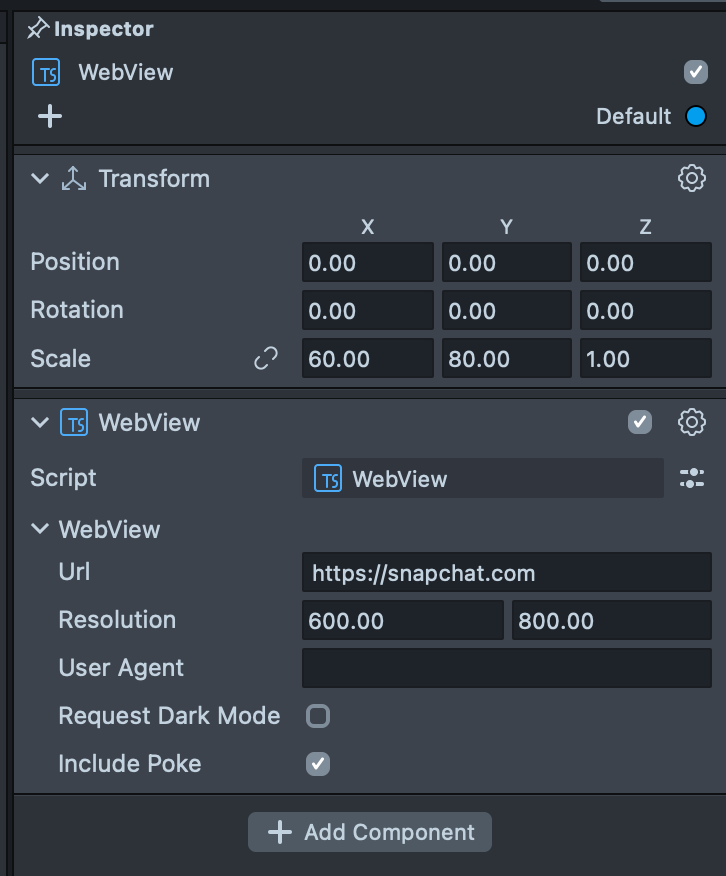

Under the WebView settings the following can be changed:

  • URL: If the desired URL is known or fixed, it can be specified here. Otherwise it can be left blank and set through scripts at runtime.
  • Resolution: The desired web page resolution in pixels. This is separate from the Spectacles display resolution. This must be set before initialization. The maximum resolution supported is 2048x2048. This can not be changed after initialization.
  • User-Agent: If a custom user-agent is required it can be set here or at runtime through the script api.
  • Include Poke: WebView relies on indirect targeting using hand tracking and cursor. It can also support direct targeting using finger tracking when this setting is enabled. This does not disable indirect targeting.

WebView Render Scale​

Even though the specified resolution is used to render the Web Content to a texture. The output size must still be configured in the Scene Hierarchy. In the WebView script a RenderMeshVisual is used to render the Texture onto. This means that the Transform Scale can be used to adjust the visual size in the scene.

The WebPage Resolution aspect ratio must match the Scale aspect ratio in the XY plane.

  • In the following example, the WebPage Resolution is set to 600x800, which is a 0.75 ratio.

  • Next set the scale to match this ratio. In the above example 60x80 is used for the XY plane.

    A unit in Lens Studio results in cm. This results in 60cm x 80cm WebView in AR space.

  • In most cases using values based on the 100cm scale will give a comfortable render size. As long as the aspect ratio is correct, any magnitude of scale will function correctly.
