Camera Module

Spectacles offers APIs to retrieve the camera frame – what the user is currently seeing – to better understand and build experiences around the user’s real-world environment.

Requesting + Receiving Frames​

The CameraModule enables developers to request the camera frame. There are two types of frame requests: camera frame requests and still image requests. Camera frame requests deliver a steady stream of images, albeit at lower quality: this approach is recommended for applications that need video-like consistency in frame delivery. Still image requests, on the other hand, take longer to complete but result in a higher resolution image -- this is the preferred approach for applications that need high quality images for processing.

Camera Frame Requests​

To begin receiving camera frames, construct a CameraRequest, specifying the exact camera of interest (Spectacles have multiple cameras from which to choose: Left_Color, Right_Color, or Default_Color) and the desired resolution of the received frames (via imageSmallerDimension, which indicates the size in pixels of the smallest dimension to return).

For example:

this.createEvent('OnStartEvent').bind(() => {
  const cameraModule: CameraModule = require('LensStudio:CameraModule');
  const cameraRequest = CameraModule.createCameraRequest();
  cameraRequest.cameraId = CameraModule.CameraId.Left_Color;
  const cameraTexture = cameraModule.requestCamera(cameraRequest);
});

createCameraRequest may not be invoked inside onAwake event.

The requestCamera method takes a CameraRequest and returns a Texture. The texture contains the opaque handle that refers to the underlying camera data, and can be used as an input into an MLComponent or uploaded to a remote service via RemoteMediaModule.

To receive a notification each time the frame is updated, use the CameraTextureProvider which can be accessed via cameraTexture.control. The CameraTextureProvider has an onNewFrame event that can be utilized as shown below:

const onNewFrame = (this.cameraTexture.control as CameraTextureProvider)
  .onNewFrame;
const registration = onNewFrame.add((frame: CameraModule.CameraFrame) => {
  // Process the frame
});

this.createEvent('OnDestroyEvent').bind(() => {
  onNewFrame.remove(registration);
});

Still Image Requests​

To request still image frames, create an ImageRequest from the CameraModule, then invoke requestImage. The requestImage method is asynchronous and will return an ImageFrame when complete, which contains the resulting image in a Texture, as well as a timestamp if needed.

Still image requests are not supported in the Lens Studio editor. Please run the Lens on Spectacles.

@component
export class StillImageRequest extends BaseScriptComponent {
  @input
  image: Image;

  private cameraModule: CameraModule = require('LensStudio:CameraModule');

  onAwake() {
    this.requestStillImage();
  }

  async requestStillImage() {
    const imageRequest = CameraModule.createImageRequest();

    try {
      const imageFrame: ImageFrame =
        await this.cameraModule.requestImage(imageRequest);

      // E.g, use the texture in some visual
      this.image.mainPass.baseTex = imageFrame.texture;
    } catch (error) {
      print('Still image request failed: ' + error);
    }
  }
}

Getting Camera Information​

The Camera API also provides information about the cameras used on Spectacles in order to understand how the camera transforms 3D space into 2D space. This information is provided by the DeviceCamera which is accessible via the DeviceInfoSystem.

// Select the camera

this.createEvent('OnStartEvent').bind(() => {
  const camera = global.deviceInfoSystem.getTrackingCameraForId(
    CameraModule.CameraId.Left_Color
  );

  // Retrieve camera properties
  const focalLength = camera.focalLength;
  const principalPoint = camera.principalPoint;
  const resolution = camera.resolution;
  const pose = camera.pose;
});

Additionally, DeviceCamera includes project and unproject methods that makes it easier to convert 3D points into 2D points and vice versa.

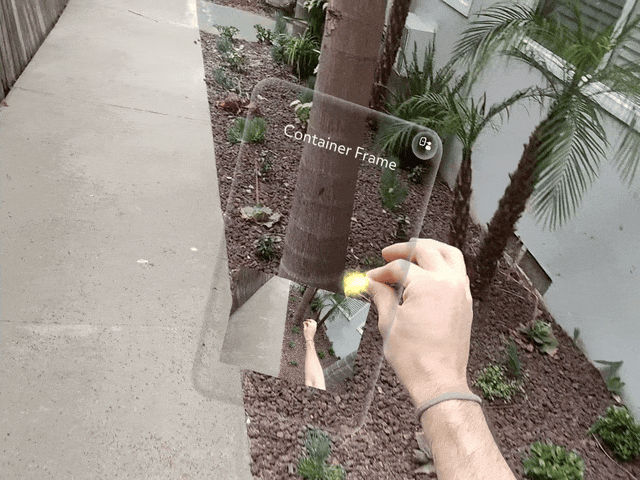

Code Example​

In Lens Studio click "+" in the Asset Browser window, select "General" and create a new TypeScript or JavaScript file. Copy and paste the following code into the file and attach the script to an object in the scene. Add an image component to the empty reference in the inspector.

@component
export class ContinuousCameraFrameExample extends BaseScriptComponent {
  private cameraModule: CameraModule = require('LensStudio:CameraModule');
  private cameraRequest: CameraModule.CameraRequest;
  private cameraTexture: Texture;
  private cameraTextureProvider: CameraTextureProvider;

  @input
  @hint('The image in the scene that will be showing the captured frame.')
  uiImage: Image | undefined;

  onAwake() {
    this.createEvent('OnStartEvent').bind(() => {
      this.cameraRequest = CameraModule.createCameraRequest();
      this.cameraRequest.cameraId = CameraModule.CameraId.Default_Color;

      this.cameraTexture = this.cameraModule.requestCamera(this.cameraRequest);
      this.cameraTextureProvider = this.cameraTexture
        .control as CameraTextureProvider;

      this.cameraTextureProvider.onNewFrame.add((cameraFrame) => {
        if (this.uiImage) {
          this.uiImage.mainPass.baseTex = this.cameraTexture;
        }
      });
    });
  }
}
