Portrait Relighting

Portrait relighting introduces the ability to change the light and background of input photos, as well as adding custom lighting to photos. This allows for users to place themselves into virtual environments and enhance the photorealism of 3D assets.

Portrait Relightening feature is implemented as a custom component that creates a Post Effect object in scene that reacts to the scene lighting.

Installing the Portrait Relighting Custom Component

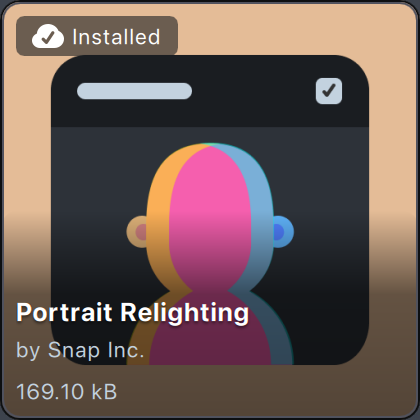

You can find the Portrait Relighting Component in Lens Studio Asset Library.

Click on the Install button to make it available in your Lens Studio project.

Adding to Scene

In a new Lens Studio project, create a new Scene Object or new Screen Transform.

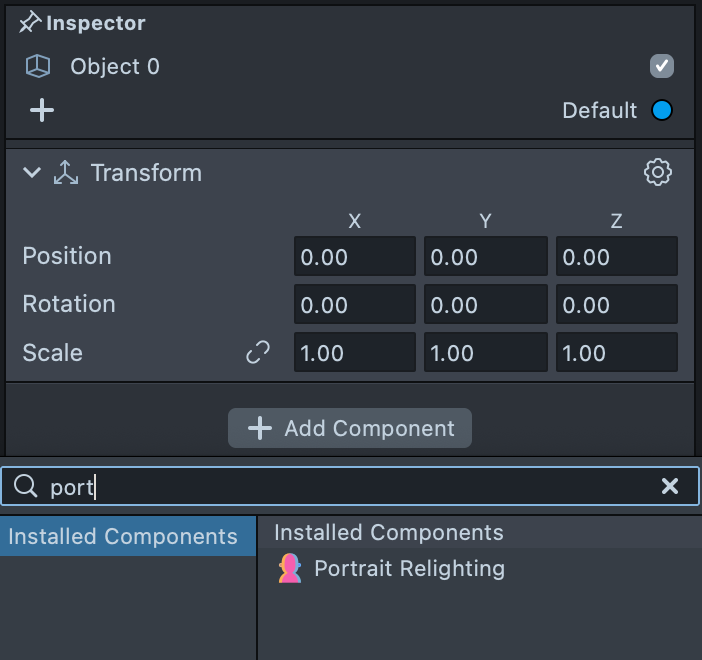

With the newly created object selected, click on the Add Component button in the Inspector Panel and select Portrait Relighting.

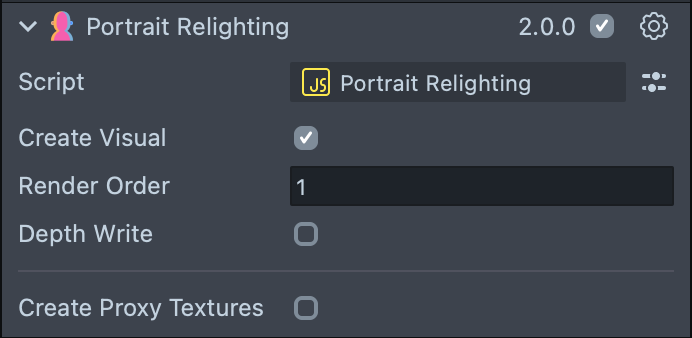

Make sure that the Create Visual checkbox is checked and that the Render Order is set to 1.

By default, when the Create Visual checkbox is checked, the Portrait Relighting component will automatically generate a Post Effect component in the scene. Material used for this Post Effect will react to the lights in the scene.

Please note that this component is meant to be used on the portrait camera view only, please make sure to have a Person preview image or video selected.

Adjusting Lights

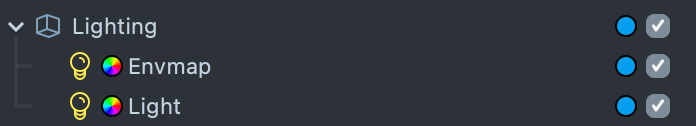

A new lens studio project usually has default lighting set-up that looks like this:

You can make some adjustments to make your Portrait Relighting effect look better.

Select the Light Scene Object. Rename it to Ambient Light. In the Inspector Panel, change the Light Type from Directional to Ambient and adjust the Intensity slider to 0.2. Feel free to play with the Color and Intensity parameters to see how the effect responds to the Light settings.

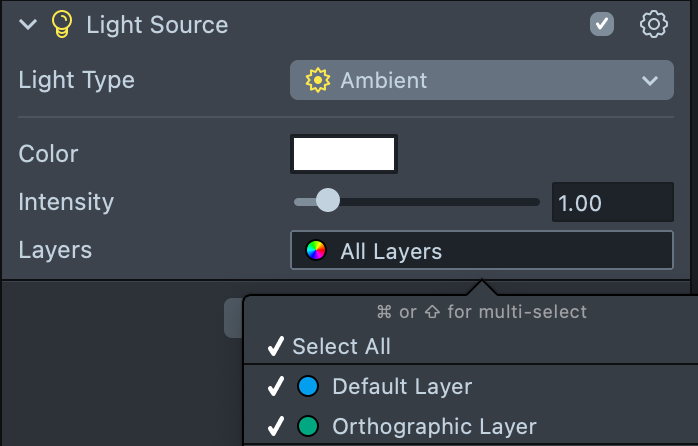

Make sure the Layers setting of the Light components is set to include the same Render Layer that your Portrait Relighting component is on. This can be easily verified by looking at circular color indicators on the right-hand side of the Inspector Panel.

Currently the Portrait Relighting Component supports Envmap, Ambient, Point and Directional types of light sources. Spotlight is NOT supported.

You can experiment with adding more light sources to get different results:

1. Click on the + button in the Scene Hierarchy panel and select Light. Rename this new light to Point Light.

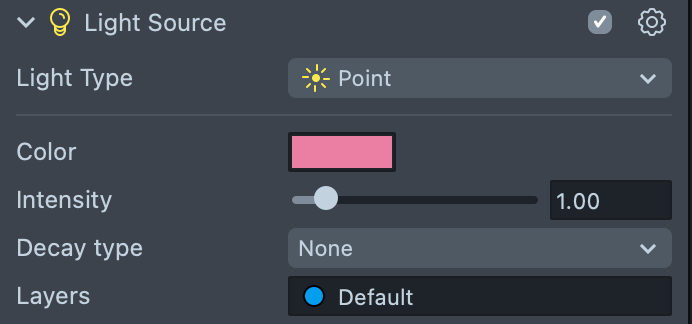

2. In the Inspector Panel, set the Light Type to Point, set the position to 0, 0, 20, and change the color parameter to the color of your liking.

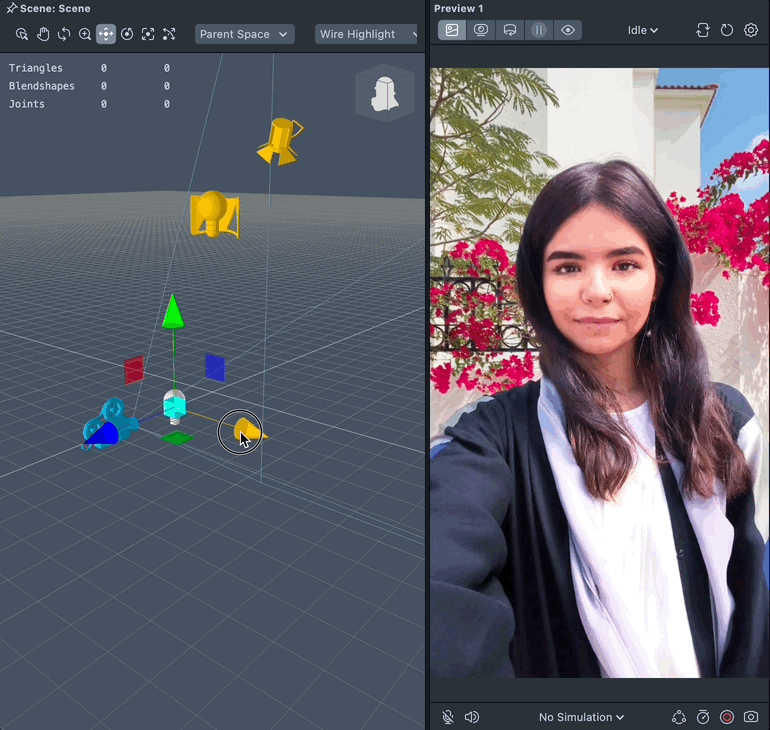

Try experimenting with the placement of the Point Light. In the Scene Panel, click on the Point Light. If the Move Tool doesn’t appear, press the W button on your keyboard to turn it on. Play around with moving the Point Light on the X (red) and Y (green) axes. Notice how the lighting changes in the Preview Panel.

Creating and Using Proxy Textures

The Portrait Relighting Component is built upon a ML model that produces several output textures which can be used to build custom materials. They are:

• Albedo: A full screen texture with normalized light values
• Normals: A full screen normals texture
• Opacity: A full screen portrait segmentation texture

The Create Proxy Textures setting allows you to plug in textures into the Portrait Relighting Component. The easiest way to do this is to use Proxy Textures (empty textures).

You can also assign textures through scripting by assigning control property of one texture to another: destinationTexture.control = sourceTexture.control

Let’s go through the steps to add Proxy Textures to the Portrait Relighting Component:

1. Select the Scene Object with the Portrait Relighting Component and enable the Create Textures checkbox.

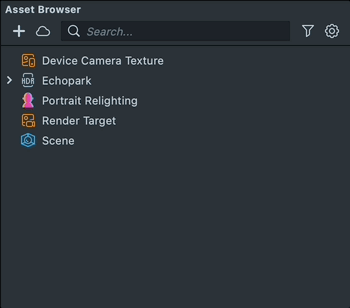

2. In the Asset Browser panel, click the + button and type in Proxy Texture. Press Enter to add a Proxy Texture to the Asset Browser panel.

3. Rename this Proxy Texture to Albedo Texture.

4. Repeat steps 2 and 3 two more times, and name the new Proxy Textures Normal Texture and “Opacity Texture”, respectively.

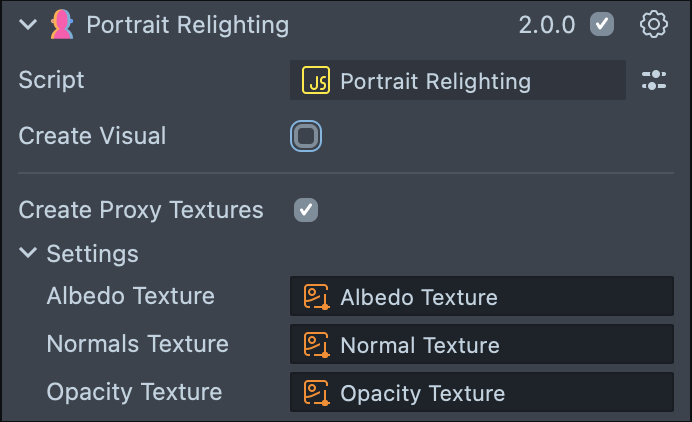

5. Select the Portrait Relighting Custom Component in the Inspector Panel. Drag and drop the newly created Proxy Textures from the Asset Browser panel into the corresponding inputs in the Inspector Panel.



Now you can use these textures in your own materials as usual.

Building Example Material

You can start by building a simple material using the Proxy Textures that we created previously.

First, select the Portrait Relighting Component and disable Create Visual.

You should now see that the Portrait Relighting effect is no longer visible in the Preview Panel. Now you will set up a custom Post Effect where we will input the Albedo, Normal, and Opacity Proxy Textures:

1. In the Asset Browser panel, click the + button, type in Empty Material, and Add an Empty Material into your project.

2. Double click on the newly created Empty Shader to open up the Graph view. There should only be one node in the graph, the Shader node.

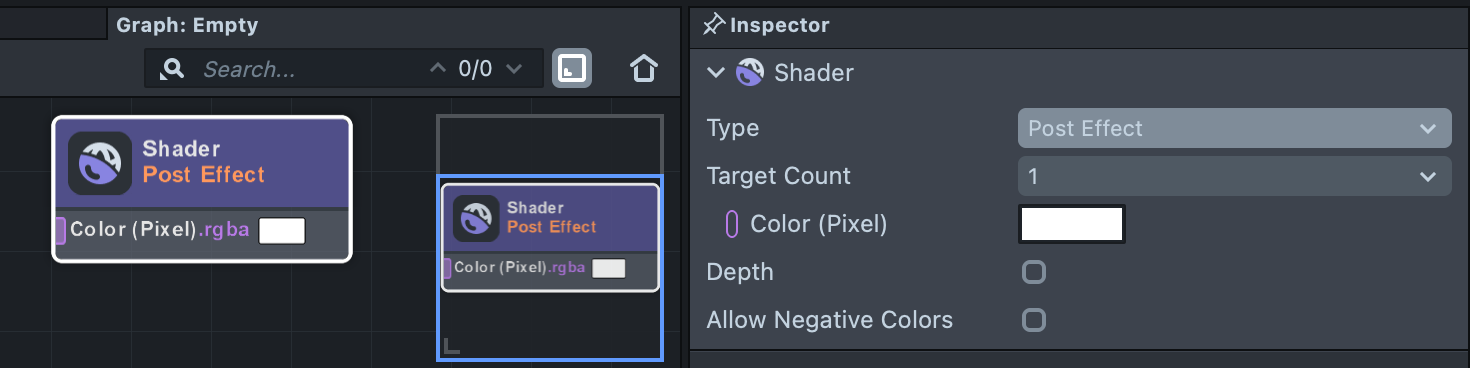

3. Select Shader node to reveal the properties in the Inspector Panel.

4. Change Type from 3D to Post Effect.

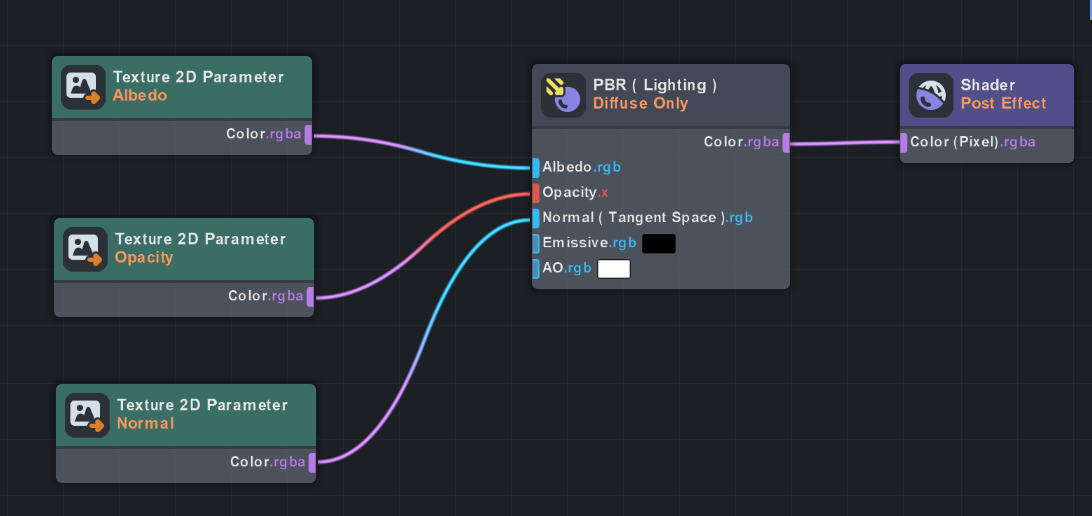

5. Right click on some empty space in the Material Editor, click on Add Node, type in PBR and press Enter.

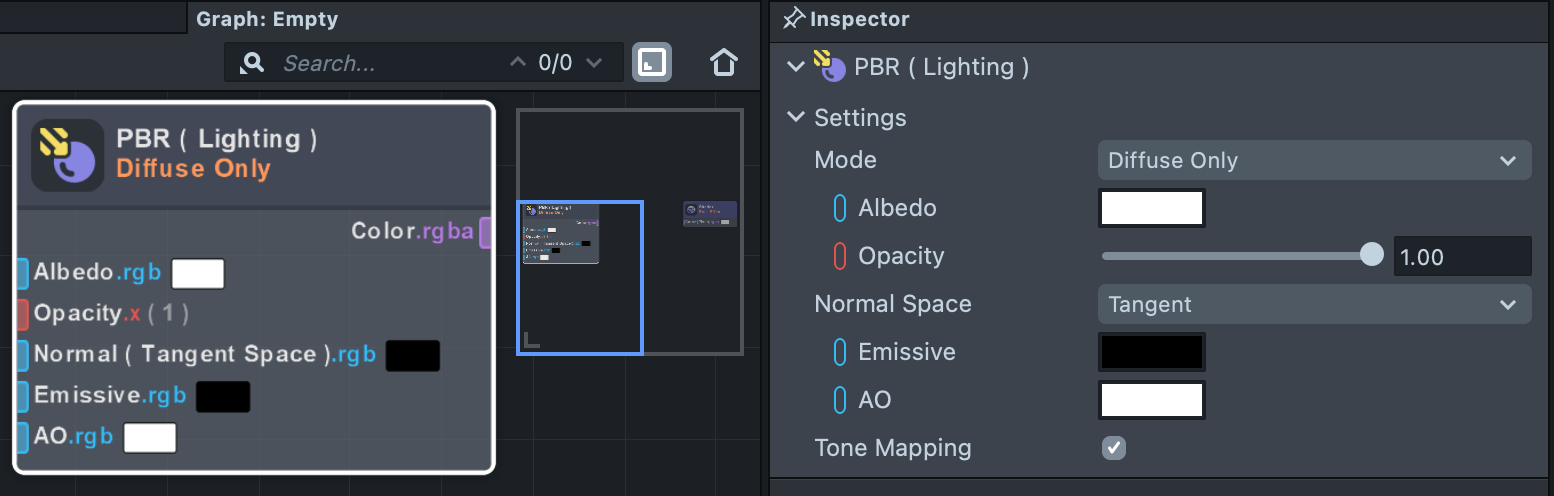

6. Click on the new PBR node. In the Preview Panel set Mode from Diffuse and Specular to Diffuse Only.



7. Add three Texture 2D Parameter Nodes. Using the Preview Panel, rename the Nodes to Albedo, Opacity, and Normal, respectively.

8. Connect the Texture 2D Parameter nodes to their corresponding slots in the PBR Node.

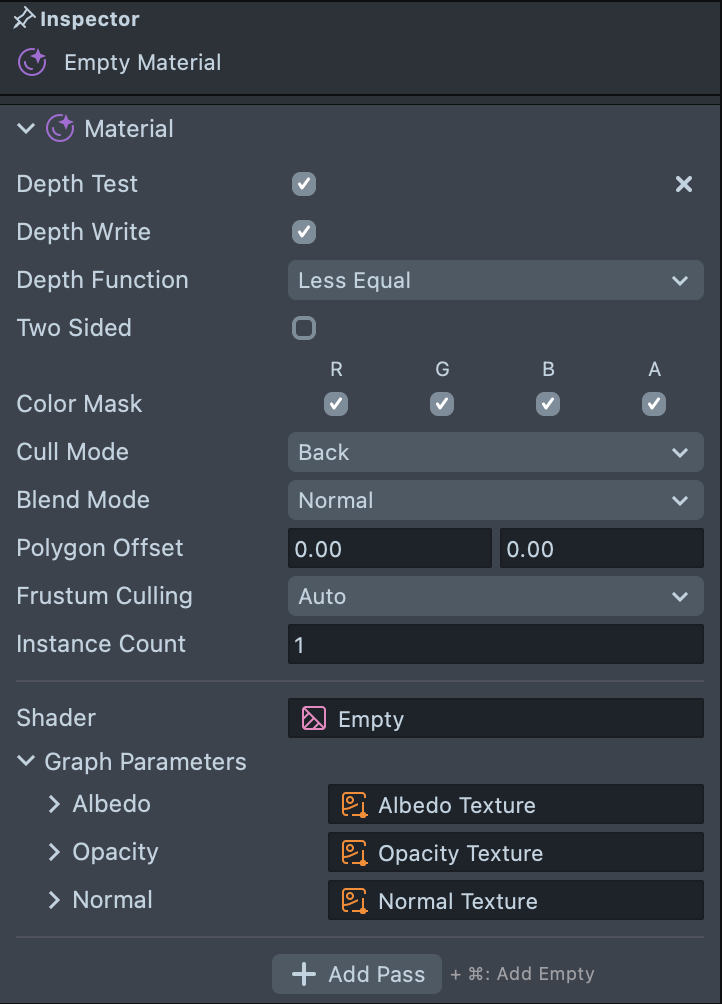

9. Assign Albedo, Opacity, and Normal textures to the Material and change the Blend Mode from Disabled to Normal.



Now that the Post Effect Material is complete, you can apply this Material to our Scene.

1. In the Scene Hierarchy panel, right click on the Camera and create a new Scene Object.

2. Rename the new Scene Object to Relighting Post Effect.

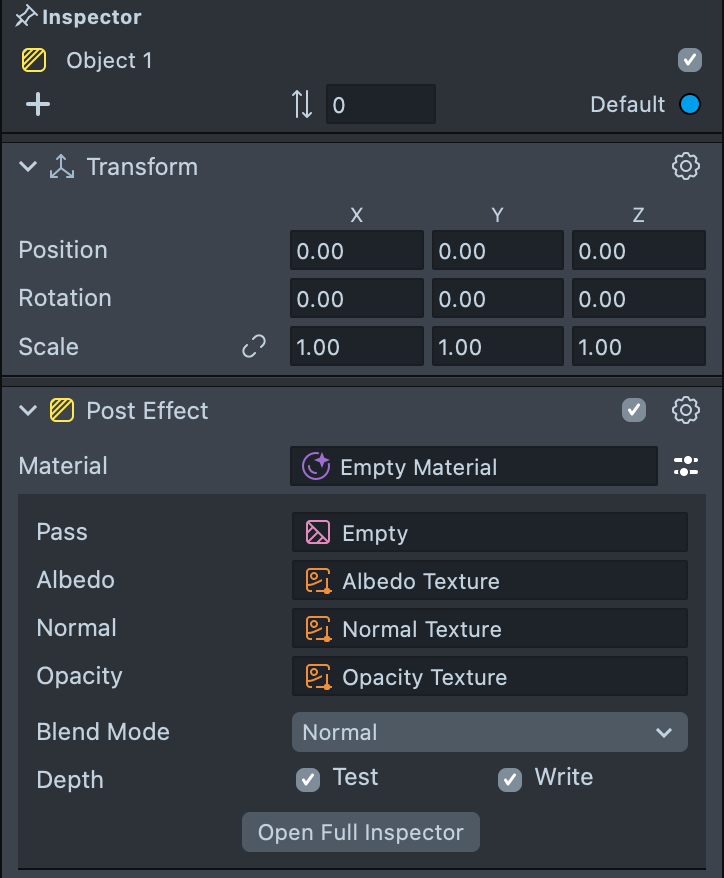

3. With Relighting Post Effect selected, click on + Add Component in the Inspector Panel and add a new “Post Effect”.

4. Drag and drop the Portrait Relighting Material into the Material slot on the Post Effect Component.



Congrats! You now have a Post Effect Material that uses the Proxy Textures generated by the Portrait Relighting Component. Use this Material as a jumping-off point for more advanced effects.

Check out Asset Library for more examples!

Please note that this Post Effect is a 2D Full Screen effect, and in order to overlay it with different 2D and 3D objects you will need to create multiple cameras. The next section will provide an example of setting up a complex scene with 3D head attachments and different types of Light sources.

Portrait Relighting With Lights Asset

In the previous sections, You have already walked you through creating a Portrait Relighting effect from scratch. Now, let’s take a look at the Portrait Relighting With Lights Asset.

Find the Portrait Relighting With Lights Asset asset in the Asset Library and import it into your project. Click here to learn more about how to use assets in the Asset Library. Once you import the asset from Asset Library, you can find the package in the Asset Browser. Follow the instructions and drag the prefab Portrait Relighting With Lights__PLACE_IN_SCENE into Scene Hierarchy to create a new Scene Object and add Layer 1 to Camera Render Layers.

You can right-click and select Unpack for Editing from the drop-down menu to unpack all assets stored in the bundle. Click here to learn more about Asset Packages. Once you unpack the package, you can then edit its content.

The asset demonstrates how to create a simple lighting setup using an Environment Map and an Ambient Light. Try adjusting the Envmap [EDIT ME] Light Source with a new Environment Map:

1. Make sure that Envmap [EDIT ME] is selected in the Scene Hierarchy panel
2. Add a different Diffuse and Specular map to the Light Source component of the Envmap [EDIT ME] by dragging and dropping a new Diff and Specular file found in the Asset Browser panel > Environment Maps.
3. Adjust the Rotation slider. Notice how the lighting changes when you do so.

Now, let’s add a new Directional Light to this example. Look at the [ADD LIGHT] Scene Object in the Scene Hierarchy panel for instructions on how to do so.

1. Create a new Scene Object that is a child of the Lights - Simple Scene Object.
2. Rename the new Scene Object to Directional Light.
3. With Directional Light selected, click on + Add Component in the Inspector Panel. Add a new “Light Source”.
4. Change Light Type to Directional.
5. Click on the Layers dropdown and make sure that the Layer 1 Layer is selected.
