Segmentation

The Segmentation Template lets you easily segment a portion of the camera and replace it with an image, tiled image or post effect coloring. Multiple segmentation types are supported including portrait background, hair, sky and more.

Tutorial

Guide

Select Segmentation Controller Object

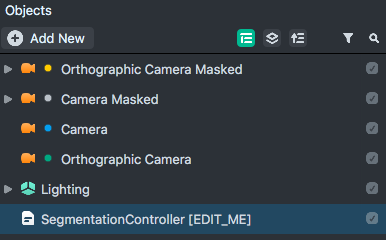

To tune the Segmentation Template, select the SegmentationController [EDIT_ME] object in the Objects panel and then tune its settings in the Inspector panel.

Set Segmentation Texture

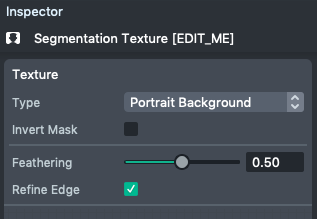

To modify what part of the image is segmented, modify the segmentation texture resource found in the Resources panel. To do this, select the Segmentation Texture [EDIT_ME] object, and in the Inspector panel, modify its settings.

Modify the Type dropdown to select the part of the image that will be segmented. You can segment:

  • Portrait Background
  • Portrait Hair
  • Portrait Shoulder
  • Portrait Head
  • Portrait Head
  • Sky

All of the segmentation textures can be inverted by enabling the Invert checkbox.

You can change how the borders of the segmentation looks by modifying the Feathering and Refine Edge option.

Background Color

To enable a solid background color, make sure the Use Background Color checkbox is checked.

Once enabled, you’re able to tune the solid background color and alpha. This background color will be masked by your selected Segmentation Texture.


To enable a segmentation masked image, make sure the Use Image checkbox is checked.

Set Texture

After selecting you image type, you’ll want to assign the image texture. To add a texture to Lens Studio, drag and drop a PNG or JPG to the Resources panel. Alternatively, select + -> Import Files from the Resources panel. Then, click the Image Texture field and assign it to your newly imported texture.

Set Alpha

You have control for how transparent your image will be via the Image Alpha slider.

Set Blend Mode

You can set your image blend mode using the Image Blend Mode drop down. Available blend modes are Normal, Screen & Multiply.

Tiled

When the Tiled checkbox is selected, your image is tiled. This tiled background will be masked by your selected segmentation texture.

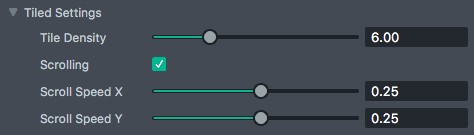

The following options in the Inspector panel allow you to configure the tiling.

  • Tile Density - How dense the tiled pattern is. Smaller number = smaller tiles. Bigger number = bigger tiles
  • Scrolling - If enabled, the tile pattern will play a scrolling animation
  • Scroll Speed X - How fast the tile pattern scrolls in the horizontal direction
  • Scroll Speed Y - How fast the tile pattern scrolls in the vertical direction

Non-Tiled

When the Tiled checkbox is not checked, your image texture will be used as a single background image. This image will be masked by your selected segmentation texture.

When using a non-tiled image, you can configure how the image fills the screen by selecting from the Fill Mode dropdown.

Post Effect

To enable post effect, make sure the Use Post Effect checkbox is checked.

When enabled, a post effect will be applied to the camera feed, masked by your selected segmentation texture.

You can change your post effect texture by selecting the field next to Post Effect Texture in the Inspector panel. Then select a post effect resource. To add a new Post Effect type, select + -> Post Effect Textures in the Resources panel or create your own by following the Post Effect guide.

You can also tune the transparency of the applied post effect.

Adding Additional Objects

Not Segmented

To add an additional object that lives on top of the segmentation mask (not segmented). Simply use + from the Objects panel as you normally would. As long as the objects are set to either the Default or Orthographic Camera layers, the object will not be segmented by the mask.

Segmented

To add an additional object that is segmented, you need to assign your object to the appropriate camera render layer. For perspective camera objects, set your object’s render layer to Masked. For orthographic camera objects, set your object’s render layer to Orthographic Masked.

Previewing Your Lens

You’re now ready to preview your Lens experience. To preview your Lens in Snapchat, follow the Pairing to Snapchat guide.

Please refer to the guides below for additional information:
