Video

Lens Studio supports video import. This guide will walk you through how to work with videos in Lens Studio.

Video Import

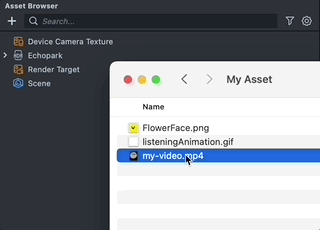

You can import a video by dragging and dropping the video into the Asset Browser panel.

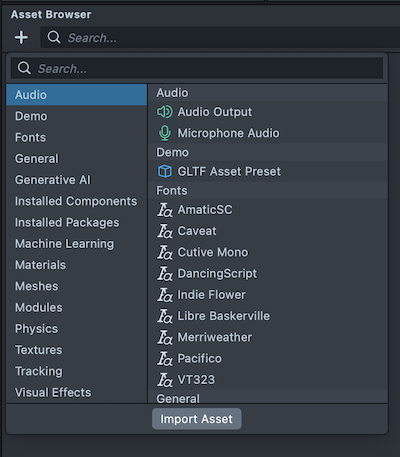

You can also use + -> Import Asset and choose the video you want to import.

Supported Video Format

Lens Studio supports videos with the following requirements:

  • File format: MP4
  • Codec: H.264 / AVC
  • Resolution: Your video resolution needs to be greater than 16 x 16 and smaller than 1280 x 1280. In both dimensions resolution needs to be multiples of 16
  • Size: Less than 10 MB

Use Video As Texture

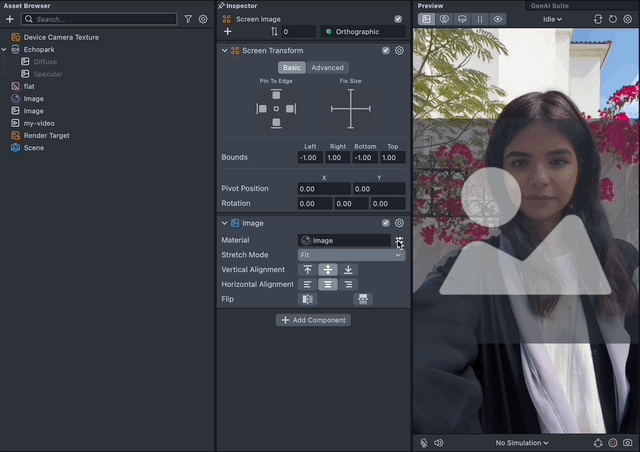

When you import a video into Lens Studio, it automatically converts it to a Texture Asset. It can be used the same way as static textures or animated textures. For example, it can be a texture for an Image or Screen Image.

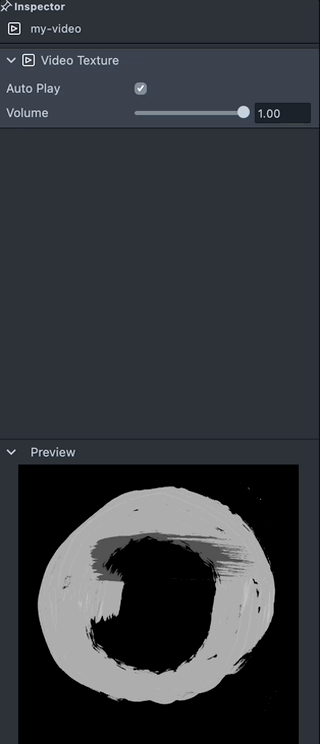

In the Inspector panel, you can view its properties and adjust the volume. Check the Auto Play checkbox if you want the video to automatically start playing upon opening the Lens. Increase the Volume slider if you want the video to also playback sound.

Scripting Video Playback

Scripting unlocks more complex playback control beyond  Auto Play and  Volume. For more information on scripting video playback, see the VideoTextureProvider scripting API reference.

Please refer to the guides below for additional information:
