Bitmoji Head

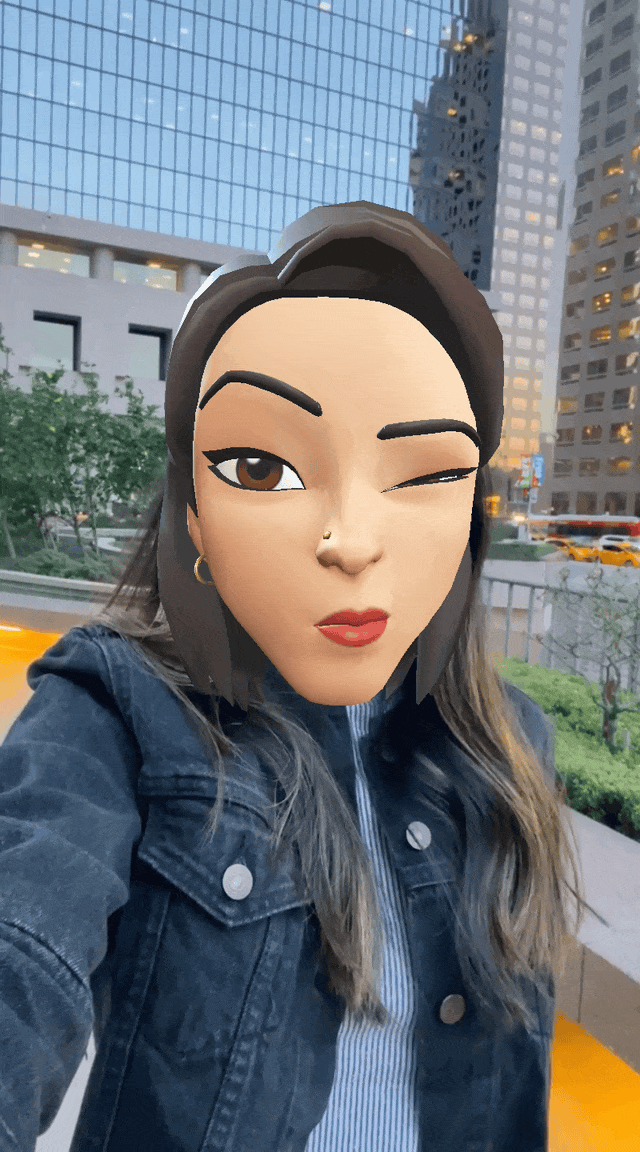

Bitmoji Head is a custom component designed to animate the Bitmoji Head to mimic a Snapchatter's facial expressions.

Installing the component

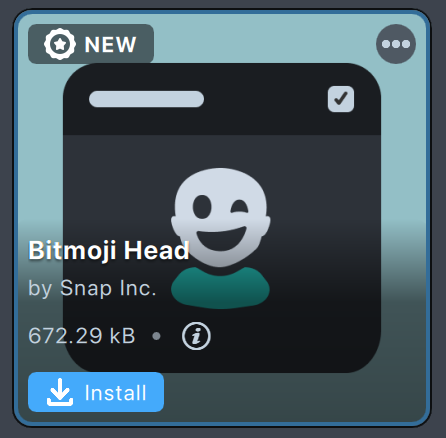

The Bitmoji Head custom component is available in LS Asset Library. To install, click Install
or Update
, then add it to the Asset Browser

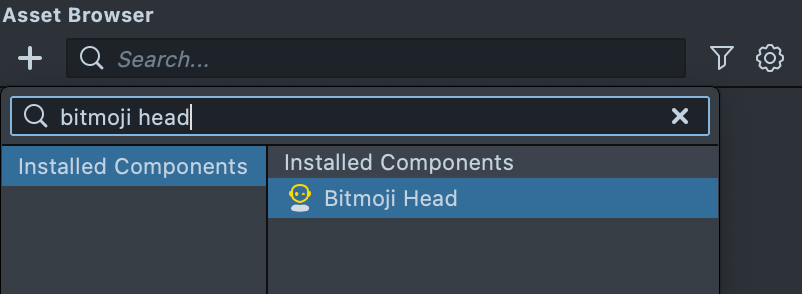

panel by clicking the +
button and searching for Bitmoji Head
.

Adding the Bitmoji Head to the scene

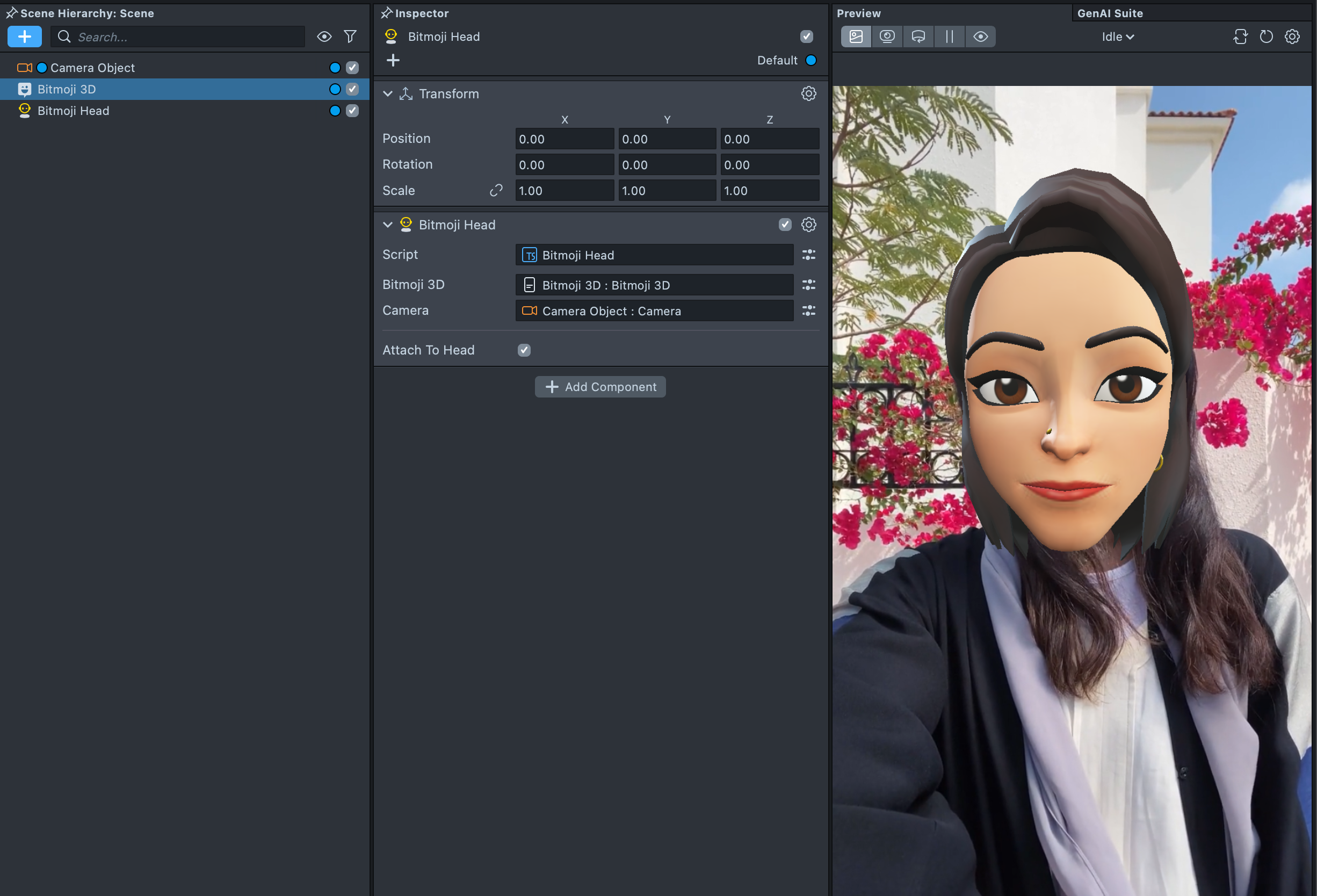

Drag and drop the Bitmoji Head
asset into the Scene Hierarchy
panel to create a new scene object with the necessary components attached.
Ensure that the Bitmoji Head component is set to the same render layer as the Bitmoji 3D component.
The Bitmoji Head custom component includes its own lighting sources. If other Lighting Source components in the scene share the same render layer, the Bitmoji may appear overlit.

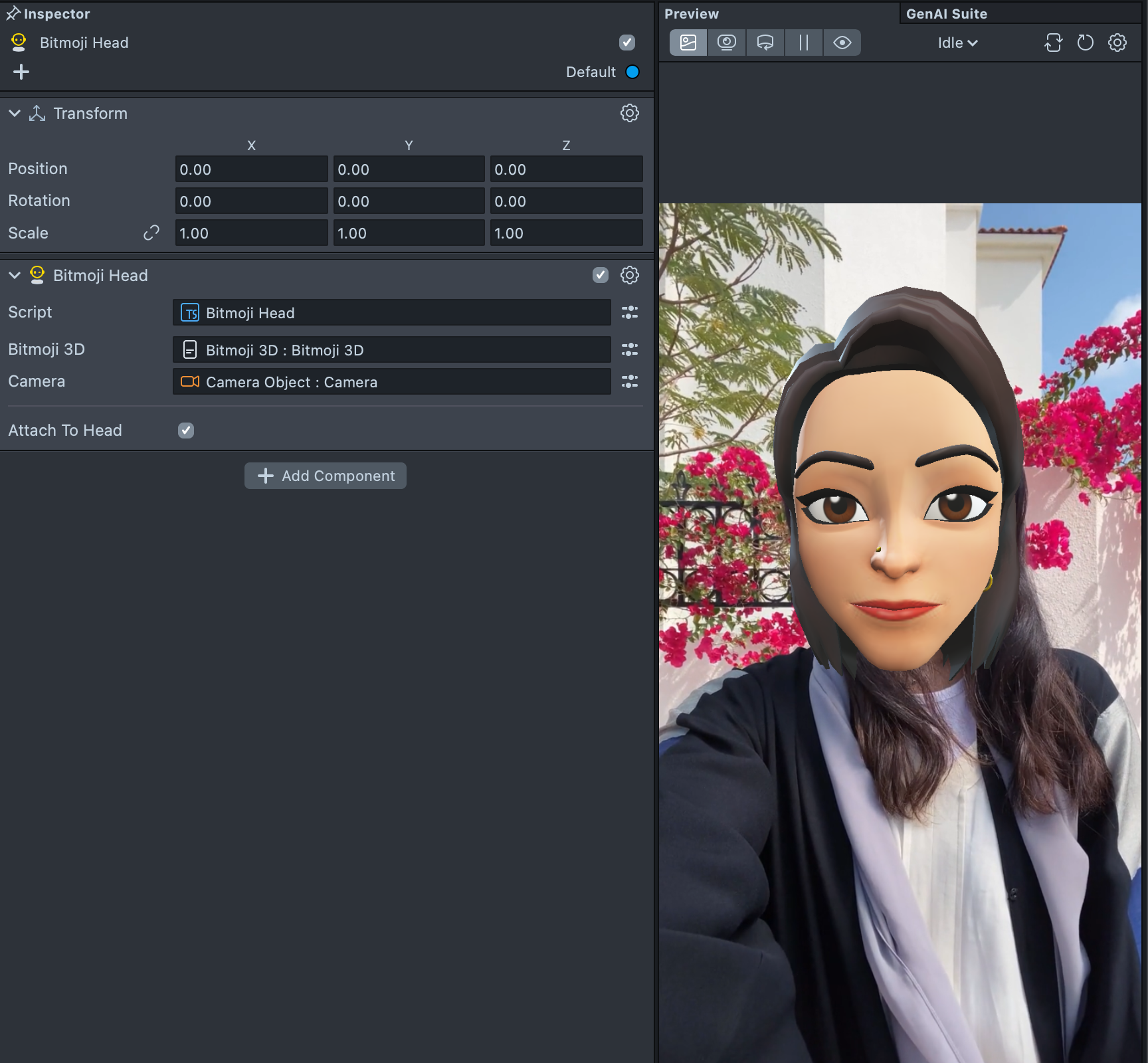

Component Inputs

- Bitmoji 3D - the Bitmoji 3D custom component. Learn how to set it up here.
Ensure that Bitmoji 3D object is placed in the scene above the Bitmoji Head object
- Camera - the Camera where the Bitmoji 3D renders.
- Attach To Head
- If enabled, the
Bitmoji Head
will automatically attach to and follow the user's head movements. - If disabled, you will need to manually position the
Bitmoji 3D
component within the scene as needed.
- If enabled, the
- Rotate Head (only available if
Attach To Head
is disabled)- If enabled, the Bitmoji's head will rotate in sync with the user's head.
- If disabled, the rotation of the Bitmoji's head will remain static.
