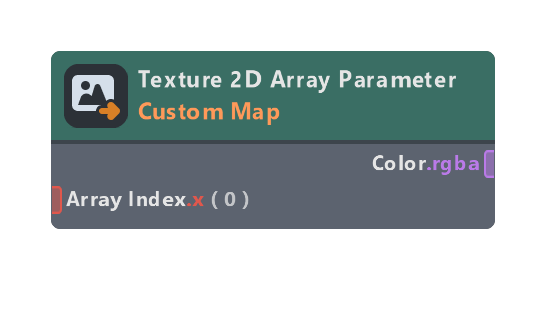

Nodes > Inputs > Parameters > Texture 2D Array Parameter

Exposes a texture array parameter on the material. This value can be modified through the Inspector panel or by script at runtime.

In addition, this node automatically samples the texture and returns the color value.

Inputs

Name	Type	Description
UV Coords	float	Coordinates to sample the texture at
Array Index	float	Which texture object in the array to sample
LOD	float	Which LOD level to sample from. Only works if Mipmaps are enabled in the texture parameters in the material inspector

Outputs

Name	Type	Description
Color	color	Sampled color of the texture
Texture Size	float	Dimensions of the texture (width, height), in pixels
Pixel Size	float	Width and height of a pixel (1/texture size)

Properties

Name	Type	Description
Title	string	Title used for this parameter when viewing the Material in the Inspector
Script Name	string	Variable name scripts can use to access this parameter through the Material's mainPass
Type	dropdown	If Normal Map is selected, the values will be remapped from [0 -> 1] to [-1 -> 1], which is more suitable for normal map textures.
UV Coords Mode	dropdown	Choose what source to use for the UV Coordinates. If "UV Coord 0" or "UV1 Coord 1" are selected, the respective surface UV set will be used. If "Custom" is selected, the UV Coords input will be exposed and used instead
LOD Mode	dropdown	If set to "Auto", LOD will be handled automatically. If set to "Custom", the LOD input will be exposed and used instead
Expose Size Outputs	bool	If enabled, the Texture Size and Pixel Size output ports will be exposed
Group	string	If not empty, specifies the parameter group this parameter is shown in
Sort Index	int	Specifies the order this should be listed relative to other parameters
Tooltip	string	Tooltip message shown on mouse hover
