Sunglasses

The Sunglasses asset allows users to create customizable sunglasses. The asset comes with five different sunglasses types. The asset allows you to tune the material, color and lenses of the sunglasses. This guide covers how to customize the sunglasses and add a custom reflection to the lenses.

Find the Sunglasses asset in the Asset Library and import it into your project. Click here to learn more about how to use assets in the Asset Library.

Import Asset​

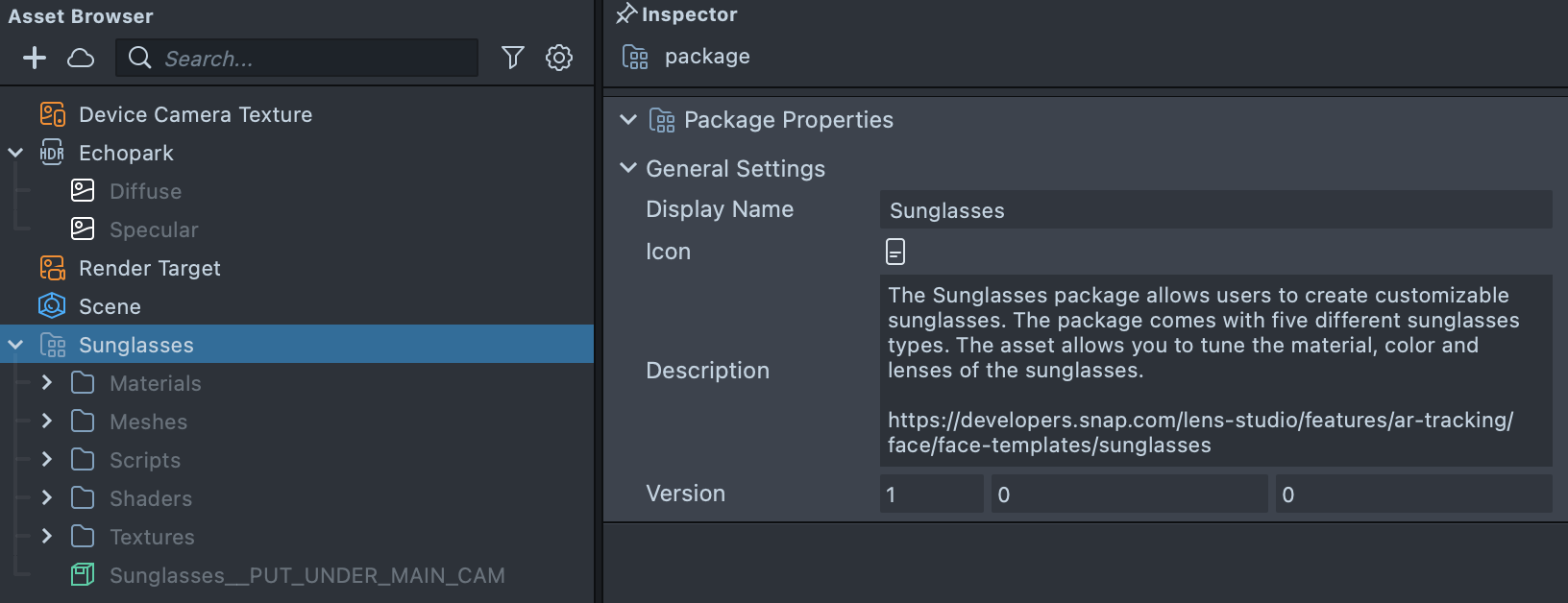

Once you import the asset from Asset Library, you can find the package in the Asset Browser.

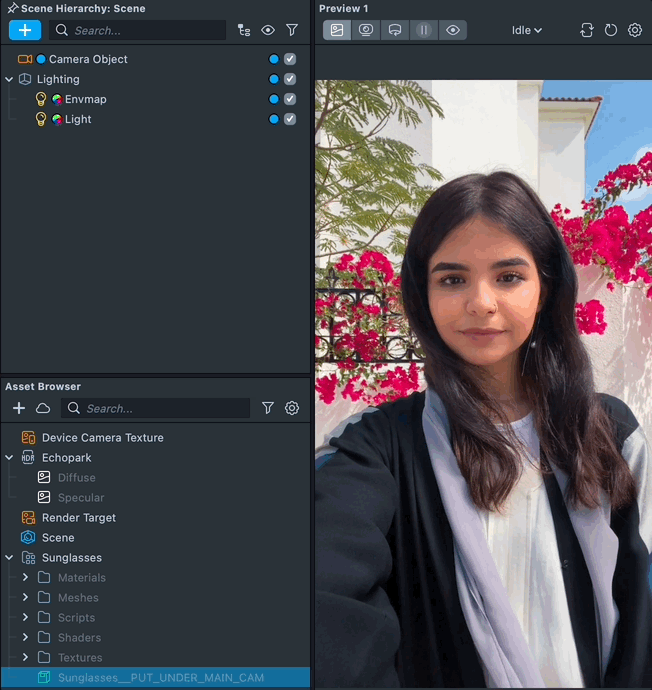

Follow the instructions and drag the prefab Sunglasses__PUT_UNDER_MAIN_CAM into Scene Hierarchy to create a new Scene Object.

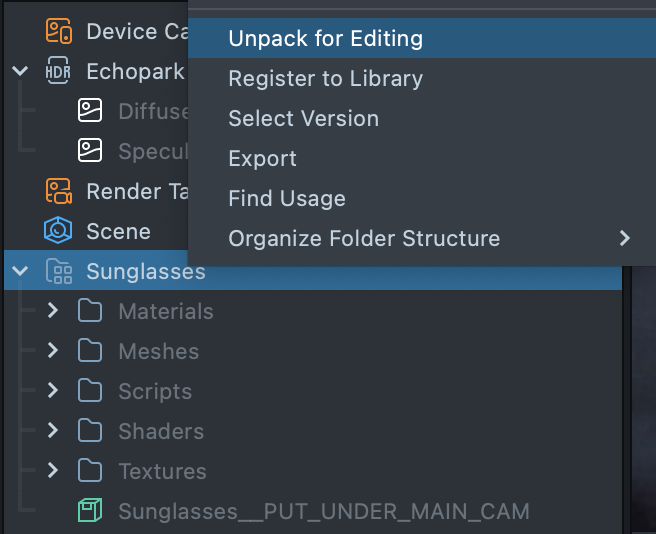

You can right-click and select Unpack for Editing from the drop-down menu to unpack all assets stored in the bundle. Click here to learn more about Asset Packages. Once you unpack the package, you can then edit its content.

Customize the Sunglasses​

To customize the sunglasses, select the Sunglasses Controller [EDIT_ME] object in the Scene Hierarchy panel and adjust its settings in the Inspector panel.

The sections below walk through each customizable setting.

Coloring the Frame​

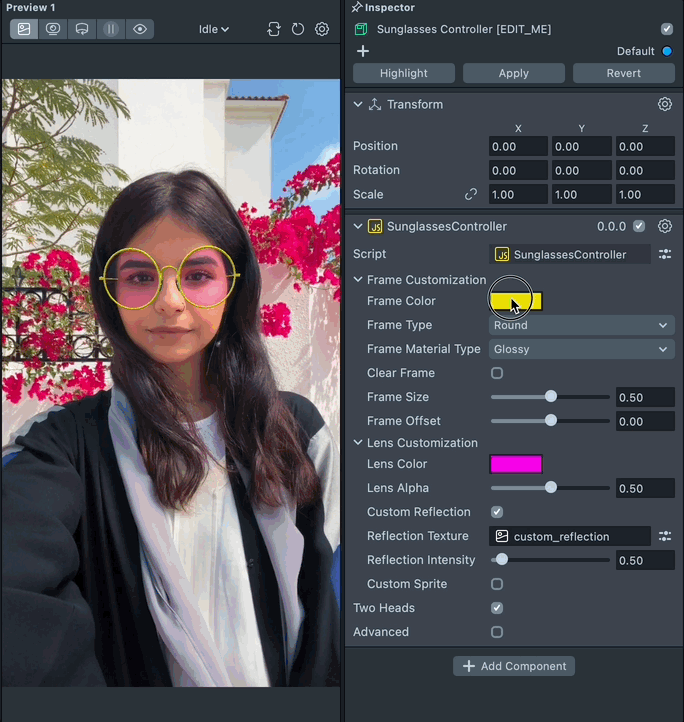

You can edit the frame’s color in the Inspector panel by selecting and editing the Frame Color property.

Changing the Frame Type​

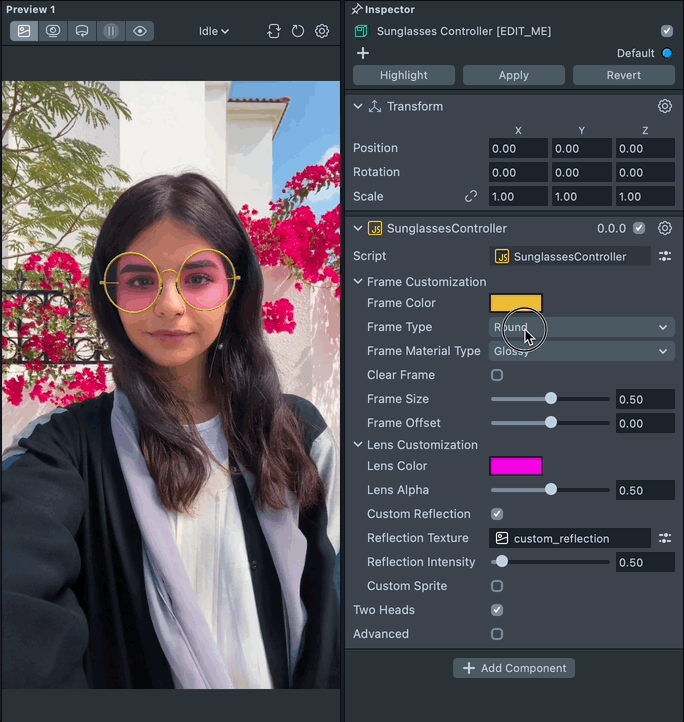

Choose a frame type by selecting a frame from the Frame Type dropdown menu.

Changing the Frame Material​

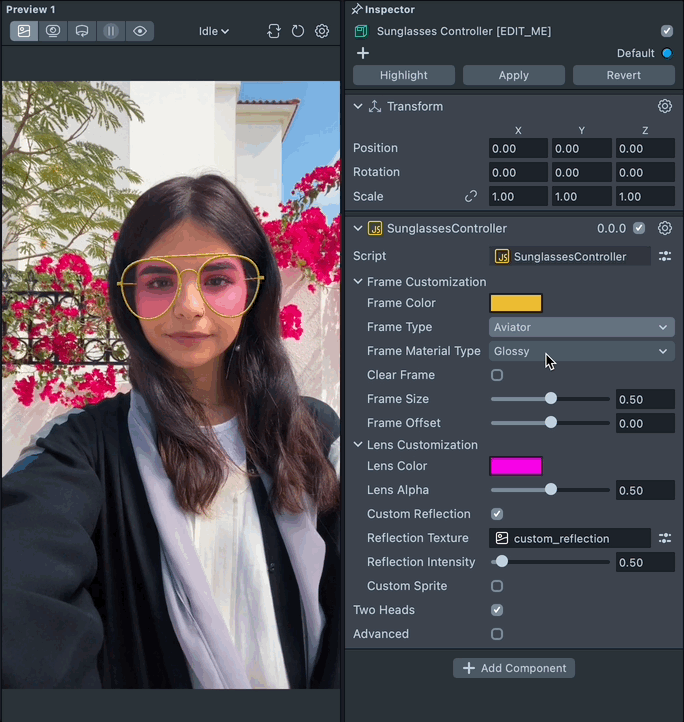

Change the frame material by selecting a material from the Frame Material dropdown menu. The available frame materials are Matte, Metallic and Glossy.

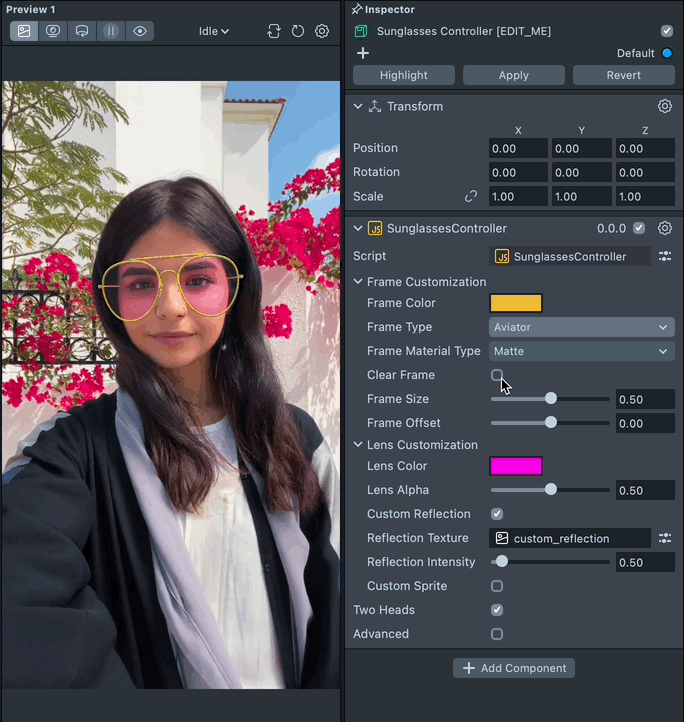

If you wish to have a transparent frame, check the Clear Frame checkbox. When checked, the Frame Alpha slider allows you to adjust the amount of transparency.

Adjust the Frame Size and Position​

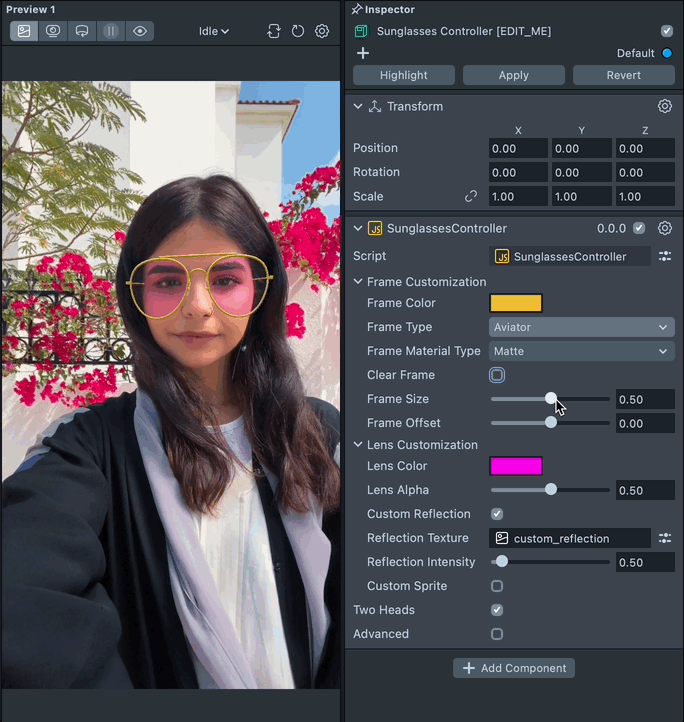

You can adjust the frame size using the Frame Size slider and adjust the frame position using the Frame Offset slider.

Coloring the Lenses​

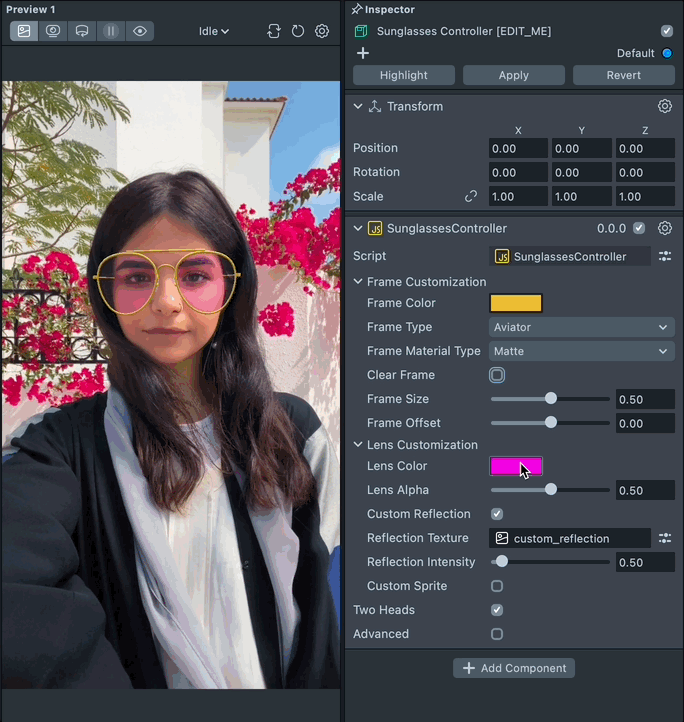

You can edit the color of the lenses in the Inspector panel by changing the Lens Color property.

For more transparent Lenses, adjust the Lens Alpha slider.

Adjusting the Lens Roughness​

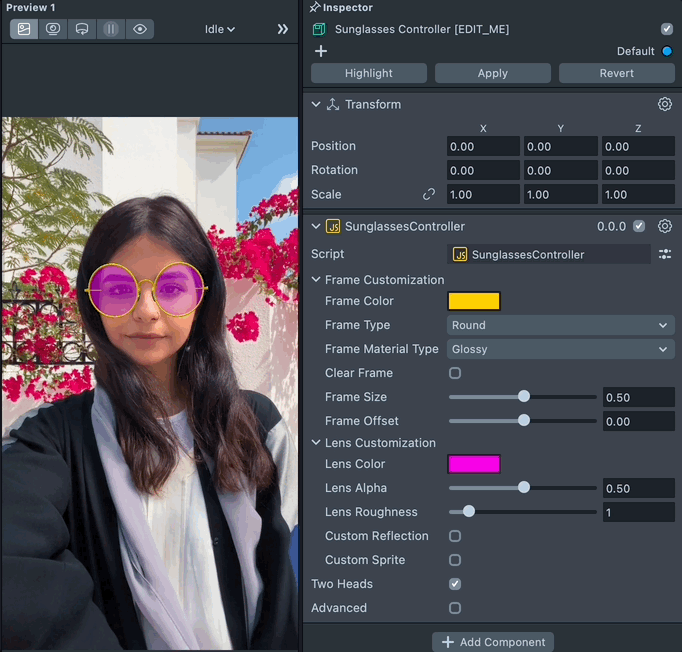

You can adjust the lens reflectivity by adjusting the Lens Roughness slider.

Custom Reflection​

The Sunglasses template allows you to use a simple 2D image as a custom reflection. To use a custom reflection, enable the Custom Reflection checkbox.

The custom reflection will not be influenced by the environment map

Changing the Custom Reflection​

Edit the custom reflection’s texture by changing the Reflection Texture property to your own custom texture. To import a custom texture into Lens Studio, select + -> Import Files in the Asset Browser panel. Adjust the Reflection Intensity slider to define how prominent your custom reflection is.

Custom Sprite​

A custom sprite can be added to the lenses as well. Unlike the custom reflection, the custom sprites are attached to the frames and rotate with the sunglasses. To enable the custom sprite, check the Custom Sprite checkbox.

Changing the Custom Sprite​

You can change the custom sprite’s texture by changing the Sprite Texture property to a custom texture you’ve imported into Lens Studio.

Make sure the imported sprite texture is not transparent so it can be blended with the lens reflection.

Adjusting the Custom Sprite​

You can adjust the custom sprite’s visibility by changing the Sprite Intensity slider, adjust the custom sprite’s size using the Sprite Size slider and adjust the custom sprite’s position using the Sprite Offset X and Sprite Offset Y sliders.

Changing the Environment Map​

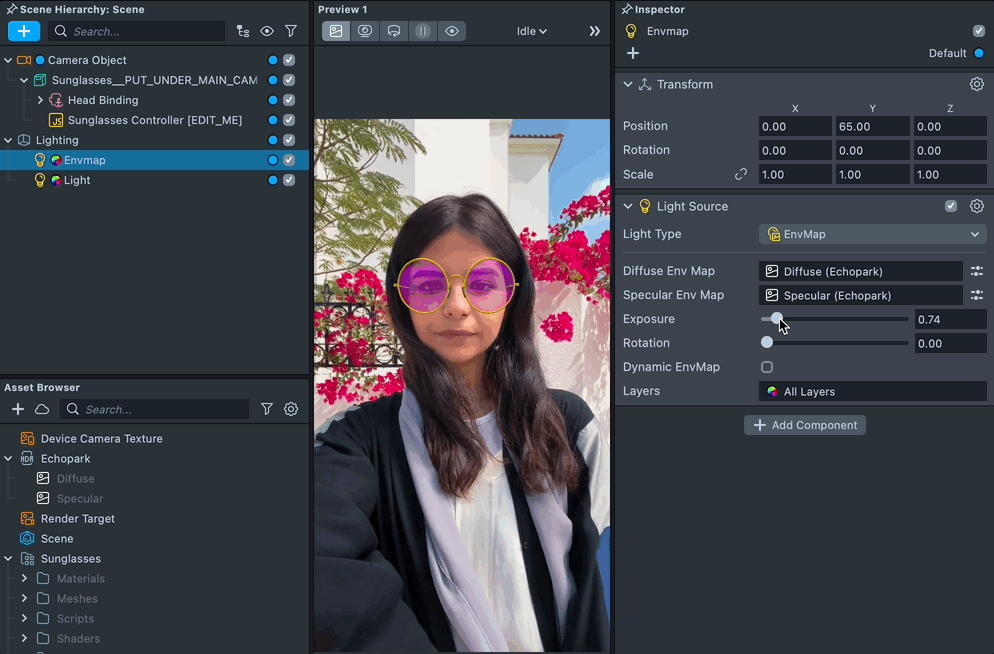

You can change the environment map by changing the Diff Texture and Spec Texture properties to the environment map textures of your choosing. Click on the Envmap Object under Lighting Object. In the Inspector Panel, adjust the brightness of the environment map by changing the Exposure slider and adjust the rotation of the environment map by changing the Rotation slider.

Support for Two Heads​

The Sunglasses controller supports two heads wearing the same sunglasses. To enable two head support, check the Two Heads checkbox.

Previewing Your Lens​

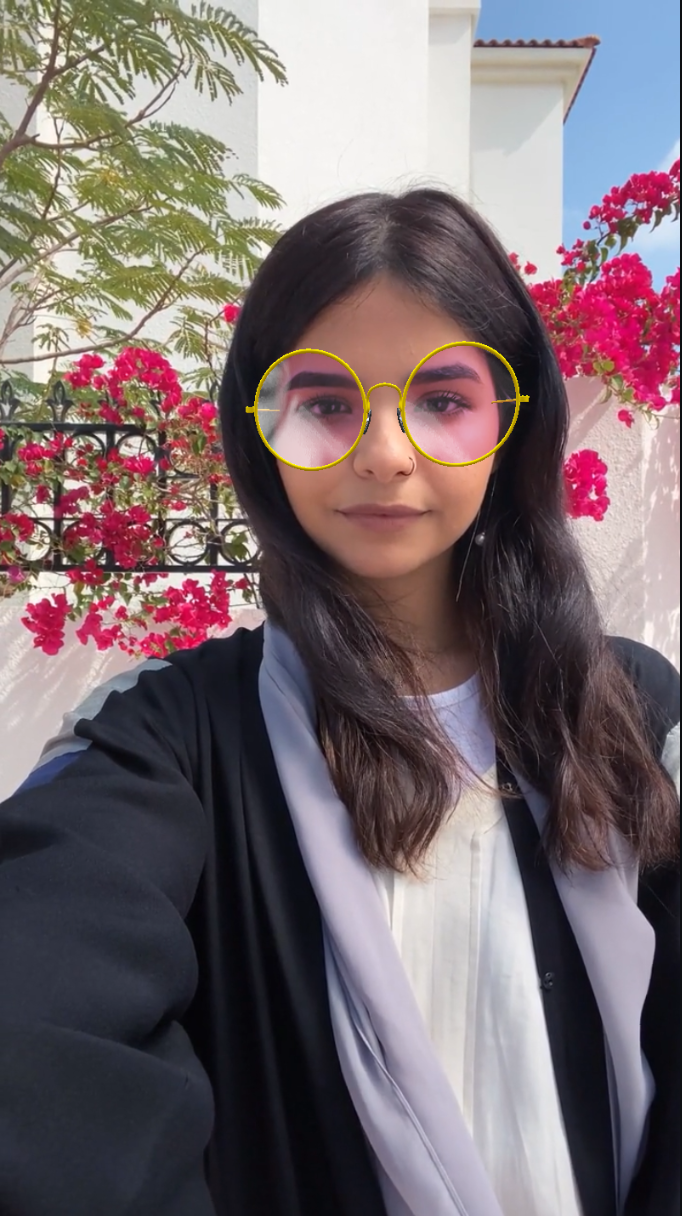

You’re now ready to preview your Lens experience. To preview your Lens in Snapchat, follow the Pairing to Snapchat guide.
